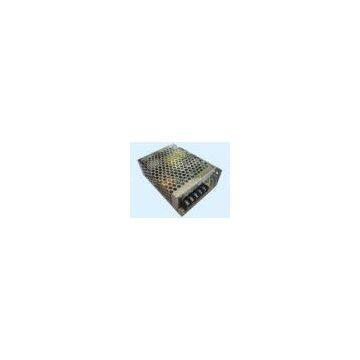

Waterproof Industrial Power Supply 12 Volt For Communication Equipments 50Hz / 60Hz

Waterproof Industrial Power Supply 12 Volt For Communication Equipments 50Hz / 60Hz thumbnail-1
Waterproof Industrial Power Supply 12 Volt For Communication Equipments 50Hz / 60Hz photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Panfore
Place of Origin:
China
Model Number:
PS75-12
Contact Supplier Request Quote Chat Now
Panfore Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Panfore
Place of Origin China
Model Number PS75-12
Delivery Time:15 days
Certification:CE,ROHS, REACH

Waterproof Industrial Power Supply 12 Volt For Communication Equipments 50Hz / 60Hz

Feature:

. Universal AC Input

. No Load Consumption < 0.3W

. Protections: Overload, Short Circuit

. Approved by CE

. 2 Years Warranty

Description :



12V6.25A 75W Industrial Power Supply For Communication Equipments

Electronics Specification :

Input Voltage Range:

90~264Vac

AC current:

2.5A

Frequency:

50 / 60Hz

Inrush Current:

30A / 230Vac

Leakage Current:

<0.3 mA / 240Vac

Output Voltage:

12.0Vdc

Output Voltage Range:

10.80Vdc to 13.20Vdc

Output Current:

6.25A

Output power:

75.0W (Max)

Voltage tolerance:

±5%

Line regulation:

±1%

Load regulation:

±5%

Set up time, Rise time, Hold-up time:

50ms,50ms,20ms

Ripple and Noise Test Condition :

<100 mVp-p

Efficiency:

＞84%

Over current protection:

Over Current limit ≤2.0A (Max) in CC Mode

Output Short Circuit Protection:

Can be Shorted without damage and auto recovery

Environment

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability

Hi-Pot Testing Voltage :

I/P-O/P: 3KVAC, I/P-FG:1.5KVAC；O/P-FG:0.5KVAC 1min

Isolation resistance:

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval:

Certificate

CE

Mechanical Characteristics

Size:

(L)110*(W)78*(H)35mm

Terminal Pin assignment:

Pin 1:  ACL

Pin 2:  ACN

Pin 3:  GND

Pin 4:  Output －V

Pin 5:  Output +V

Remark:

. All parameters are specified at 220Vac input, rated load,25℃ 70% RH ambient;

. Tolerance: includes set up tolerance, line regulation, load regulation,

. Ripple & Noise are measured at 20MHz of bandwidth by using a 30cm twisted-pair wire terminated with a    0.1uf & 47uf parallel capacitor;

. Line regulation is measured from low line to high line at rated load;

. Load regulation is measured from 20%~100% at rated load.

Applications:

widely used in household appliances, IT digital products,  medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment
