Antirust High Density Pallet Racking System detachable Metal Storage Shelf

Delivery Time:20 to 30 days
Certification:ISO9001:2008

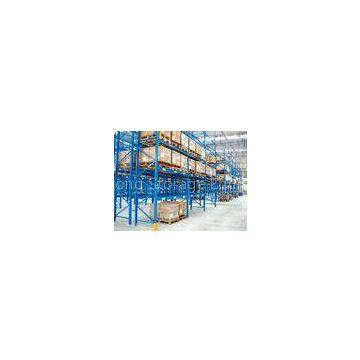

High Density Pallet Racking System detachable Metal Storage Shelf

High density Storage System Heavy Duty Pallet Racking

Quick Detail:

      High density Storage System Heavy Duty Pallet Racking

the most popular and economical form as it provides 100% selective storage can be designed to meet virtually any pallet size or weight can be used in conjunction with all types of lift trucks high strength and durability  Maximizes space use in any warehouse configuration while retaining optimum product accessibility. Powder coat galvanized finish

Description:

      High density Storage System Heavy Duty Pallet Racking

      Selective pallet racking is the most common and cost effective pallet racking system in use today, providing easy accessibility to all products at all times and simple to install. Popular application in most industries requiring instant accessibility of all pallets from Fast Moving Consumer Goods (FMCG) distribution centers to general engineering or trading companies.

      It can be designed to meet virtually any pallet size or weight and can be used in conjunction with all types of lift trucks.

      The system is convenient for a warehouse that needs to store a wide variety of products of varying sizes.

      Another benefit of the selective pallet racking system is the easy accessibility it provides using a conventional forklift. Such accessibility is important if the inventory is rapidly depleted and restocked.

      Our Pallet Racking is specially designed for easy access and flexibility during the storage and retrieval process. Pallet Racking beams come in a variety of sizes and weight capacities. The heavy duty box shape beams have spring loaded safety pins attached to the Pallet Racking beam connectors.

Specifications:

Classification:	Heavy duty Pallet Racking
Loading capacity:	1000-3000 Kg per level
Quality:	Strong and stable
Size:	Customized size
Materials:	High quality steel Q235
Material thickness:	1.5-2.5mm
Upright:	Omega Section
Pitch holes:	pitch 75mm square hole with good safety
Beams:	Box-shape beams or reinforced box-typed beam
Levels:	2~8 levels, customized
Welding:	Good neat welding
Safety Pin:	L shape locking pins
Colors:	Standard Blue & Orange or customized
HS Code	73089000
Maximum Height(Upright/Pillar):	2000mm - 12,000 mm
Max Width/Length(Beam):	Up to 3,900 mm
Max Depth(Upright frame):	Up to 1,500 mm
Max Weight:	1,000kg - 3,000 kg / layer
Mobility:	The height of each beam can be adjusted by 75mm of pitch freely.
Surface finish:	Powder coating which is characterized by surface-smoothly, antirust, anti-corrosive, non-toxic.
Color:	Blue/Orange/Gray/others

Competitive Advantage:

Each pallet can be located and moved individually without interference to other pallets Can be designed to handle virtually any pallet size or weight Accessible by any type of forklift Most cost-effective and versatile of all storage
