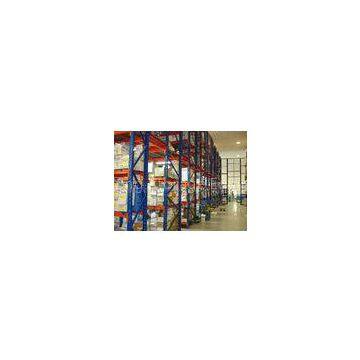

Multilayer 1.5m Depth Selective Pallet Racking System With Powder Coating
Multiple Levels Warehouse Used Pallet Racking
Quick Detail:
Multiple Levels Warehouse Used Pallet Racking
● Good stock rotation
● Good order picking, 100% selectivity
● Average picking rate
● Good product protection
● Making good use of space
● 31% net pallet area ㎡ usage of overall warehouse area (based on the above diagrammatic illustration)
Description:
Pallet Racking shall be integrated unit work, that is, to make packing and weight features as a group to determine the type , specifications, size of pallet, mass of unit load with pallet and stacker (Single weight generally within 2000kg)
Thus confirm the span, depth, and interlayer space of unit racking.
Under the edge of the warehouse root, high effective height and the forking height of the forklif determin the height of pallet racking.
Unit racking span generally within 4m, width within 1.5m, the height of low and high warehouse raking within 12m.
The height of Ultra-high warehouse racking within 30m ( Such warehouse racking basically are automated warehouse ). Total racking height consists of segments of uprigh generally with 12m.
Such a warehouse, low and high warehouses mostly use forward-type powered forklift, counter balance powered forklift, 3-dimensional forklift to access job.
High racking system space utilization.
Accessing flexibly and conveniently.
With computer management and controlBasically can meet the requirment of modern logistics system.
Widely used in the manufacturing industries, the thirs party logistics and distribution cemter, etc.
Be suitble for multi-variety of small batch goods, and also low variety of large quanlities items.
Such rackings are used most in high and ultra-high warehouse(most ASRS uses this type of racking).
Specifications:
|
● Maximum Height(Upright/Pillar): |
2000mm - 12,000 mm |
|
● Max Width/Length(Beam): |
Up to 3,900 mm |
|
● Max Depth(Upright frame): |
Up to 1,500 mm |
|
● Max Weight: |
1,000kg - 3,000 kg / layer |
|
● Mobility: |
The height of each beam can be adjusted by 75mm of pitch freely. |
|
● Surface finish: |
Powder coating which is characterized by surface-smoothly, antirust,anti-corrosive, non-toxic. |
|
● Material: |
High quality steel, such as Q235B etc. |
|
● Color: |
Blue/Orange/Gray/others |
Competitive Advantage:
● Good quality and favorable price
● Good order picking, 100% selectivity
● High picking rate to save work time
● Good product protection
● Making good use of space
● Dismountable structure, easily to assemble and disassemble
Remarks
A) Specification of the racking:Height*Width/Length*Depth
B) How many bays and layers
C) Load capacity of each layer
D) RAL color
E) Warehouse layout if possible(Auto CAD format)
