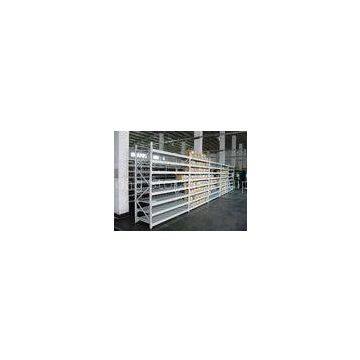

Standard Color Warehouse Medium Duty Goods Shelves With Powder Coating

Classification:

Medium/Light Duty Goods Shelf

Use:

Warehouse storage rack

Supermarket store

Office display

Exhibition hall

Features:

   ● Save space and store various small goods with light/medium duty loads

● It is full easy assembled and dissembled structure designed without extra help by other tools

   ● Layer stories can be adjusted every 75mm in unit, adapted to different height demand.

● There are wood made and steel made layer for your options, bearing of every layer reach 800KG

● Constructed by excellent cool rolling and coal steel element forming technology, surface processed with Zinc.  Phosphorous in normal temperature, and coated by static powder and high temperature treatment, enduing with antiseptic ability

● It can be connected additionally in landscape orientation and in portrait so as to increase stability and safety

Structure:

Dismountable structure

Loading capacity:

100-800 Kg per level

Quality:

Strong and stable

Size:

Customized size

Materials:

High quality steel Q235

Material thickness:

0.8-2.5mm

Upright:

Omega Section

Pitch holes:

pitch 75mm square hole with good safety

Beams:

Box-shape beams or Slide-structure stair-type beam

Levels:

2~8 levels, customized

Welding:

Good welding

Safety Pin:

L shape locking pins

Colors:

Standard Blue&Orange or customized

HS Code

73089000

● Maximum Height(Upright/Pillar):

2,000mm - 8,000 mm

● Max Width/Length(Beam):

Up to 3,900 mm

● Max Depth(Upright frame):

Up to 1,500 mm

● Max Weight:

100kg - 800 kg / layer

● Mobility:

The height of each beam can be adjusted  by 75mm of pitch freely.

● Surface finish:

Powder coating which is characterized by surface-smoothly, antirust,anti-corrosive, non-toxic.

● Material:

High quality steel, such as Q235B etc.

● Color:

Blue/Orange/Gray/others
