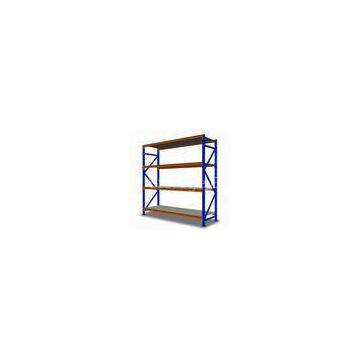

Antirust Medium Duty Racking , 500 kg/level Adjustable Garment Shelves
Quick Detail:
Medium/Light Duty Racking for Shoes and Garment:
1. It is full easy assembled and dissembled structure designed without extra help by other tools
2. Layer stories can be adjusted every 75mm in unit, adapted to different height demand.
3. There are wood made and steel made layer for your options, bearing of every layer reach 800KG
4. Constructed by excellent cool rolling and coal steel element forming technology, surface processed with Zinc. Phosphorous in normal temperature, and coated by static powder and high temperature treatment, enduing with antiseptic ability
5. It can be connected additionally in landscape orientation and in portrait so as to increase stability and safety
6. Customized color and specification. Feet, additional layer board and signal board available for selection
Description:
Medium/Light Duty Racking for Shoes and Garment:
|
Classification: |
Medium/Light Duty Goods Shelf |
|
Use: |
Warehouse storage rack Supermarket store Office display Exhibition hall |
|
Feature: |
Save space Store various small goods with light/medium duty loads |
|
Structure: |
Dismountable structure |
|
Loading capacity: |
100-500 Kg per level |
|
Quality: |
Strong and stable |
|
Size: |
Customized size |
|
Materials: |
High quality steel Q235 |
|
Material thickness: |
0.8-2.5mm |
|
Upright: |
Omega Section |
|
Pitch holes: |
pitch 75mm square hole with good safety |
|
Beams: |
Box-shape beams or Slide-structure stair-type beam |
|
Levels: |
2~8 levels, customized |
|
Welding: |
Good welding |
|
Safety Pin: |
L shape locking pins |
|
Colors: |
Standard Blue&Orange or customized |
|
HS Code |
73089000 |
Remarks
A) Specification of the racking:Height*Width/Length*Depth
B) How many bays and layers
C) Load capacity of each layer
D) RAL color
E) Warehouse layout if possible(Auto CAD format)
Specifications:
|
● Maximum Height(Upright/Pillar): |
2,000mm - 8,000 mm |
|
● Max Width/Length(Beam): |
Up to 3,900 mm |
|
● Max Depth(Upright frame): |
Up to 1,500 mm |
|
● Max Weight: |
100kg - 800 kg / layer |
|
● Mobility: |
The height of each beam can be adjusted by 75mm of pitch freely. |
|
● Surface finish: |
Powder coating which is characterized by surface-smoothly, antirust,anti-corrosive, non-toxic. |
|
● Material: |
High quality steel, such as Q235B etc. |
|
● Color: |
Blue/Orange/Gray/others |
Competitive Advantage:
1. Made of high-grade steel, with static powder coating surface finish, solid in construction and
