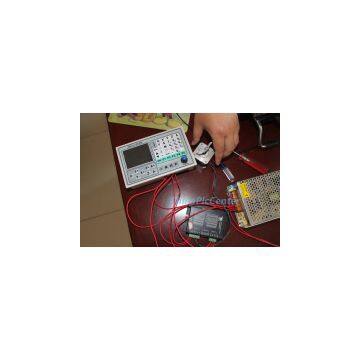

50KHZ Industr CNC 4 Axis Breakout Board Carving Machine Control System Card Engraving Machine Control Card

Using high-performance 32-bit Cpu,Equipped with liquid crystal displays ,Window humane man-machine interface,Using external TF card memory ,Storage space than 2G,Operating voltage and control voltage before using isolation modeTouch keyboard .The system has high reliability,High precision ,Noise,Easy to operate and so on.

The controller can Four axis linkage

Main features:

Parameter settings: For processing, control parameters related to the operation

Manual operation: can be achieved manually, jog back to the program zero, back to mechanical zero, cleared coordinate operations.

Program management: program can create, delete, modify, read, save, save, automatic processing, continuous, and pause.

External Manual: Manually define a variety of external functions to facilitate the use of

Freedom to select the input function: the limited input port can achieve a variety of user needs

System components

CNC system consists of the following components:

High-performance, high-speed 32-bit ARM CPU

Liquid crystal display (resolution: 320 × 240)

Input / Output (10MA 16 opto-isolated inputs and 16 opto-isolated output pull-down tank flow 500MA)

Users machining program memory can be implemented in any storage TF card

Technical indicators

The smallest unit of data 0.0001mm

The maximum data size ± 99999.999mm

Maximum pulse output frequency 50KHz (-axis simultaneous 50KHZ)

Control axes 4 axes (X, Y, Z, A)

4-axis linkage axis and has a micro-multi-multi-axis interpolation control line forward

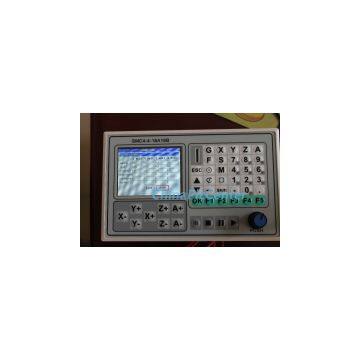

Appearance and Panel: Dimensions: length 165, width 101, height 50
