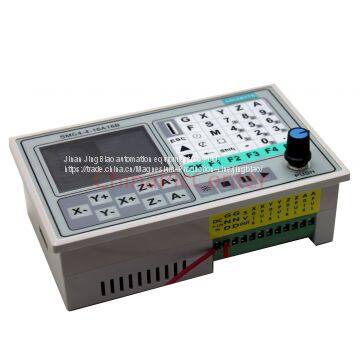

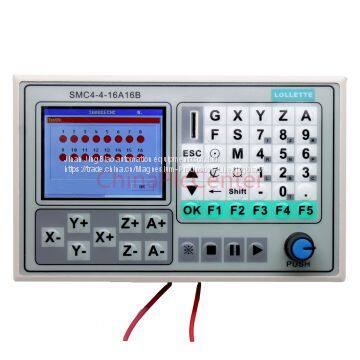

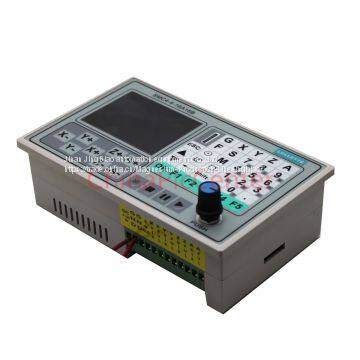

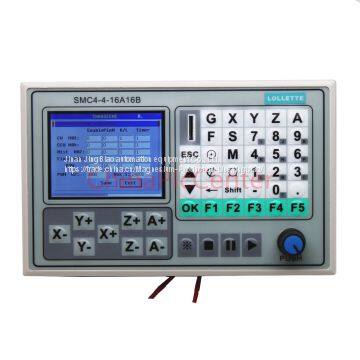

Help CenterSMC4-4-16A16B Offline CNC Controller
Related Products
-
DDCSV1.1 CNC Control+4-Axis MPG Pendant HandwheelNegotiableMOQ: 1 Piece -
TC55V 4 Axis 3.5 Inch Color LCD CNC ControllerNegotiableMOQ: 1 Piece
-
NVEM CNC Controller 200KHZ Ethernet MACH3 Motion Control Card for Stepper Motor 3-Axis/4-Axis/5-Axis/6-AxisNegotiableMOQ: 1 Piece
-
NVUM CNC Controller 3-Axis/4-Axis/5-Axis/6-AxisNegotiableMOQ: 1 Piece
-
DDCSV1.1 CNC Control+4-Axis MPG Pendant HandwheelNegotiableMOQ: 1 Piece
50KHZ CNC 4 Axis Offline Controller Breakout Board Engraving Machine Control System CardSMC4-4-16A16B Manual
/support/pdf/CNC/Four-axis-cnc1508.pdf
/support/pdf/CNC/IO-card.pdf
Specification:
| Model Number | SMC4-4-16A16B |
| HZ | 50KHZ |
| Axis | 4 Axis, X Y Z A（4-axis linkage） |
| CPU | 32 bit ARM |
| Memory | 2GB |
| LCD | 320*240 |
| Size | 165*101*50mm |
| Language | English |
| Application | CNC Engraving machine and CNC Milling machine |
1. Parameter setting : Can set, process and operation various control parameters, to reach the optimal effect.
2. Operate by Hand: Can control your systom by hand in this controller Don't need connect PC.
3. Program managment: This controller can built,delete,modify,read, save,automatic processing,continuous,pause and other functions.
Technical Information:
1. The smallest date unite: 0.0001mm
2. The biggest date unite: ± 99999.999mm
3. The highest frequency of pulse output: 50KHz (The 4 axises can reach 50KHZ at the same time)
4. Control axis: 4 axis (X, Y, Z, A axis)
Main features:
Parameter settings: For processing, control parameters related to the operation
Manual operation: can be achieved manually, jog back to the program zero, back to mechanical zero, cleared coordinate operations.
Program management: program can create, delete, modify, read, save, save, automatic processing, continuous, and pause.
External Manual: Manually define a variety of external functions to facilitate the use of
Freedom to select the input function: the limited input port can achieve a variety of user needs
System components
CNC system consists of the following components:
High-performance, high-speed 32-bit ARM CPU
Liquid crystal display (resolution: 320 × 240)
Input / Output (10MA 16 opto-isolated inputs and 16 opto-isolated output pull-down tank flow 500MA)
Users machining program memory can be implemented in any storage TF card
Technical indicators
The smallest unit of data 0.0001mm
The maximum data size ± 99999.999mm
Maximum pulse output frequency 50KHz (-axis simultaneous 50KHZ)
Control axes 4 axis (X, Y, Z, A)
4-axis linkage axis and has a micro-multi-multi-axis interpolation control line forward
Appearance and Panel: Dimensions: length 165*101*50
Package Included:1 x Control breakout board
1 x IO input/Output connector(Optional)
1 x USB DISK
1 x Memory Card
I/O Extended Edition ( easy wiring and transfer function)
Customer Case
