TC55V 4 Axis 3.5 Inch Color LCD CNC Controller

TC55V 4 Axis 3.5 Inch Color LCD CNC Controller thumbnail-1
TC55V 4 Axis 3.5 Inch Color LCD CNC Controller thumbnail-2
TC55V 4 Axis 3.5 Inch Color LCD CNC Controller thumbnail-3
TC55V 4 Axis 3.5 Inch Color LCD CNC Controller thumbnail-4
TC55V 4 Axis 3.5 Inch Color LCD CNC Controller photo-1

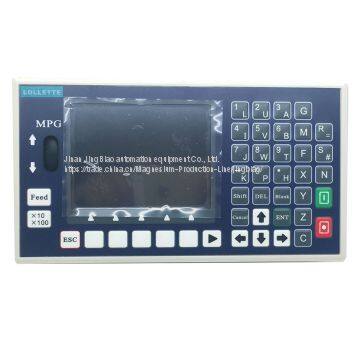

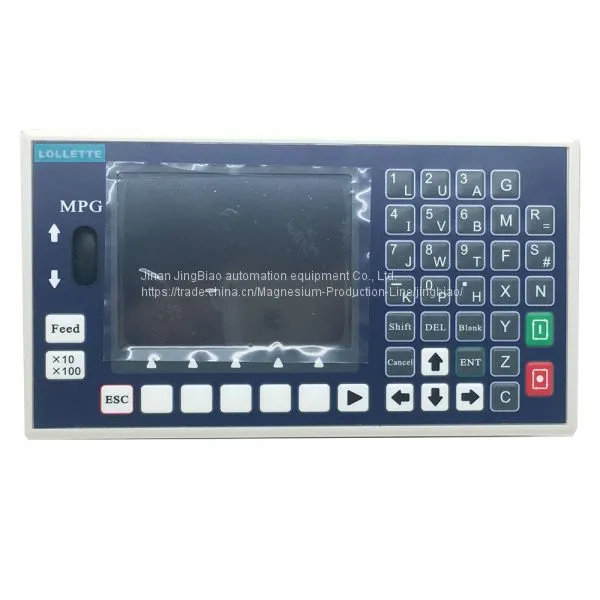

TC55V 4 Axis 3.5 Inch Color LCD CNC Controller photo-2

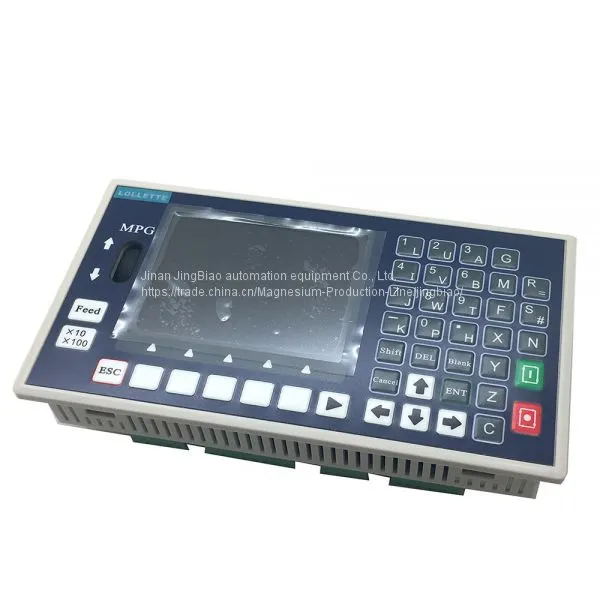

TC55V 4 Axis 3.5 Inch Color LCD CNC Controller photo-3

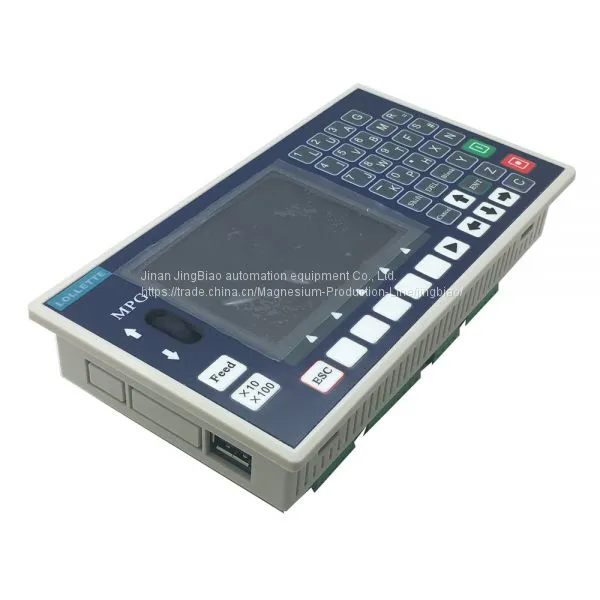

TC55V 4 Axis 3.5 Inch Color LCD CNC Controller photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LOLLETTE
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Jinan JingBiao Automation Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LOLLETTE
Place of Origin China

TC55V stepper/servo motor controller

It is equipped with 3.5 inch color screen, RS 485 communication,

Chinese/English Switch,  and USB connection.

It is highly reliable, highly accurate, low noise and easy to use.

Programming method

Different with CNC controllers of Fanuc and Siemens, this controller use revolutionary conversational programming, which is easy to learn and use, automatically lead you to finish programming.

 pic

Main Functions

Automatically execute:Actual running, Dry running, Single-step execution, Terminate program, Start and Pause function

Manual operation:Manual high speed, Manual low speed, Jog operation, Back to program zero, Back to machine zero

Program management:absolute programming, Incremental programming, linear and circular interpolation, back to machine zero, sub-program call,register, delay, repeat, Output, PLC set, Pause

Parameter settings:Set various control parameters of processing and operation, get the best status of processing effect

Exterior Manual Operation: control motor clockwise and counter-clockwise spinning, Start, Pause, Alert and Emergency Stop.

USB Connection and upgrade

PLC Extension

I/O Extension

Isolated I/O port

Chinese/English panel display

Free change of boot picture


Technical Specifications

Minimum data unit 0.001 mm

Maximum data size ± 99999.999mm

Maximum Speed: 9000mm/min (pulse is 0.001mm)

Maximum pulse output frequency 150KHz

Axis 1-4 (X,YZ,C)

X,Y,Z,C axis can conduct linear interpolation, X,Y can do circular interpolation.

Electric Gear: numerator :1-99999 denominator: 1-99999

System main functions are automatic, manual, program editing, system parameters, self-check, settings, etc.
Size

Outside Size  172×94×48mm

Installing Size: 162×84mm,Front Panel: 4mm



TC55V Manual



20150106_102132
