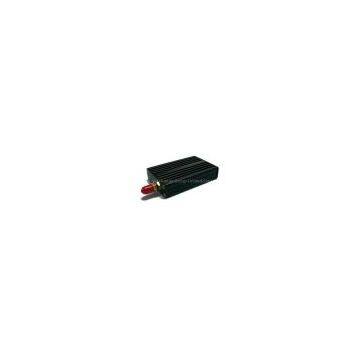

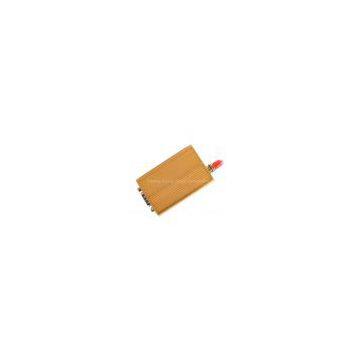

500mW DB9 Tin RF Transceiver Module Radio Modem HR-1028A

Name: 500mW DB9 Tin RF Transceiver Module Radio Modem HR-1028A
Brand: HUARAY
SKU: 148561104
Availability: InStock

Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

HUARAY

Place of Origin:

China

Model Number:

HR-1028A

Oriental Huaray Group Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name HUARAY

Place of Origin China

Model Number HR-1028A

* AMR Automatic Meter Reading

* Wireless alarm and security systems

* Building automation, security, wireless monitoring and control of room equipment, Access Control System;

* Wireless data transmission, automatic data collection system;

* Low power telemetry

* 433 / 868 and 915 MHz ISM/SRD band systems

* Data radio can be used for Wireless conference voting system;

* Mapping;

* Radio modem can be used for Sports training & competition;

* Wireless dishes ordering;

* Wireless POS, PDA wireless smart terminal;

* RF modem can be used for Electronic bus station and intelligent traffic;

* RF transmitter Wireless electronic display screen and queuing machine;

* Wireless telemetry Charging for parking, parking lot;

* Wireless modem Automobile inspection and four-wheel orientation;

* Wireless sensor Industrial wireless remote control and air conditioning remote controller;

* Observation and predication of oil well and hydrological information;

* Wireless RS232/RS485 conversion/connector;

* Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection system;

Technical specification of HR-1028A:

PERFORMANCE
Power Output:	≤500mW) <;customized>
RF Line-of-sight Range:	2Km@9600bps, 3Km@1200bps
RF Effective Rate:	1200~38400bps optional, 57600bps customized
Receiver Sensitivity:	-123dBm@1200bps, -118dBm@9600bps
NETWORKING
Networking Topology:	Point-to-point, point-to-multipoint
POWER
Supply Voltage:	5V DC(customized according requirement)
Transmitting Current:	<;350mA
Receiving Current:	<;28mA (TTL connect)
Sleeping Current:	<;20µA
GENERAL
Frequency Band:	433MHz(Default), 450MHz~915MHz(customized)
Communication Mode:	Half-duplex
Channel:	8(Default), 16/32(customized)
Interface:	RS-232/RS-485/USB/TTL optional
PHYSICAL PROPERTIES
Size:	80mm45mm20mm (without antenna port)
Antenna Impedance:	50Ω SMA (multiple antenna options available)
Operating Temperature:	-35~+75 C
Frequency Stability;	±2.5ppm
