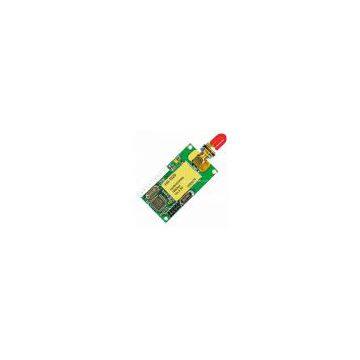

Wireless Rf Module With 10mW ~ 100mW Output Power, UHF Wireless Rf Transceiver HR-1020
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HUARAY
Place of Origin:
China
Model Number:
HR-1020
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
433MHz/868MHz/915MHz Wireless RF Data Trannsceiver Module HR-1024NegotiableMOQ: 2 Pieces -
Wireless RF Transceiver Module TTL/RS-232/RS-485 Interface RF Module HR-1025NegotiableMOQ: 2 Pieces
-
500mW DB9 Tin RF Transceiver Module Radio Modem HR-1028ANegotiableMOQ: 2 Pieces
-
Wireless RF Transceiver Module TTL/RS-232/RS-485 Interface RF Module HR-1025NegotiableMOQ: 2 Pieces
-
Wireless RF Transceiver Module TTL/RS-232/RS-485 Interface RF Module HR-1025NegotiableMOQ: 2 Pieces
Brand Name
HUARAY
Place of Origin
China
Model Number
HR-1020
Technical specification of HR-1020 RF Module:
Serial number | Item | Parameter | Note |
1 | Modulation mode | GFSK/FSK | |
2 | Work frequency | 420.00~450.30/860~875/910~925MHz | |
3 | Transmission power | 10dBm(10mW) | |
4 | Receiving sensitivity | -115 ~-118dBm | |
5 | Channel amount | 8channel | User setting |
6 | Transmitting current | <40mA | |
7 | Receiving current | <20mA | |
8 | Sleeping current | <3uA | |
9 | Interface velocity | 1200/2400/4800/9600/19200bps | |
10 | Interface mode | UART TTL/RS-232/RS-485 | User setting |
11 | Power supply | +3~5VDC | |
12 | Working temperature | -25 to 80 ℃ | |
13 | Working humidity | 10%~90%(relative humidity without condensation) | |
14 | Dimension | 47mmx26mmx10mm | |
15 | Reliable transmit distance | 800m |
