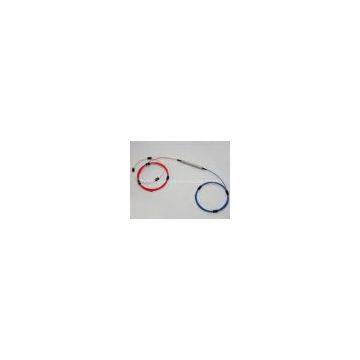

850,980,1060nm Polarization Insensitive Optical Circulator
Features
l High Isolation
l Low Insertion Loss
l Low PDL
l High Stability and Reliability
l Cost Effective
Applications
l Optical Amplifier
l Pump laser Source
l Fiber Optic Sensor
l Test and Measurement
l Instrumentation
Performance Specifications
|
Parameter |
Specification |
||
|
Operating Wavelength (nm) |
1060±20 |
980±20 |
850±20 |
|
Typical Isolation (dB) |
25 |
||
|
Minimum Isolation (dB) |
20 |
||
|
Typical Insertion Loss (dB) |
1.3 |
||
|
Maximum Insertion Loss (dB) |
1.8 |
||
|
Polarization Dependent Loss (dB) |
<0.2 |
||
|
Return Loss(dB) |
≥50 |
||
|
Cross Talk (dB) |
≥45 |
||
|
Power Handling (mW) |
300 |
||
|
Opterating Temperature (℃) |
0~+50 |
||
|
Storage Temperature (℃) |
-40~+85 |
||
|
Package dimension (mm) |
L62.6xW28xH27 |
Specifications may change without notice.
Above specification are for device without connector.
Ordering Information
|
PIOC |
XX |
X |
X |
X |
XX |
|
|
Wavlength |
Fiber Type |
Pigtail Fiber |
Fiber Length |
In/Out Connector |
|
10=1060nm 980=980nm 85=850nm
|
1=HI 780 fiber 2=HI 1060 fiber |
1=Bare fiber 2=900um loose tube |
1=1m 2=2m S=Specify |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
