D2×2B Mechanical Fiber Optic Switch

Name: D2×2B Mechanical Fiber Optic Switch
Brand: Flyin
SKU: 147993568
Availability: InStock

Flyin Optronics Co.,Ltd.

D2×2B Mechanical Fiber Optic Switch thumbnail-1

D2×2B Mechanical Fiber Optic Switch thumbnail-2

D2×2B Mechanical Fiber Optic Switch thumbnail-3

D2×2B Mechanical Fiber Optic Switch photo-1

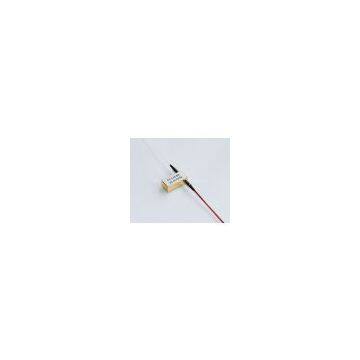

D2×2B Mechanical Fiber Optic Switch photo-2

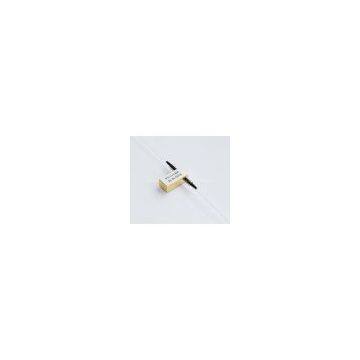

D2×2B Mechanical Fiber Optic Switch photo-3

Negotiable MOQ: 1 Case (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Flyin

Place of Origin:

China

Model Number:

DFOS22

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Flyin

Place of Origin China

Model Number DFOS22

D2×2B Mechanical Fiber Optic Switch

Model : DFOS22

Flyin Optronics ’ D2×2B Mechanical Fiber Optic Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. The mechanical operation offers ultra-high reliability and fast switching speed as well as bi-directional performance. The MMS fiberoptic switches are true switching solutions for optical networking applications.

Features

l Low Insertion Loss

l Wide Wavelength Range

l Low Crosstalk

l High Stability, High Reliability

l Epoxy-free on Optical Path

Application

l Metropolitan Area Network

l R&D in Laboratory

l System Monitor

l Configurable OADM

Performance

Parameters		FY-D2×2B
Wavelength Range	nm	670~980	1260~1650
Operating Wavelength	nm	670/785/850/980	1310/1490/1550/1625/1650
Insertion Loss	dB	Typ:0.8 Max:1.2	Typ:0.6 Max:1.0
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥30 SM≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	v	3.0 or 5.0
Lifetime	times	≥107
Switch Time	ms	≤8
Transmission Power	mW	≤500
Operating Temperature	℃	-20~+70
Storage Temperature	℃	-40~+85
Weight	g	16
Dimension	mm	(L)27.0×(W)12.6×(H)8.0(±0.2mm) customization is available.

Electric

Specifications	Voltage	Current	Resistance
5V Latching	4.5~5.5	36~44mA	125Ω
5V Non-latching	4.5~5.5	26~32mA	175Ω
3V Latching	2.7~3.3	54~66mA	50Ω
3V Non-latching	2.7~3.3	39~47mA	70Ω

Pins

Control model	Optical Path	Electric Drive	Status Sensor
D2×2B	Light Pin	1	5	6	10	2-3	3-4	7-8	8-9
Non-latching	P1-P3 P1’-P3’	--	--	--	--	Close	Open	Open	Close
P1-P4 P1’-P4’ P3-P2 P3’-P2’	V+	--	--	GND	Open	Close	Close	Open
