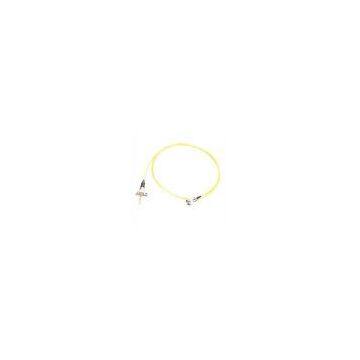

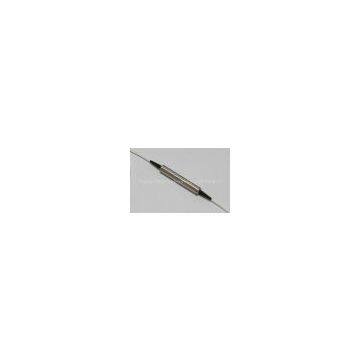

850,980,1060nm Polarization Insensitive Optical Isolator
Features
l High Isolation
l Low Insertion Loss
l Low PDL
l High Stability and High Reliability
l Cost Effective
Applications
l Fiberoptic Amplifiers
l Pump Laser Source
l Fiberoptic Sensor
l Test and Measurement
l Instrumentation
Performance Specifications
|
Parameter |
Specification |
|
Operating Wavelength (nm) |
850±20,980±20,1060±20 |
|
Typical Isolation (dB) |
25 |
|
Minimum Isolation (dB) |
23 |
|
Typical Insertion (dB) |
1.0 |
|
Maximum Insertion Loss (dB) |
1.2 |
|
Return Loss (dB) |
50 |
|
PDL (dB) |
0.2 |
|
Operating Temperature (℃) |
0 ~ +50 |
|
Storage Temperature (℃) |
-40 ~ +85 |
|
Fiber type |
HI 780 Fiber or customer |
|
Package Dimension (nm) |
L52 x W28 x H27 |
|
Power Handling (mW) |
300 |
Specifications may change without notice.
Above specification are for device without connector.
Ordering information
|
IS |
XX |
X |
X |
X |
XX |
|
|
Wavelength |
Pigtail Style |
Fiber Length |
Fiber Type |
In/Out Connector |
|
85=850nm 98=980nm 10=1060nm |
1=Bare Fiber 2=900um jacket |
1=0.25m 2=0.5m 3=1.0m S=Customer Length |
1=HI 780 2=HI 980 3=HI 1060 |
0=none 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Special |
