UNIVERSAL 6388A SMTpart

Smtsky Asia Limited
UNIVERSAL 6388A SMTpart thumbnail-1

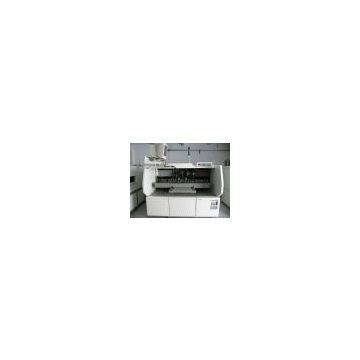

UNIVERSAL 6388A SMTpart photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Total Employees:
101 - 200 People
Main Markets:
North America, South America, Eastern Europe
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Transfer Steps
.
Bad Board/Circuit Reject
.
Board/Circuit Error Correction
.
Auto Miss Mark
.
Checkgap
Steps 47139813 Rev. -

Index
Use the Index option to insert 1, 2, or 3 table rotations in the steps list. On machines with board handling, multiple indexes (Index 2 and Index 3) are used to increase machine throughput, since the table rotation does not have to stop at each 90° increment.
The index feature behaves differently on dual head and single head machines and whether or not the machine has board handling configured.
Refer to the tables for descriptions about how the machines behave when multiple index steps are used.
Dual Head 8 machines only: Be sure the number of indexes selected in the product corresponds to the rotary table stop configuration in the machine configuration. If they do not correspond, the product status indicates 'Add/Delete Index Step(s)'
Refer to the machine specific Operation Reference Manualfor details about removing rotary table stops.
. Machine behavior for dual head 8 machines.
47139813 Rev. -Steps
Dual Head 8 Machines
Physical Stop Configuration  Number of Indexes in Product  Board Handling Configured  Board Handling Not Configured (Stand Alone)

 Index 1  Tables rotate clockwise to first physical stop which is 90°  Tables rotate clockwise to first physical stop which is 90°
Index 2  Tables rotate clockwise to second physical stop which is 180°, stopping momentarily at 90°  Tables rotate clockwise to second physical stop which is 180°, stopping momentarily at 90°
Index 3  Tables rotate clockwise to third physical stop which is 270°, stopping momentarily at 90° increments  Tables rotate clockwise to third physical stop which is 270°, stopping momentarily at 90° increments
 Index 1  Tables rotate clockwise to first physical stop which is 90°  n/a
Index 2  Tables rotate clockwise to second physical stop which is 0°, stopping momentarily at first physical stop which is 90° (Tables actually rotate 360°)  n/a
Index 3  Tables rotate clockwise to third physical stop which is 90°, stopping momentarily at the first physical stop which is 90°, and at the second physical stop which is 0° (Tables actually rotate 450°)  n/a
 Index 1  Tables rotate clockwise to first physical stop which is 270°  n/a
Index 2  Tables rotate clockwise to second physical stop which is 0°, stopping momentarily at the first physical stop which is 270° (Tables actually rotate 360°)  n/a
Index 3  Tables rotate clockwise to third physical stop which is 270°, stopping momentarily at the first physical stop which is 270°, and at the second stop which is 0° (Tables actually rotate 630°)  n/a
. Machine behavior for single head (table) machines.

Single Head (Table) 8 Machines
Number of Indexes in Product  Board Handling Configured  Board Handling Not Configured (Standalone)
Index 1  Table rotates clockwise 90°  Table rotates clockwise 90°
Index 2  Table rotates clockwise 180° without stopping  Table rotates clockwise 180° stopping momentarily at 90°
Index 3  Table rotates clockwise 270° without stopping  Table rotates clockwise 270° stopping momentarily at 90° increments
To insert an Index step:
1. From the Steps window:
Special Steps > Add > Index > Index 1 (Index 2 or Index 3)
The cursor is displayed as a horizontal arrow with a single footprint.
2
