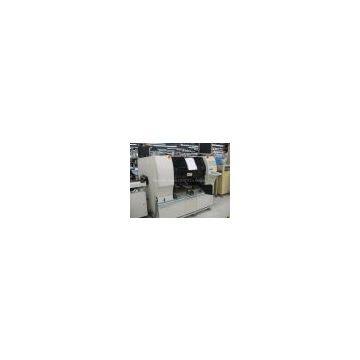

UNIVERSAL 4796L SMTpart

Smtsky Asia Limited
UNIVERSAL 4796L SMTpart thumbnail-1
UNIVERSAL 4796L SMTpart photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Total Employees:
101 - 200 People
Main Markets:
North America, South America, Eastern Europe
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
.
Backward Search (checkbox): When selected and any other search control button is selected, locates the next item toward the top of the list that matches the search criteria.
When cleared (default) and any other search control button is selected, locates the next item toward the bottom of the list that matches the search criteria.
.
Clear (button): Removes all data from the Search and Replace fields.
.
Cancel (button): Closes the Search and Replace dialog box and returns to the Steps window.
.
Search (button): Locates the next item in the list that matches the criteria entered in the Search fields. When Search is selected, the Search and Replace dialog box shrinks so that the search and replace controls and at least part of the list are displayed at the same time.
Maximize Button

A message appears when there are no more items that match the search criteria.
To alter or refine the search or replace criteria without clearing all the data, select the Maximize button at the right of the Search and Replace title bar.
.
Replace (button): Locates the next item in the list that matches the search criteria and replaces the current data with data in the Replace fields.
.
Replace All (button): Replaces all current data in the list that matches the search criteria with data in the Replace fields.
.
Replace Selected (button): Locates the next selected item in the list that matches the search criteria and replaces the current data with data in the Replace fields.
.
Select All (button): Selects all items in the list that match the search criteria.

Options
Use the Options menu bar heading to select additional features for using the Steps window. The following features are available.
.
Insert
.
Sort
.
Overview
Insert
Use the Insert option to define whether moved or added steps are inserted above or below the designated step in the steps list.

To define the insert step choice:
1. From the Steps window:
Options > Insert
A second pulldown menu is displayed.
.
Select Above to move the highlighted steps above a selected step in the insertion order. All subsequent steps numbers are adjusted accordingly.
.
Select Below to move the highlighted steps below a selected step in the insertion order. This is the default choice. All subsequent steps numbers are adjusted accordingly.
A checkmark visible in front of the menu option indicates the choice. Once an insert choice is selected, it does not have to be selected again except to change the choice. The choice remains selected until the Product Editor is closed.
Sort

Use the Sort option to define the order of any selected sort of the steps list.
To define the sort choice:
1. From the Steps window:
Options > Sort
A second pulldown menu is displayed.
.
Select Ascending to perform any selected sort of the steps list in ascending order. This is the default choice.
.
Select Descending to perform any select sort of the steps list in descending order.
A checkmark visible in front of the menu option indicates the choice. Once the sort choice is selected, it does not have to be selected again except to change the choice. The choice remains selected until the Steps window is closed.

Overview
Use the Overview option to display a thumbnail graphical overview of the entire steps list in the far-right side of the window. This features shows where the steps currently displayed are located in relation to the rest of the pattern. A checkmark visible in front of the menu option indicates that the Overview option is active.
To display the graphical overview:
1. From the Steps window:
Options > Overview
The Steps window with the overview shown is displayed.
Note the thumbnail overview on the right side of the window. The overview is especially useful if the pattern is long.
Exit
Select Exit to close the Steps window.
47139813 Rev. -Steps

Changes ToThis Revision
New part number.
Pg 10-11: Added Recover From Radial 1° Increment Step.
TECHNICAL PUBLICATIONS
Graphic  47139902 Rev . B
Introduction  Use the Graphic window to graphically manipulate component insertions on the board or view components in detail. The Window The Graphic window displays a graphical representation of the production board. The difference between the Graphic window and the Overview win-dow which also graphically displays the board, is that the Graphic window contains a Zoom utility and the ability to actually manipulate the component insertions. The Overview window does not. Use the Zoom feature to view the board in less or more detail. This is done by zooming in (more detail) or out (less detail). The Zoom utility is covered in detail in other areas of this module. When the Graphic window is opened, the board is displayed at the same zoom factor as when the window was closed. Circuits are displayed in light yellow. Offsets associated with those circuits are displayed in gray. A green pie slice in the corner of a circuit or offset in-dicates the reference zero of the circuit. For example, in the previous illustra-tion, reference zero for circuit 1 and offset 3 is in the lower left corner. Refer-ence zero for circuit 2 and offset 4 is in the upper right corner indicating that the circuit/offset is rotated 180°. Components are displayed in the graphic window as follows. . Components for steps that are invalid are displayed in red. . Components for steps that are bypassed are displayed in dark red.
TECHNICALP UBLICATIONS
47139902 Rev. B  Graphic
 . Components for steps that are set to no continuity are displayed in blue. . Components for steps that are set to ignore continuity are displayed in pink. Components can be manipulated in the Graphic window as follows. . Move the cursor over a component insertion and push the left trackball button to select the component. When a component insertion is selected using this method, it is officially marked and can then be cut, copied, moved, or changed. Select the Edit menu bar heading. Menu options are displayed. Refer to the specific menu items later in this module for details. . Move the cursor over a component and double-click the left trackball button. The Steps window is automatically opened and the selected component is highlighted. . Move the cursor over a component insertion and push the right trackball button. A toolbox is displayed. -Cursor over component on circuit. -Cursor over component on offset of a circuit. The toolbox displays the reference ID of the selected component insertion and its X and Y coordinates. The following functions can be performed by selecting buttons from the toolbox. -(Circuit and Offset) Selecting this icon from the toolbox opens the Insertion List window and highlights the selected component insertion in the list. -(Circuit and Offset) Selecting this icon from the toolbox opens the Steps window and highlights the selected step in the list.
TECHNICAL PUBLICATIONS

Graphic  47139902 Rev. B
 -(Circuit only) Selecting this icon from the toolbox moves the selected insertion on the board. The X and Y coordinates displayed in the status bar at the top of the window reflect the current location of the component as it is moved. Select the right trackball button to rotate the component in 90° increments. Select the left trackball button to position the component on the board. Pushing [Esc] any time before positioning the component on the board cancels the move. -(Circuit only) Selecting this icon from the toolbox duplicates the selected component. The duplicate component appears as a floating outline until it is positioned on the board. -(Circuit only) Selecting this icon from the toolbox duplicates the selected component in succession. The duplicate component appears as a floating outline until it is positioned on the board. When this is done, another floating outline appears, and so on, until the Escape key [Esc] is pushed. -(Circuit only) Selecting this icon from the toolbox opens the component definition of the selected component in the component database. -(Circuit only) Selecting this icon from the toolbox removes the component from the board and deletes it from the Insertion List. There is no confirmation message when using this method to delete a component, so be sure that you want to delete the component before selecting this button. Additional functions can be performed from the toolbox by moving the cursor over board or circuit options (board error correction, bad board reject, or auto miss marker). The trash can icon, in the following toolbox displays, is only displayed when the cursor is over a board feature on the circuit, not on an offset of the circuit. -Selecting the BEC icon from the toolbox opens the Board (or Circuit) Error Correction dialog box (refer to the Board (Circuit) Error Correction topic in the Circuit List module).
TECHNICALP UBLICATIONS
47139902 Rev. B  Graphic
Edit  -Selecting the BBR icon from the toolbox opens the Bad Board Reject dialog box (refer to the Bad Board Reject topic in the Circuit List module). -Selecting the AMM icon from the toolbox opens the Automatic Miss Mark dialog box (refer to the Automatic Miss-Marker topic in the Circuit List module). Another aid in manipulating component insertions graphically is the status bar which is located just under the menu bar of the Graphic window. The status bar displays the following information. . X Coordinate: The X location of the cursor in the window at any given time. . Y Coordinate: The Y location of the cursor in the window at any given time. . Units: The measuring unit as defined in the Product Editor configuration. . Zoom: The current Zoom factor. Refer to the Zoom topics later in this module. . Target: the component insertion that the cursor is over. The target displays the reference ID and component ID of the component insertion. The insertion does not have to be selected in order for target information to be displayed. Use the Edit menu bar heading to manipulate component insertion(s). The following options are available: .Cut . Copy . Move . Paste . Conditional Select . Select All Components . DeSelect All Components . Change Selected Components
TECHNICAL PUBLICATIONS
Graphic  47139902 Rev. B
 Cut Use the Cut option to delete a selected component insertion from the board while retaining the component in the buffer. The cut insertions can then be pasted into another location. This option is only available if one or more component insertions are selected on the board graphic. The insertion(s) remain in the buffer until one of the following actions occurs. . another Cut is made . a Copy is made . the current Product Editor session is closed To cut a component insertion from the board graphic: 1. Select a component insertion(s) in one of the following ways. . Select manually with the cursor . Use the Select All Components option . Use the Conditional Select option 2. From the Graphic window: Edit > Cut The selected component insertion(s) is moved to the buffer. A message indicates the selected insertion(s) was cut from the board and placed in the buffer. 3. Select OK. The component insertion is ready to be pasted into another location. Refer to the Paste topic later in this module. Copy Use the Copy option to copy selected insertion(s) from the board and place them in the buffer. The copied insertions can then be pasted into another lo-cation. This option is only available if one or more component insertions are selected on the board graphic. The insertion(s) remain in the buffer until one of the following actions occurs. . another Cut is made . a Copy is made . the current Product Editor session is closed To copy a component insertion in the board graphic:
1
.

Select manually with the cursor
.
Use the Select All Components option
.
Use the Conditional Select option
2
Edit > Copy
The selected component insertion(s) is moved to the buffer. A message indicates the selected insertion(s) was placed in the buffer.
3
Move

Use the Move option to move a selected component insertion to another loca-tion on the board. All selected insertions are moved from their original loca-tions by the X, Y, and Theta offset values provided. This option is only available if one or more component insertions are selected on the board graphic.
Any offset data fields left blank are interpreted as zeroes.
To move a component insertion from the board graphic:
1
.
Select manually with the cursor
.
Use the Select All Components option
.
Use the Conditional Select option

2
Edit > Move
The Move Selected Objects dialog box is displayed.
3
Enter the X Offset value. This value defines the distance, in the X di-rection, of the new insertion location from the original component in-sertion location.
4
Enter the Y Offset value. This value defines the distance, in the Y di-rection, of the new insertion location from the original component in-sertion location.
5
Enter the Theta Offset value. This value defines the rotation of the insertion in the new location with respect to the rotation of the original component insertion rotation.
6

Select OK. The component insertion(s) is moved according to the off-set values supplied.
Paste
Use the Paste option to insert component insertions that have previously been cut or copied to the buffer. Pasted insertions are moved from their original locations by the X, Y, and Theta offset values provided. This option is only available if one or more component insertions have been cut or copied to the buffer.
Any offset data fields left blank are interpreted as zeroes.
New insertions are assigned unique reference IDs automatically by the Prod-uct Editor.
To paste a component insertion:
1
Edit > Paste
The Paste Buffered Objects dialog box is displayed.
TECHNICALP UBLICATIONS

47139902 Rev. B  Graphic
2. Enter the X Offset value. This value defines the distance, in the X di-rection, of the new insertion location from the original component in-sertion location. 3. Enter the Y Offset value. This value defines the distance, in the Y di-rection, of the new insertion location from the original component in-sertion location. 4. Enter the Theta Offset value. This value defines the rotation of the insertion in the new location with respect to the rotation of the original component insertion rotation. 5. Select OK. The component insertion(s) is pasted according to the off-set values supplied. Conditional Select Use the Conditional Select option to select all component insertions based on a selected component ID. The selected insertions can then be cut, copied, moved, or changed. To conditionally select component insertions: 1. From the Graphic window: Edit > Conditional Select The Conditional Select dialog box is displayed. . Conditional Select dialog box for a board without multiple circuits: . Conditional Select dialog box for a board with multiple circuits (not offsets of a circuit):
All component types included in the product are displayed in the Com-ponents list box of the dialog box.
If the board contains multiple circuits (not offsets), a second list box labeled Circuits lists those circuits.
2
.
If there is only one circuit on the board, all components with the selected component ID(s) on the board are selected.
.
If there are multiple circuits (not offsets) on the board, one or more circuits can be selected. All components with the selected component ID(s) on those circuits and any related offsets are selected.
.

If there are multiple circuits (not offsets) on the board, and no circuit is selected, all components with the selected component ID(s) on the board, regardless of circuit, are selected.
3
Select All Components
Use the Select All Components option to select all component insertions in the graphic. The selected insertions can then be cut, copied, moved, or changed.
To select all component insertions:
1
Edit > Select All Components
All component insertions on the board are selected. The component insertions can then be cut, copied, moved, or changed.
DeSelect All Components
Use the DeSelect All Components option to deselect all selected component insertions in the graphic.

To deselect all component insertions:
1. From the Graphic window:
Edit > DeSelect All Components
All selected component insertions are deselected.
Change Selected Components
Use the Change Selected Components option to change all selected compo-nents according to the parameters defined in the Change Selected dialog box. These parameters are as follows.
.
Ref ID: Changes the reference ID of a single insertion only.
.
Comp ID: Changes the component ID of all selected component insertions. When the cursor is placed in this data field, the component list is displayed so a component ID can be selected.

.
X Position: Changes the X coordinate of all selected insertions. This data field accepts the % number syntax so values can be added or subtracted to all X coordinates.
.
Y Position: Changes the Y coordinate of all selected insertions. This data field accepts the % number syntax so values can be added or subtracted to all Y coordinates.
.
Theta: changes the Theta value of all selected insertions. This data field accepts the % number syntax so values can be added or subtracted to all rotations.
To change selected components:
1. Select a component insertion(s) in one of the following ways.
.
Select manually with the cursor
