PE Jacket CATV Trunk Coaxial Cable, QR412JCASS Distribution Cable Wtih CCA Inner Conductor

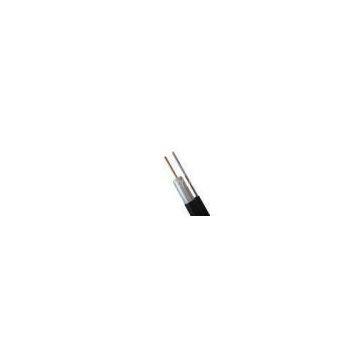

PE Jacket CATV Trunk Coaxial Cable, QR412JCASS Distribution Cable Wtih CCA Inner Conductor thumbnail-1
PE Jacket CATV Trunk Coaxial Cable, QR412JCASS Distribution Cable Wtih CCA Inner Conductor photo-1
Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Libo
Place of Origin:
China
Model Number:
QR412 JCASS
Contact Supplier Request Quote Chat Now
Shaoxing Libo Electric Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Libo
Place of Origin China
Model Number QR412 JCASS
Delivery Time:Within 15 days
Certification:CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration

PE Jacket CATV Trunk Coaxial Cable, QR412JCASS Distribution Cable Wtih CCA Inner Conductor

Mechanical performance:

Minimum bending radius: 6.0 inches/15.2cm

Maximum pulling tension: 150lbs /68kgf

Product description:

Inner conductor is high quality copper clad aluminum (CCA).Dielectric core is made of insulating grade virgin polyethylene; welded aluminum sheet as shield, and medium density PE is used for jacket material.

Physical dimensions

component

inches

mm

Inner conductor

0.089

2.26

Diameter over dielectric

0.362

9.19

Diameter over outer conductor

0.3858

9.80

Outer conductor thickness

0.024

0.305

Diameter over jacket

0.475

12.07

Electrical characteristics:

Capacitance: 15.3±1.0pt/ft.(55±3.0nf/km)

Impedance: 75±2 ohms

Velocity of propagation: 87% nominal

Nominal DC loop resistance@68OF: 2.57 ohms/1000ft (8.43 ohms/km)

Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100ft. (MAX.)

dB/100 meters(MAX.)

5MHZ

0.20

0.65

55MHZ

0.69

2.26

83MHZ

0.86

2.82

211MHZ

1.41

4.62

250MHZ

1.54

5.05

300MHZ

1.70

5.57

350MHZ

1.87

6.13

400MHZ

1.97

6.46

450MHZ

2.11

6.92

500MHZ

2.24

7.34

550MHZ

2.35

7.71

600MHZ

2.47

8.10

750MHZ

2.78

9.12

865MHZ

3.01

9.87

Applications:

QR412 JCA trunk cable’s outer conductor is high quality electric aluminum sheet, this trunk cable is used as main cable and distribution cable for CATV network, such as base station and equipment cabinets. It is applicable in transmission of single and duplex analog signals and as well as duplex digital signals. The trunk cable is also widely used in HFC duplex transmission network.

Competitive Advantage:

The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network. Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China. Libo cab
