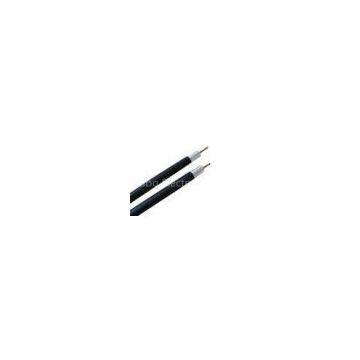

Welded Aluminum Tube Trunk Cable With Messenger, QR320 JCAM Trunk Cables for CATV Network

Product description:

Inner conductor is high quality copper clad aluminum (CCA).Dielectric core is made of insulating grade virgin polyethylene; RF welded aluminum sheet as shield, and medium density PE is used for jacket material. Messenger is made of zinc coated (galvanized) carbon steel wire. The jacketed messenger is connected to the trunk cable member with a web.

Physical dimensions

component

inches

mm

Inner conductor

0.071

1.80

diameter over dielectric

0.294

7.47

diameter over aluminum shield

0.32

8.13

Outer conductor thickness

0.013

0.34

Diameter over jacket

0.395

10.03

Jacket wall thickness

0.0375

0.95

Diameter of messenger wire

0.109

2.77

0.083

2.11

Mechanical performance:

Minimum bending radius: 2.0 inches/50.8mm

Maximum pulling tension: 120lbs /54.5kgf

Minimum breaking strength of messenger: 0.109”/ 1800lbs (816kg)

                                   0.083”/ 1000lbs (453kg)

Electrical characteristics:

Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)

Impedance: 75±2 ohms

Velocity of propagation: 87% nominal

Normal DC loop resistance @68OF: 1.61 Ohms/100ft (5.28 ohms/km)

Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100ft. (MAX.)

dB/100 meters(MAX.)

5MHZ

0.24

0.79

55MHZ

0.84

2.76

83MHZ

1.27

3.51

211MHZ

1.73

5.68

250MHZ

1.86

6.10

300MHZ

2.04

6.69

350MHZ

2.25

7.38

400MHZ

2.38

7.81

450MHZ

2.52

8.27

500MHZ

2.72

8.92

550MHZ

2.85

9.35

600MHZ

2.98

9.78

750MHZ

3.34

10.96

865MHZ

3.62

11.88

1000MHZ

3.89

12.76
