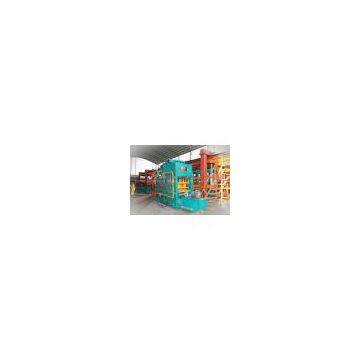

QT6-15 automatic block making machine

block making machine:
Our machines, with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products.

1. Use Germany Siemens PLC control system and Siemens Touch Screen, use Schneider and Omron relays and contactors:

A. Siemens PLC, with great adaptability, guarantees the stability and reliability of the machine;

B. Visualization touch screen, with easy operation;

C. High-quality electrical components from Schneider and Omron;

2. Use Frequency Conversional Control Technology, which controls the block making:

A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency

B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;

C. Power saving: 30%;

3. Use Double high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure

A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;

B. Guarantee production stability;

4. 360° Multi-Shaft Rotating and Compulsory Feeding:

A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed;

B. This uniform feeding is applicable for different kinds of raw materials and moulds;

5. Use heat treatment on moulds and main parts of the machines:

A. Heavy duty machine structure and wear resistant moulds;

B. The hardness reaches up to HRC 52-58;

C. Greatly improves the using lifetime of the machine by 50%....

Technical Features

1) Uses Germany Siemens PLC control system and Siemens Touch Screen.

A. Visualization screen with easy operation;

B. Is able to set up, update and amend the production perimeters, to maximize the production output;

C. Dynamic display of the systems status, automatic trouble shooting and warning notice;

D. Has automatic-locking function, avoiding mechanical accidents caused by operational mistakes;

E. Is able to troubleshoot the machinery via teleservice...

2) Uses high-dynamic proportional and directional valves, which automatically adjust the oil flow and pressure as per specific working requirements, to buffer the hydraulic cylinder when working; uses integrated high-pressure and soft oil pipes, with easy installation;

3) Uses multi-shaft rotating and compulsory feeding, which greatly improves the density and intensity of the blocks, and reduces the feeding time as well;.

4) Integrated structure of vibrating and moulding platforms, which reduces the weight of the machine, and improves the vibrating efficiency;

5) Uses one single motor to drive the vibrator via transmission shaft, avoiding the inconsistency of double motors, so as to save the power;

6) Uses double-line aero vibration-proof system, which reduces the vibrating force on the mechanical parts, improves the using lifetime of the machine, and reduces the noise;

7) High-precision guide bearings are used to assure the precise movement between the tamper head and the mould;

8) Heavy-duty machine frame, which uses high-intensity steel and advanced heat treatment, is wear resistant.
