QT Seies Cement Brick,cement Block Making Machine

QT Seies Cement Brick,cement Block Making Machine photo-1

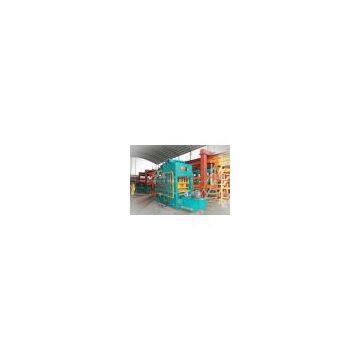

QT Seies Cement Brick,cement Block Making Machine photo-2
US$ 20000 - 20000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
XBM
Place of Origin:
China
Model Number:
QT6-15
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Brand Name XBM
Place of Origin China
Model Number QT6-15

Specifications of cement block making machine:
1) Dimensions: 2850x2200x2950mm
2) Producing cycle: 15 - 20s
3) Pallet size: 830 x 940 x 25mm
4) Total weight: 8.7MT
5) Power: 25kW
6) Vibration force: 40kN

Productivity:
1) 390 x 190 x 190mm: 6pcs/mold; 8,640pcs/8hrs
2) 240 x 180 x 90mm: 12pcs/mold; 16,800pcs/8hrs
3) 240 x 115 x 90mm: 15pcs/mold; 21,600pcs/8hrs
4) 200 x 100 x 60mm: 21pcs/mold; 30,240pcs/8hrs
5) 240 x 115 x 53mm: 36pcs/mold; 51,840pcs/8hrs
6) 121.64cbm/8hrs

Workers needed: 8 - 10
Technical parameters:
1) Power: 32kw

2) Use the pressure: 14MPa
3) Unloaded amplitude: 3.0mm
4) Hold the size of the board: 940 x 780 x 25mm
5) Size of appearance: 968 x 2800 x 2,800mm

Features cement block making machine:
1) Store and divide the material system specially and the computer controls and
stores, breaks and joins the device, fast even cloth uniquely
2) The error rate of the product is low
3) Optimized motive force design, fluid and shake and hit, dispel energy consumption,
computer controls and shakes realize feeding in raw material, high-frequency
conversion, low frequency vertically in step
4) Mould platform is used to make concrete to sufficiently and closely knit in the
one second in two to shake jointly, in order to reach the high strength
5) It makes two systems make sure to have no trouble to operate the advanced
random measuring control system and realize long-range control basically to import
the electric apparatus and hydraulic pressure components and parts, the trouble
is diagnosed
