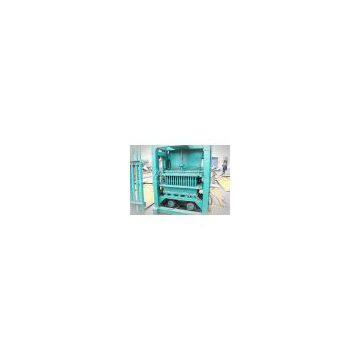

Hydraulic automatic brick making machine

Characters: This fly ask Brick Making Machine with PLC intelligent control.Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesnt need a professional person but only need a simple trainning to the operator.

Product scope: It produces various bricks/blocks including color-face bricks (layered material feeding), through-body tiles, dock linkage blocks, road curb bricks,sod bricks, hydraulic blockshollow blocks, perforated bricks, and standard bricks etc.

Optional configuration:

1. Lift-slab Elevating Conveyor (block stacking machine):

According to the different type of bricks, the finished products will be moved from the discharge transmitter and pilled up automatically 3 to 8 layers by the elevating conveyor, and carried to the maintaining place by the fork lifter truck. It could reduce labor and ground.

2. Colour face material feeder (layered material feeding)

Equipped with color face material feeding device, it could make various color face bricks , through-body Environmental protection bricks, road curb rocks, hydraulic blocks and sod bricks and so on.

Main technical data:

Model: QT6-15

Vibration frequency: 0~4000

Conversion parameter0-60Hz

Molding cycle: 15-25s

Specification of molding box: 850*680mm

Power: 46KW

Weight: 7.5T

Pallet dimension: 850*700*25(mm) Bamboo pallet

Installation dimension: 13500×5000×3500(mm)

Molding capacity:

Hollow block: 6pcs/mold (390*190*190), 11000pcs/day (8hours)

Cellular block: 15pcs/mold (240*115*90), 28000pcs/day(8hour)

Environmental protection block: 21pcs/mold (200*100*60), 30000pcs/day (8hours)

Standard block: 30pcs/mold (238*115*51), 57000pcs/day (8hours
