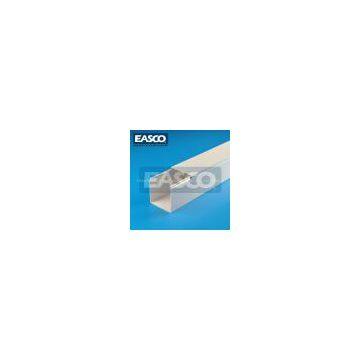

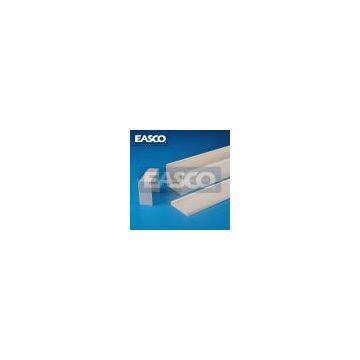

SOLID WIRE DUCT(SDR)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | EASCO | Place of Origin | China | |
| Model Number | SDR |
Product Description
2)Lead Free cable duct.Dust Free.MAX protection
3)For external wiring is not neccessory
| EASCO Solid Wiring Duct. Cable management |
|
Material: Lead-Free PVC Material. Self-extinguishing.UL94 V-0 |
|
Length: 2 Meter (~78") |
|
Part No.: SDR |
Features:
1)Solid Cable Duct features dust-free,maximum protecttion.
2)For external wiring or where wire extraction from duct is not necessary.
3)Aesthetics. Smooth edges.
4)Easy insertion and removal of wire.
6)Non-slip cover prevent slipping of the wire duct cover
Specifications:
| Part No. | WxH | M/PACK | 14AWG/PCS |
| SDR1525 | 15x25 | 300 | 5-12 |
| SDR2025 | 20x25 | 232 | 5-12 |
| SDR2525 | 25x25 | 180 | 10-25 |
| SDR2030 | 20x30 | 192 | 15-25 |
| SDR2530 | 25x30 | 144 | 15-25 |
| SDR3030 | 30x30 | 120 | 15-25 |
| SDR3530 | 35x30 | 112 | 25-30 |
| SDR4030 | 40x30 | 100 | 25-35 |
| SDR3333 | 33x33 | 124 | 20-30 |
| SDR2535 | 25x35 | 144 | 15-25 |
| SDR3535 | 35x35 | 120 | 40-45 |
| SDR5035 | 50x35 | 100 | 55-65 |
| SDR2540 | 25x40 | 124 | 20-25 |
| SDR4040 | 40x40 | 80 | 60-70 |
| SDR6040 | 60x40 | 80 | 100-115 |
| SDR2545 | 25x45 | 128 | 20-25 |
| SDR3345 | 33x45 | 84 | 40-55 |
| SDR4545 | 45x45 | 92 | 60-70 |
| SDR6545 | 65x45 | 72 | 80-90 |
| SDR2550 | 25x50 | 100 | 20-25 |
| SDR3050 | 30x50 | 120 | 30-35 |
| SDR3550 | 35x50 | 120 | 40-45 |
| SDR4050 | 40x50 | 100 | 50-60 |
| SDR4550 | 45x50 | 80 | 60-70 |
| SDR5050 | 50x50 | 80 | 80-90 |
| SDR5550 | 55x50 | 72 | 80-90 |
| SDR6050 | 60x50 | 68 | 85-95 |
| SDR8050 | 80x50 | 52 | 150-170 |
| SDR10050 | 100x50 | 40 | 200-240 |
| SDR2560 | 25x60 | 132 | 40-45 |
| SDR3560 | 35x60 | 108 | 40-55 |
| SDR4060 | 40x60 | 96 | 100-115 |
| SDR4560 | 45x60 | 84 | 113-118 |
| SDR5560 | 55x60 | 72 | 115-130 |
| SDR6060 | 60x60 | 60 | 120-135 |
| SDR8060 | 80x60 | 44 | 180-240 |
| SDR10060 | 100x60 | 32 | 190-250 |
| SDR2565 | 25x65 | 132 | 40-45 |
| SDR3365 | 33x65 | 108 | 60-75 |
| SDR4565 | 45x65 | 84 | 110-120 |
| SDR6565 | 65x65 | 60 | 180-200 |
| SDR2580 | 25x80 | 100 | 100-120 |
| SDR3080 | 30x80 | 80 | 110-130 |
| SDR3580 | 35x80 | 72 | 120-140 |
| SDR4080 | 40x80 | 56 | 120-135 |
| SDR4580 | 45x80 | 56 | 130-140 |
| SDR5080 | 50x80 | 48 | 150-190 |
| SDR5580 | 55x80 | 48 | 150-190 |
| SDR6080 | 60x80 | 40 | 180-210 |
| SDR8080 | 80x80 | 32 | 240-290 |
| SDR10080 | 100x80 | 24 | 260-350 |
| SDR12080 | 120x80 | 20 | 260-350 |
| SDR14080 | 140x80 | 16 | 300-400 |
| SDR33100 | 33x100 | 72 | 110-160 |
| SDR40100 | 40x100 | 56 | 130-170 |
| SDR48100 | 48x100 | 48 | 220-250 |
| SDR50100 | 50x100 | 40 | 220-250 |
| SDR60100 | 60x100 | 40 | 240-290 |
| SDR70100 | 70x100 | 32 | 250-350 |
| SDR80100 | 80x100 | 32 | 260-350 |
| SDR100100 | 100x100 | 24 | 300-400 |
| SDR120100 | 120x100 | 16 | 330-430 |
| SDR160100 | 160x100 | 12 | 360-460 |
| SDR100150 | 100x150 | 12 | 330-450 |
EASCO Solid Side Wiring Cable Duct
Remarks:
*Also supply plastic wire duct manufactured by rigid PVC, please refer to model: SD.
*Wire duct is supplied in lengths of 2m(~78"),complete with covers, in complete packages only.
*Special color, size, length upon request of reasonable quantity.
*EASCO also supply CONNECTORS for Solid Ducts.
CERTIFICATES FOR WIRING DUCT.
UL:E354081 WIRE DUCT. CSA UL:E354081 WIRING TRUNKING. ROHS FOR HALOGEN FREE WIRING CABLE DUCT. ROHS: LEAD-FREE PVC CABLE DUCT. ROHS: FLEXIBLE WIRING DUCT. CE: SLOTTED WIRING CABLE TRAY.UV EXPOSURE TEST REPORT FOR WIRE DUCT. UL94V0:WIRE DUCT. TEMPERATURE TEST REPORT :CABLE TRUNKING SLOTTED. REACH :CABLE TRAY CABLE TRUNKING.REACH :CABLE CHANNEL.
