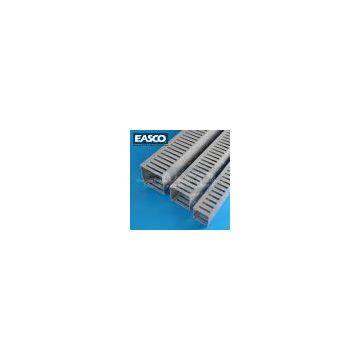

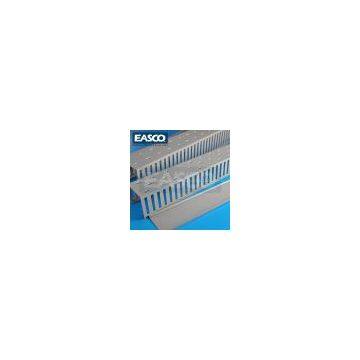

Cable Duct Slotted Tray
- 100000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | EASCO | Place of Origin | China | |
Product Description
2)Close slot wire duct.
3)Wide Square slot varying from 8.5 to 10mm
| Desp: EASCO Close Slotted Wire Duct , Cable Management |
|
Material: Lead-Free PVC Material. Self-extinguishing.UL94 V-0 |
|
Length: 2 Meter (~78") |
|
Part No.: WDCR |
FEATURES:
1)Lead-free material eliminates health concerns with PVC which contains lead.
2)Easy insertion and removal of cover , wire and cable.
3)Smooth edges can protect your hands and wiring insulation free from burrs or
sharp edges without abrasion.
4)With mounting holes for easy mounting.
5)Non-slip cover prevent slipping of the cover.
6)Flush cover design holds more wires than traditional duct.
7)Wire duct in sizes varying from 25x40mm to 160x100mm. Available with square
slot varying from 8.5mm to 10mm.
SPECIFICATIONS:
| Part No. | WxH | M/PACK | 14AWG/PCS |
| WDCR1525 | 15x25 | 300 | 5-12 |
| WDCR2025 | 20x25 | 230 | 5-12 |
| WDCR2525 | 25x25 | 180 | 10-25 |
| WDCR2030 | 20x30 | 192 | 15-25 |
| WDCR2530 | 25x30 | 144 | 15-25 |
| WDCR3030 | 30x30 | 120 | 15-25 |
| WDCR4030 | 40x30 | 100 | 25-35 |
| WDCR2540 | 25x40 | 124 | 20-25 |
| WDCR4040 | 40x40 | 80 | 60-70 |
| WDCR6040 | 60x40 | 80 | 100-115 |
| WDCR2550 | 25x50 | 100 | 20-25 |
| WDCR3050 | 30x50 | 120 | 30-35 |
| WDCR3550 | 35x50 | 120 | 40-45 |
| WDCR4050 | 40x50 | 100 | 50-60 |
| WDCR4550 | 45x50 | 80 | 60-70 |
| WDCR5050 | 50x50 | 80 | 80-90 |
| WDCR5550 | 55x50 | 72 | 80-90 |
| WDCR6050 | 60x50 | 68 | 85-95 |
| WDCR8050 | 80x50 | 52 | 150-170 |
| WDCR10050 | 100x50 | 40 | 200-240 |
| WDCR2560 | 25x60 | 132 | 40-45 |
| WDCR3560 | 35x60 | 108 | 40-55 |
| WDCR4060 | 40x60 | 93 | 100-115 |
| WDCR4560 | 45x60 | 84 | 113-118 |
| WDCR5560 | 55x60 | 72 | 115-130 |
| WDCR6060 | 60*60 | 60 | 120-135 |
| WDCR8060 | 80x60 | 44 | 180-240 |
| WDCR10060 | 100x60 | 32 | 190-250 |
| WDCR2580 | 25x80 | 100 | 100-120 |
| WDCR3080 | 30x80 | 80 | 110-130 |
| WDCR3580 | 35x80 | 72 | 120-140 |
| WDCR4080 | 40x80 | 56 | 120-135 |
| WDCR4580 | 45x80 | 56 | 130-140 |
| WDCR5080 | 50x80 | 48 | 150-190 |
| WDCR5580 | 55x80 | 48 | 150-190 |
| WDCR6080 | 60x80 | 40 | 180-210 |
| WDCR8080 | 80x80 | 32 | 240-290 |
| WDCR10080 | 100x80 | 24 | 260-350 |
| WDCR12080 | 120x80 | 24 | 260-350 |
| WDCR14080 | 140x80 | 16 | 300-400 |
| WDCR33100 | 33x100 | 72 | 110-160 |
| WDCR40100 | 40x100 | 56 | 130-170 |
| WDCR48100 | 48x100 | 48 | 220-250 |
| WDCR50100 | 50x100 | 40 | 220-250 |
| WDCR60100 | 60x100 | 40 | 240-290 |
| WDCR70100 | 70x100 | 32 | 250-350 |
| WDCR80100 | 80x100 | 32 | 260-350 |
| WDCR100100 | 100x100 | 24 | 300-400 |
| WDCR120100 | 120x100 | 16 | 330-430 |
| WDCR160100 | 160x100 | 12 | 360-460 |
REMARKS:
*Also supply wire duct manufactured by rigid PVC, please refer to model: WDC.
*Wire duct is supplied in lengths of 2m(~78"),complete with covers, in complete packages only.
*Special color, size, length upon request of reasonable quantity.
CERTIFICATES FOR WIRING DUCT.
UL:E354081 WIRE DUCT. CSA UL:E354081 WIRING TRUNKING. ROHS FOR HALOGEN FREE WIRING CABLE DUCT. ROHS: LEAD-FREE PVC CABLE DUCT. ROHS: FLEXIBLE WIRING DUCT. CE: SLOTTED WIRING CABLE TRAY.UV EXPOSURE TEST REPORT FOR WIRE DUCT. UL94V0:WIRE DUCT. TEMPERATURE TEST REPORT :CABLE TRUNKING SLOTTED. REACH :CABLE TRAY CABLE TRUNKING.REACH :CABLE CHANNEL.
