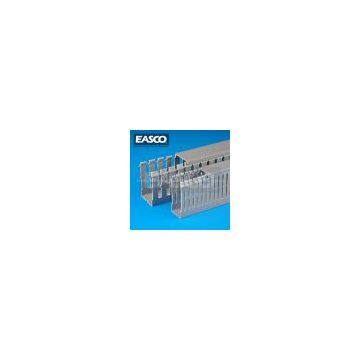

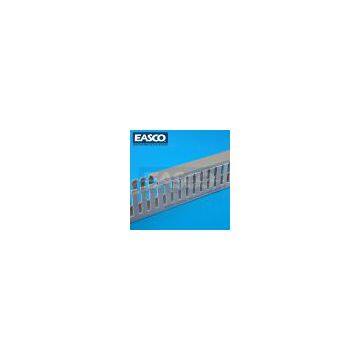

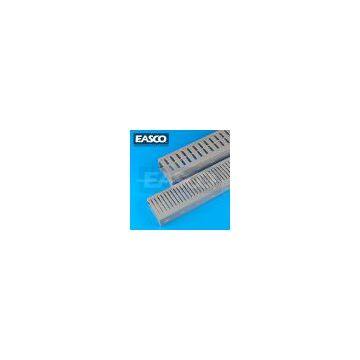

EASCO Electric WiringDuct With Pinch Points
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | EASCO | Place of Origin | China | |
| Model Number | GA |
Product Description
1)Open slot.Pinch Points.Aesthetics.
2)To separate the wires and avoid the wires tangled.
| Open slot wiring duct (Rigid PVC,pinch points) for wire management. |
| Material: Lead-Free PVC Material. Self-extinguishing.UL94 V-0 |
|
Length: 2 Meter (~78") |
|
Part No.: GA |
FEATURES:
1)Rigid PVC wire duct.
2)To separate the wires and avoid the cables tangled in the duct.
3)Aesthetics. Easy insertion and removal of wire and cable.
4)Smooth edges can protect your hands and wiring insulation free from burrs or sharp edges without abrasion.
5)With mounting holes for easy mounting of EASCO wiring duct.
6)Non-slip cover prevent slipping of the duct cover.
7)Cable Duct with Pinch Points.
SPECIFICATIONS:
| Part No. | WxH | M/PACK | 14AWG/PCS |
| GA2580 | 25x80 | 100 | 100-120 |
| GA3080 | 30x80 | 80 | 110-130 |
| GA3580 | 35x80 | 72 | 120-140 |
| GA4080 | 40x80 | 56 | 120-135 |
| GA4580 | 45x80 | 56 | 130-140 |
| GA5080 | 50x80 | 48 | 150-190 |
| GA5580 | 55x80 | 48 | 150-190 |
| GA6080 | 60x80 | 40 | 180-210 |
| GA8080 | 80x80 | 32 | 240-290 |
| GA10080 | 100x80 | 24 | 260-350 |
| GA12080 | 120x80 | 20 | 260-350 |
| GA14080 | 140x80 | 16 | 300-400 |
| GA33100 | 33x100 | 72 | 110-160 |
| GA40100 | 40x100 | 56 | 130-170 |
| GA48100 | 48x100 | 48 | 220-250 |
| GA50100 | 50x100 | 40 | 220-250 |
| GA60100 | 60x100 | 40 | 240-290 |
| GA70100 | 70x100 | 32 | 250-350 |
| GA80100 | 80x100 | 32 | 260-350 |
| GA100100 | 100x100 | 24 | 300-400 |
| GA120100 | 120x100 | 16 | 330-430 |
| GA160100 | 160x100 | 12 | 360-460 |
Remarks:
*Also supply wire duct manufactured by rigid PVC material, please refer to model: GA.
*Wire duct is supplied in lengths of 2m(~78"),complete with covers, in complete packages only.
*Special color, size, length upon request of reasonable quantity.
*EASCO also supply Wiring Accessories:
1)Snap Rivet features EASY MOUNTING.
2)Wire duct Cutter features Fast cutting.
CERTIFICATES FOR WIRING DUCT.
UL:E354081 WIRE DUCT. CSA UL:E354081 WIRING TRUNKING. ROHS FOR HALOGEN FREE WIRING CABLE DUCT. ROHS: LEAD-FREE PVC CABLE DUCT. ROHS: FLEXIBLE WIRING DUCT. CE: SLOTTED WIRING CABLE TRAY.UV EXPOSURE TEST REPORT FOR WIRE DUCT. UL94V0:WIRE DUCT. TEMPERATURE TEST REPORT :CABLE TRUNKING SLOTTED. REACH :CABLE TRAY CABLE TRUNKING.REACH :CABLE CHANNEL.
