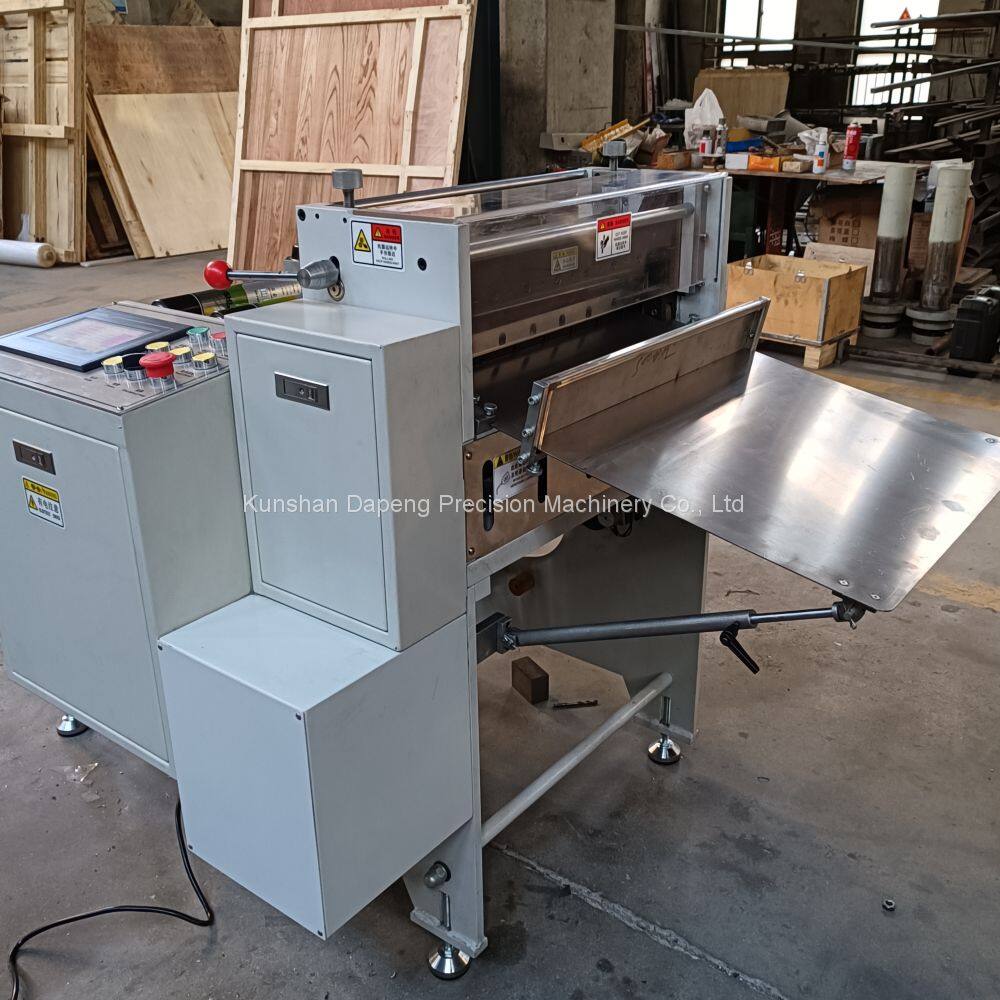

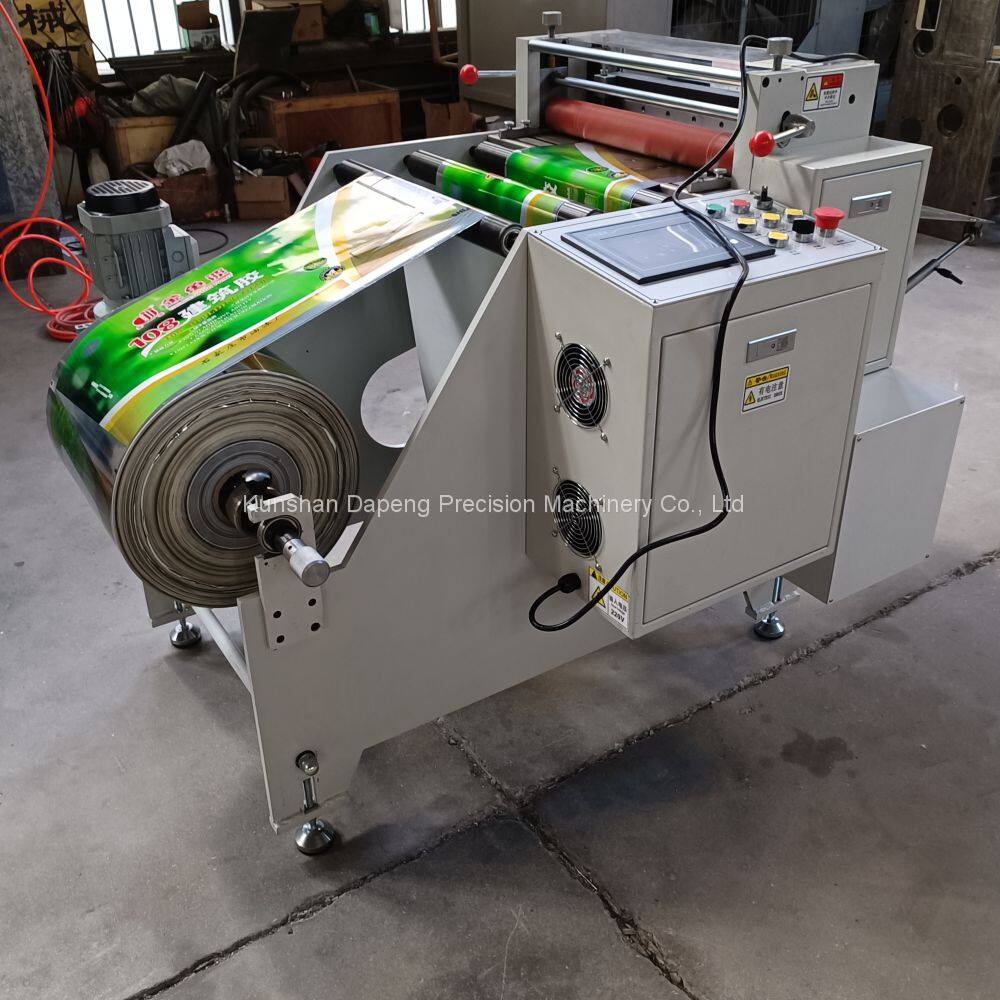

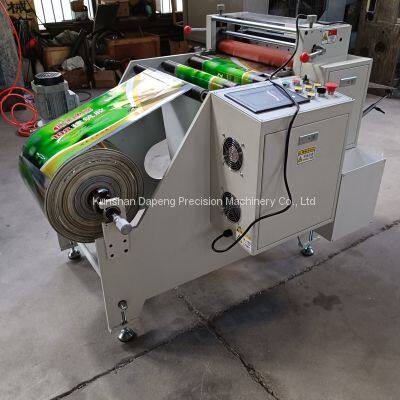

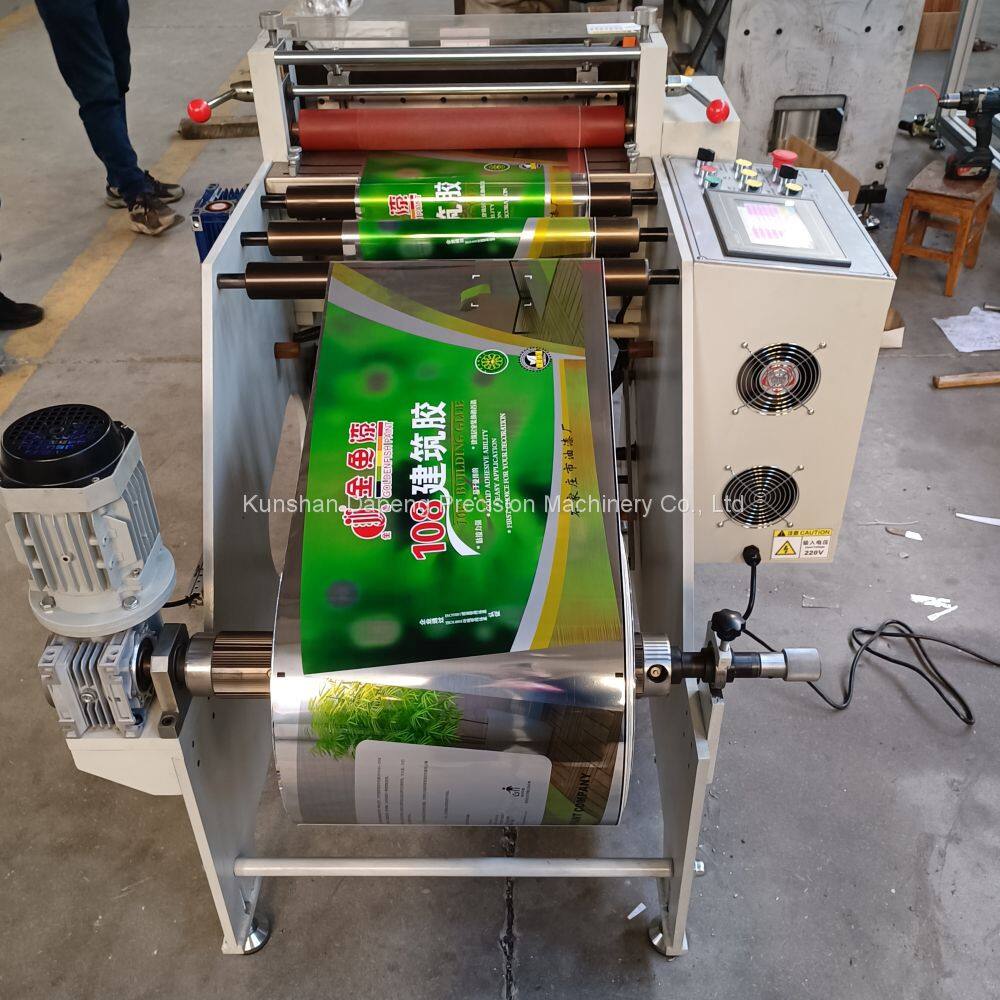

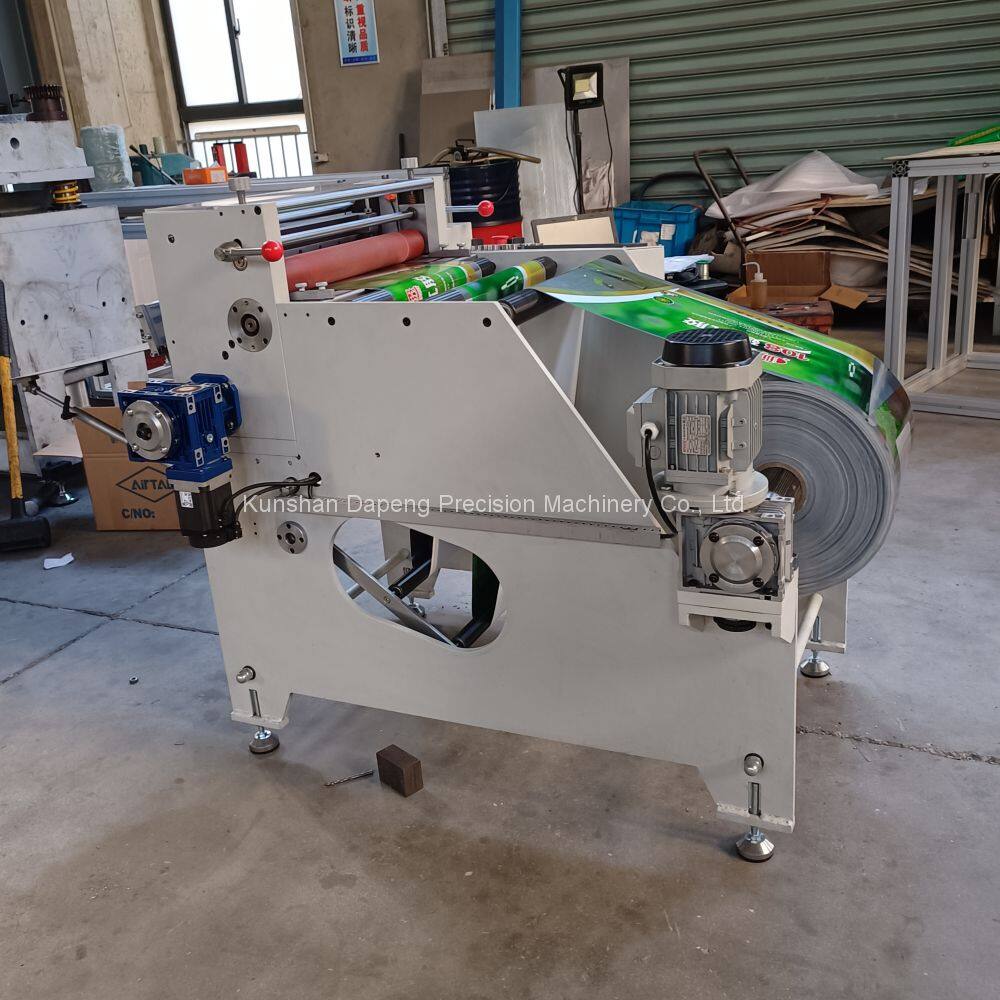

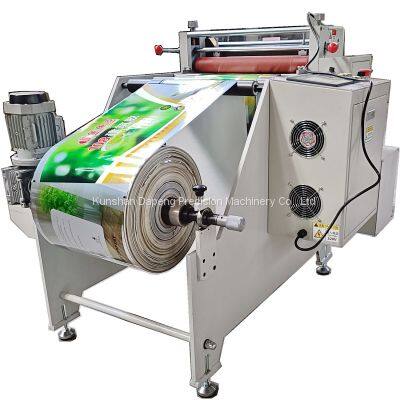

360 sheet cutter 500 sheet cutter electronic tape cutting mahcine
| Functional Characteristics: | ||||||
| Machine adopts imported PLC overall control with touch screen display, simple and ease of operation. Fast cutting speed, high precision. | ||||||
| Purpose: | ||||||
| It is applicable for the cutting of PVC film, insulation sheet, Mylar, foam, industrial tape, electronic tape and various inch setting, entirely broken and partially broken electronic materials.
| ||||||
Below is 5 standard size details of this roll to sheet cutting machine
Model |
360 Sheet cutter |
500 Sheet cutter |
600 Paper Roll to Sheet Cutting Machine |
Max Feeding Width ( mm ) |
360 |
500 |
600mm |
Main Engineer Power ( w ) |
150 |
400 |
750 |
Speed ( t/m ) |
110 |
110 |
100 |
Size ( mm ) |
1150*1050*1230 |
1250*1090*1250 |
1300*1200*1250mm |
Weight ( kg ) |
400 |
500 |
700 |
Precision ( mm ) |
±0.05 |
±0.05 |
0.05mm |
Power |
220V 50HZ |
220V 50HZ |
220V or 380V |
| Model | DP-1000 sheet cutting machine | DP-800 paper cutting machine |
| Voltage | 220V | 4HP |
| Power | 4HP | 380V |
| N.W. | 1800KG | 1500KG |
| Sheeting Length | 0.1-9999.9mm | 0.1-9999.9mm |
| Sheeting width | 1-1000mm | 1-800mm |
| Sheeting precision | ±0.05mm | ±0.05mm |
| (0-180mm)Sheeting speed -- | 75(cut/min) | 75(cut/min) |
| Machine size | 1950x1800x1350mm | 1700x1650x1350mm |
| unwinding shaft diameter | 3 inch | 3 inch |
| unwinding diameter | max 600mm | max 600mm |
PLC ----- use famous brand Mitsubishi which you will easily maintenence in your local place
Machine body ----- 16mm thickness steel wall for 360mm , 20mm for width 800mm, it is very solid that to make sure machine stable when running
it is whole part of steel sheets , not welding together
PULLING ROLLER ---- Thick PU rubber coated and won't scratch the material
Guiding roller ------- Aluminum shaft be polished and hard anodized , very smooth and never harm material
Cutting Blade ----SKD11 material to make sure the cutter use very very long time and cutting material perfect edge at cutting part
Korea company made
Cutting motor ------------- Taiwan Tonglee gear motor
Safety cover ---- have safety cover at cutting blade , and sensor at it , no cover will not work , to protect the operator safety
12 month electronic parts guarantee after machine arrived your place
machine are use famous brand of electric parts which are easy to maintenance
