TPV 24V & 48V Series DC/DC Converter Power Supply

Name: TPV 24V & 48V Series DC/DC Converter Power Supply
Brand: TOPPOWER
SKU: 146601784
Availability: InStock

Guangzhou Top Power Electronics Technology Co., Ltd.

US$ 0.79 ≥89999999 Pieces

Key Specifications

Brand Name:

TOPPOWER

Place of Origin:

China

Model Number:

TPV 24V & 48V Series

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name TOPPOWER

Place of Origin China

Model Number TPV 24V & 48V Series

Weight 2.1g

Application all

Frequency 85%

Rated Voltage 3.3,5,12,15,24

Rated Torque 5%

Rated Input Power 1W

No-Load Speed /

Max. Drilling Diameter /

FEATURES
RoHS compliant、CE certification		Efficiency to 80%			Power density up to 0.85W/cm³
Single or dual output		UL 94V-0 package material			Power sharing on dual output
Footprint from 1.17cm²		Industry standard pinout			3KVDC isolation (1 minute)
Input voltage: 24V, 48V		Output voltage: 3.3V,5V, 9V, 12V, 15V / ±5V, ±9V, ±12V, ±15V			Operating temperature: -40ºC to 105ºC
SELECTION GUIDE
Part Number	Nominal Input Voltage		Output Voltage	Output Current(Max./Min)	Efficiency	Package Style
Part Number	V		V	mA	%	Package Style
TPV2405DA	24		5	200/20	71	DIP
TPV2409DA	24		9	111/11.1	79	DIP
TPV2412DA	24		12	84/8.4	80	DIP
TPV2415DA	24		15	67/6.7	81	DIP
TPV2403SA	24		3.3	303/30.3	70	SIP
TPV2405SA	24		5	200/20	71	SIP
TPV2409SA	24		9	111/11.1	79	SIP
TPV2412SA	24		12	84/8.4	80	SIP
TPV2415SA	24		15	67/6.7	81	SIP
TPV2424SA	24		24	42/4.2	77	SIP
TPV4805DA	48		5	200/20	71	DIP
TPV4809DA	48		9	111/11.1	79	DIP
TPV4812DA	48		12	84/8.4	80	DIP
TPV4815DA	48		15	67/6.7	81	DIP
TPV4803SA	48		3.3	303/30.3	71	SIP
TPV4805SA	48		5	200/20	71	SIP
TPV4809SA	48		9	111/11.1	79	SIP
TPV4812SA	48		12	84/8.4	80	SIP
TPV4815SA	48		15	67/6.7	81	SIP
TPV2405D	24		±5	±100/±10	71	DIP
TPV2409D	24		±9	±56/±5.6	79	DIP
TPV2412D	24		±12	±41/±4.1	80	DIP
TPV2415D	24		±15	±33/±3.3	81	DIP
TPV2405S	24		±5	±100/±10	71	SIP
TPV2409S	24		±9	±56/±5.6	79	SIP
TPV2412S	24		±12	±41/±4.1	80	SIP
TPV2415S	24		±15	±33/±3.3	81	SIP
TPV4805D	48		±5	±100/±10	71	DIP
TPV4809D	48		±9	±56/±5.6	79	DIP
TPV4812D	48		±12	±41/±4.1	80	DIP
TPV4815D	48		±15	±33/±3.3	81	DIP
TPV4805S	48		±5	±100/±10	71	SIP
TPV4809S	48		±9	±56/±5.6	79	SIP
TPV4812S	48		±12	±41/±4.1	80	SIP
TPV4815S	48		±15	±33/±3.3	81	SIP
Add suffix “P” for continuous short circuit protection, for example TPV2405SAP.



Basic Terms:
1	Type	TPV 24V & 48V Series
2	Efficiency	to 80%
3	Power density	0.85W/cm3
4	Isolation voltage	3kVDC isolation (1 minute)
5	Related certificate	RoHS compliant
6	Footprint	Footprint from 1.17cm2
7	Package material	UL 94V-0 package material

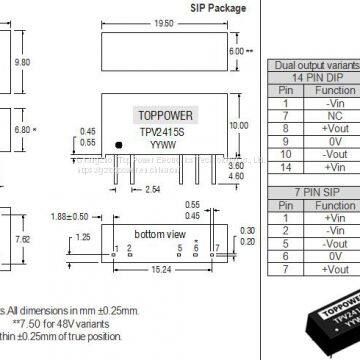

8	Single output variants	7 PIN SIP	1(+Vin),2(-Vin),5(-Vout),6(OV),7(+Vout)
9	14 PIN DIP	1(+Vin),2(-Vin),5(-Vout),7(+Vout)
10	Dual output variants	7 PIN SIP	1(+Vin),2(-Vin),5(-Vout),6(OV),7(+Vout)
11	14 PIN DIP	1(-Vin),7(NC),8(+Vout),9(OV),10(-Vout),14(+Vin)
12	Input voltage	24V, 48V
13	Output voltage	5V, 9V, 12V, 15V
14	MOQ	1 pc (no ltimited for considered the long coorperation relations)
15	Terms of payment	Western Union,T/T
16	Terms of delivery	DHL / UPS / EMS / TNT
17	Delivery time	7-12 working days
