5W AC/DC Converters power supply

FOB Price

USD $1

≥3 Piece

Supply Ability 3 Piece / Pieces per Month
Port gz
Payment TermsT/T L/C
Delivery Detail25 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Top Power	Place of Origin	China
Model Number	TP04AB Series	Weight	55
Application	y	Frequency	hz
Rated Voltage	vdc	Rated Torque	n
Rated Input Power	n	No-Load Speed	n
Max. Drilling Diameter	n

Product Description

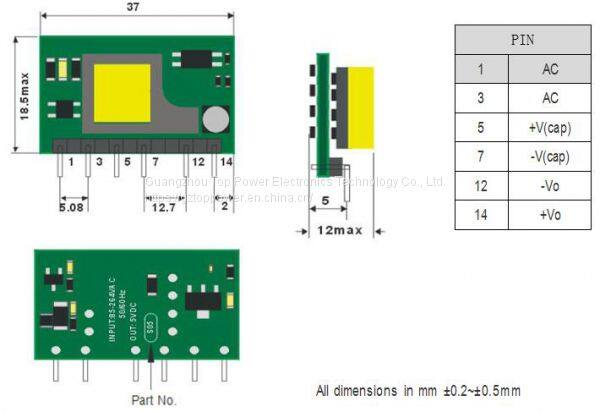

TP05AL series is an economical open frame AC/DC switching power supply,The rated output power is 5W
with wide input voltage range, for both AC input and DC input application. High reliability, Low power consumption, safety isolation .Widely used in industrial control and electrical instrumentation, smart home,etc.

Universal input voltage range Both for AC and DC input voltage Low Ripple &Noise

High efficiency, high power density, miniature dimensions Low power consumption≤50mW

Overheat protection ,Over current protection

International standard Footprint&Pinouts Industrial product  design Operating temperature : -40℃ to 70℃

Part Number Input Voltage Output

Voltage （VAC) Voltag（VDC) Current（A）

Rated Range values

TP05AL220S03W 220(4:1) 85-305 3.3 1.00

TP05AL220S05W 220(4:1) 85-305 5 1.00

TP05AL220S09W 220(4:1) 85-305 9 0.55

TP05AL220S12W 220(4:1) 85-305 12 0.42

TP05AL220S15W 220(4:1) 85-305 15 0.33

TP05AL220S24W 220(4:1) 85-305 24 0.21
