| Summary Description: | ||||||||||
|
1W single or Dual Output 3kVDC Isolated DC/DC Converters power supply The TPA series is the parts with high efficience and offers better regulation performance within 5% for applications where a wide output voltage variation can not be tolerated. They are very good for providing dual rail supplies, SIP type is available. | ||||||||||
| Basic Terms: | ||||||||||
| 1 | Type | TPA Series | ||||||||
| 2 | Efficiency | up to 78% | ||||||||
| 3 | Power density | 1.36W/cm3 | ||||||||
| 4 | Pinout | Footprint over pins 1.64cm2 | ||||||||
| 5 | Related certificate | RoHS compliant | ||||||||
| 6 | Wide temperature | at full 1 Watt load, –40°C to 85°C | ||||||||
| 7 | Package material | UL 94V-0 package material | ||||||||

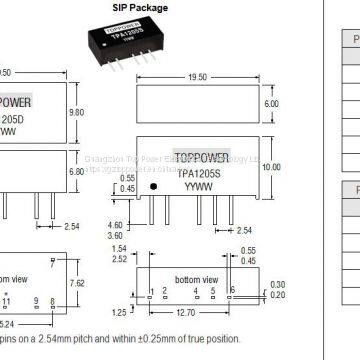

| 9 | PIN connections/7PIN SIP | 1(+Vin),2(-Vin),4(-Vout),5(OV)6(+Vout) | ||||||||
| 10 | Input voltage | 3.3V, 5V, 12V | ||||||||
| 11 | Output voltage | 3.3V, 5V, 9V, 12V,15V | ||||||||
| 12 | MOQ | 1 pc (no ltimited for considered the long coorperation relations) | ||||||||
| 13 | Terms of payment | Western Union,T/T | ||||||||
| 14 | Terms of delivery | DHL / UPS / EMS / TNT | ||||||||
| 15 | Delivery time | 7 working days | ||||||||
FEATURES | ||
RoHS compliant |
Efficiency up to 80% |
Power density up to 0.85W/cm3 |
Operating temperature :-40℃ to 105℃ |
Single and dual output from a single input rail |
UL 94V-0 package material |
Power sharing on output |
3KVDC isolation |
Industry standard pinout |
Input voltage: 3.3V,5V,12V,15V |
Output voltage :3.3V,5V,9V,12V,15V,24V / ±5V,±9V,±12V,±15V,±24V |
CE certification |
SELECTION GUIDE | |||||
Part Number |
Nominal Input Voltage |
Output Voltage |
Output Current (Max./Min) |
Efficiency |
Package Style |
V |
V |
mA |
% |
||
TPA0303DA |
3.3 |
3.3 |
303/30.3
|
72
|
DIP |
TPA0305DA |
3.3 |
5 |
200/20 |
74 |
DIP |
TPA0505DA |
5 |
5 |
200/20 |
68 |
DIP |
TPA0509DA |
5 |
9 |
111/11.1 |
76 |
DIP |
TPA0512DA |
5 |
12 |
83/8.3 |
79 |
DIP |
TPA0515DA |
5 |
15 |
67/6.7 |
78 |
DIP |
TPA0524DA |
5 |
24 |
42/4.2 |
81 |
DIP |
TPA1203DA |
12 |
3.3 |
303/30.3 |
73 |
DIP |
TPA1205DA |
12 |
5 |
200/20 |
68 |
DIP |
TPA1209DA |
12 |
9 |
111/11.1 |
74 |
DIP |
TPA1212DA |
12 |
12 |
83/8.3 |
77 |
DIP |
TPA1215DA |
12 |
15 |
67/6.7 |
75 |
DIP |
TPA1505DA |
15 |
5 |
200/20 |
71 |
DIP |
TPA1512DA |
15 |
12 |
111/11.1 |
77 |
DIP |
TPA1515DA |
15 |
15 |
67/6.7 |
80 |
DIP |
TPA0505D |
5 |
±5 |
±100/±10
|
67
|
DIP |
TPA0509D |
5 |
±9 |
±56/±5.6
|
76
|
DIP |
TPA0512D |
5 |
±12 |
±43/±4.3
|
79
|
DIP |
TPA0515D |
5 |
±15 |
±33/±3.3
|
78
|
DIP |
TPA0524D |
5 |
±24 |
±21/±2.1 |
81 |
DIP |
TPA0505S |
5 |
±5 |
±100/±10
|
67
|
SIP |
TPA0509S |
5 |
±9 |
±56/±5.6
|
76
|
SIP |
TPA0512S |
5 |
±12 |
±43/±4.3
|
79
|
SIP |
TPA0515S |
5 |
±15 |
±33/±3.3
|
78
|
SIP |
TPA0524S |
5 |
±24 |
±21/±2.1 |
81 |
SIP |
TPA1205D |
12 |
±5 |
±100/±10
|
68
|
DIP |
TPA1209D |
12 |
±9 |
±56/±5.6
|
74
|
DIP |
TPA1212D |
12 |
±12 |
±43/±4.3
|
77
|
DIP |
TPA1215D |
12 |
±15 |
±33/±3.3
|
75
|
DIP |
TPA1224D |
12 |
±24 |
±21/±2.1 |
81 |
DIP |
TPA1205S |
12 |
±5 |
±100/±10
|
68
|
SIP |
TPA1209S |
12 |
±9 |
±56/±5.6
|
74
|
SIP |
TPA1212S |
12 |
±12 |
±43/±4.3
|
77
|
SIP |
TPA1215S |
12 |
±15 |
±33/±3.3
|
75
|
SIP |
TPA1224S |
12 |
±24 |
±21/±2.1 |
80 |
SIP |
TPA1505D |
15 |
±5 |
±100/±10
|
71
|
DIP |
TPA1509D |
15 |
±9 |
±56/±5.6
|
74
|
DIP |
TPA1512D |
15 |
±12 |
±43/±4.3
|
77
|
DIP |
TPA1515D |
15 |
±15 |
±33/±3.3
|
80
|
DIP |
TPA1524D |
15 |
±24 |
±21/±2.1 |
81 |
DIP |
TPA1505S |
15 |
±5 |
±100/±10
|
71
|
SIP |
TPA1512S |
15 |
±12 |
±43/±4.3
|
77
|
SIP |
TPA1515S |
15 |
±15 |
±33/±3.3
|
80
|
SIP |
Add suffix “P” for continuous short circuit protection, for example TPA0505SP. | |||||
SELECTION GUIDE | |||||
Part Number |
Nominal Input Voltage |
Output Voltage |
Output Current (Max./Min) |
Efficiency |
Package Style |
V |
V |
mA |
% |
||
TPA2405DA |
24 |
5 |
200/20 |
69 |
DIP |
TPA2409DA |
24 |
9 |
111/11.1 |
78 |
DIP |
TPA2412DA |
24 |
12 |
83/8.3 |
81 |
DIP |
TPA2415DA |
24 |
15 |
66/6.6 |
81 |
DIP |
TPA2424DA |
24 |
24 |
42/4.2 |
81 |
DIP |
TPA4805DA |
48 |
5 |
200/20 |
69 |
DIP |
TPA4809DA |
48 |
9 |
111/11.1 |
80 |
DIP |
TPA4812DA |
48 |
12 |
83/8.3 |
80 |
DIP |
TPA4815DA |
48 |
15 |
66/6.6 |
79 |
DIP |
TPA2405D |
24 |
±5 |
±100/±10 |
69
|
DIP |
TPA2409D |
24 |
±9 |
±56/±5.6 |
78
|
DIP |
TPA2412D |
24 |
±12 |
±41/±4.1 |
81
|
DIP |
TPA2415D |
24 |
±15 |
±32/±3.2 |
81
|
DIP |
TPA2424D |
24 |
±24 |
±21/±2.1 |
81 |
DIP |
TPA2405S |
24 |
±5 |
±100/±10 |
69
|
SIP |
TPA2409S |
24 |
±9 |
±56/±5.6 |
78
|
SIP |
TPA2412S |
24 |
±12 |
±42/±4.2 |
81
|
SIP |
TPA2415S |
24 |
±15 |
±34/±3.4 |
80
|
SIP |
TPA2424S |
24 |
±24 |
±21/±2.1 |
81 |
SIP |
TPA4805D |
48 |
±5 |
±100/±10 |
69
|
DIP |
TPA4809D |
48 |
±9 |
±56/±5.6 |
80
|
DIP |
TPA4812D |
48 |
±12 |
±42/±4.2 |
80
|
DIP |
TPA4815D |
48 |
±15 |
±34/±3.4 |
79
|
DIP |
TPA4805S |
48 |
±5 |
±100/±10 |
70
|
SIP |
TPA4809S |
48 |
±9 |
±56/±5.6 |
79
|
SIP |
TPA4812S |
48 |
±12 |
±43/±4.3 |
79
|
SIP |
TPA4815S |
48 |
±15 |
±33/±3.3 |
79
|
SIP |
Add suffix “P” for continuous short circuit protection, for example TPA2405SP. | |||||
