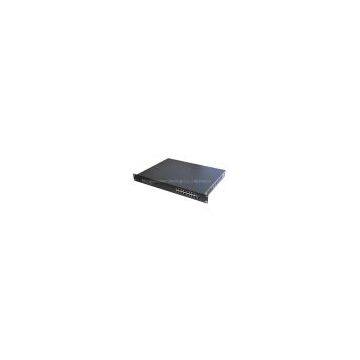

SinoV-PSE-16-M-AF is a 17-port network powered 10/100M self-adapting Ethernet switch. It has a common gigabit UPLINK port to connect to the up level network device, such as common switch and router. It has 16 POE output ports which all match IEEE802.3af standard. Each POE port can offer max.15.4W power. All ports support Auto MDI/ MDIX function.

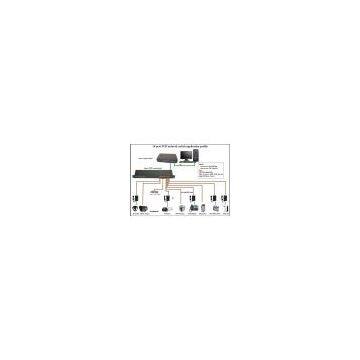

SinoV-PSE-16-M-AF offers a simple economical,high performance solution, compatible with 100M networks. It is very easy to install, and to operate and provides flexibility to improve workgroup performances. All the advantages show that this switch is the best choice to improve the sever efficiency. The 16 PSE ports simultaneously offer data transmit channels and supply power for routers, switches, wireless APs, IP phones, industrial network terminals, IP cameras and other equipments. It provides the power supply to these appliances without the necessity of separate power cables, improves the reliability and simplifies the installation of the Ethernet power system.
2 Compliance IEEE802.3af for POE
3 it have17 ports of half duplex /full duplex self-adapting RJ-45,with 100Mbps for each ports.16 POE ports,which can automatically identify the power ( max power as 15.4W of each)
4 Each port supports MDI/MDIX, which can automatically adjust the buffer to balance the Ethernet loading and to avoid data package missing.
5 Each port has auto detecting and correcting polarity ability
6 Support MAC address auto-learning and auto-aging
7 Panel lamp monitors the working status and helps to resolve faults easily
7 Highly insure the data integrality and speed matching
9 Highest speed for data transmitting and data filtering
10 Strong compatibility in Ethernet application to keep user lowest cost
|
General
|
|
|
Standards
|
IEEE802.3 10BASE-T for Ethernet
IEEE802.3u 100BASE-TX for fast Ethernet
IEEE802.3af POE
|
|
Protocol
|
CSMA/CD Ethernet
|
|
Data Transmit Rate
|
Ethernet:10Mbps(half-duplex)20Mbps(duplex)
Fast Ethernet:100Mbps(half-duplex)200Mbps(duplex)
|
|
Topology Structure
|
Star topology
|
|
Physical Medium
|
10BASE-T:
CAT3,4,5 UTP(max. length 100m )
EIA/TIA-568 100ohm STP(max. length 100m)
100BASE-TX:
CAT 5 or up UTP(max. length 100m)
EIA/TIA-568 100ohm STP(max length 100m)
|
|
The number of Port
|
17
|
|
TX / RX
|
17th
|
|
LED Display
|
Power ,UPLINK, Error, ACTIVE
|
|
Transfer Mode
|
Storage transmit
|
|
MAC Address
|
Auto Study,Auto Update
|
|
Package Filter Rate
|
10BASE-T:14880pps/port
100BASE-TX:148800pps/port
|
|
Package Transmit Rate
|
10BASE-T:14880pps/port
100BASE-TX:148800pps/port
|
|
Physical Environment
|
|
|
Input
|
AC Adapter(AC100-240V ~50-60HZ,DC48V/6A)
|
|
Power
|
No Load :10W(MAX)
Full Load:280W
|
|
Operating Temperature
|
-20~70°c
|
|
Storage Temperature
|
-40 ~ 70°c
|
|
Humidity
|
5%~95% unfrozen
|
|
Dimensions
|
1U
|
