Home > Electrical & Electronics > Switch > Flow Switch > 16 Port 100M 802.3af POE Midspan Poe Adapter

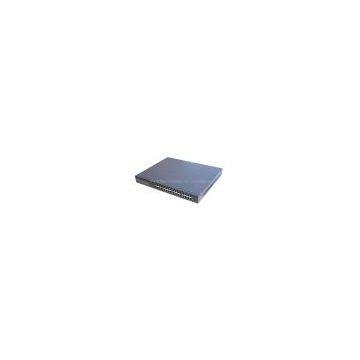

16 Port 100M 802.3af POE Midspan Poe Adapter
US$ 190 - 190
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
SinoV
Place of Origin:
China
Model Number:
sinov-midspan-16-M-AF
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
24 Port 100M 802.3af POE Midspan Poe AdapterUS$ 340 - 340MOQ: 5 Pieces -
4 Port 802.3af Standard Poe Switch With 1 Uplink PortUS$ 45 - 45MOQ: 5 Pieces
-
8 Port 802.3af Standard Poe Switch Poe AdapterUS$ 100 - 100MOQ: 5 Pieces
-
8 Port 802.3at Standard Gigabit Poe Switch Poe AdapterUS$ 140 - 140MOQ: 5 Pieces
-
16 Port 802.3af Standard Poe Switch Poe AdapterUS$ 200 - 200MOQ: 5 Pieces
Brand Name
SinoV
Place of Origin
China
Model Number
sinov-midspan-16-M-AF

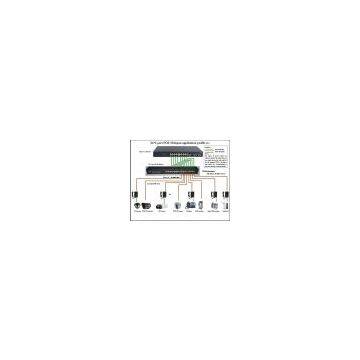

SINOV-MIDSPAN-16-M-AF is a 16-port network powered midspan. It has 32 RJ45-port. Its 16 ports in up line can be used as UPLINK to connect the upper switch or other equipments, its 16 ports in down line can be used as the data and power transmitting (POE port), ,each port matches IEEE802.3af standard, each port can offer the max power as 15.4W. The net cables between up line and down line are corresponding .All ports support Auto MDI/ MDIX function. SINOV-MIDSPAN-16-M-AF offers a simple, economical,high performance solution, compatible with 10/100M networks. It is very easy to install, and to operate and provides flexibility to improve workgroup performances. All the advantages show that this midspan is the best choice to improve the sever efficiency. The 16 ports simultaneously offer data transmit channels and supply power for routers, switches, wireless APs, IP phones, industrial network terminals, IP cameras and other equipments. It provides the power supply to these appliances without the necessity of separate power cables, improves the reliability and simplifies the installation of the Ethernet power system. NOTE: use TI TPS2384PAP chip inside. full support IEEE802.3af internation standard 1 Comply with IEEE802.3 10BASE-T for Ethernet and IEEE802.3u 100BASE-TX for fast Ethernet standards. 2 Compliance IEEE802.3af for POE 3 32 ports of half duplex /full duplex self -adapting RJ-45, with 100Mbps for each ports. 4 16 POE ports , which can automatically identify the power ( max power as 15.4W of each) 5 Each port supports MDI/MDIX, which can automatically adjust the buffer to balance the Ethernet loading and to avoid data package missing. 6 Each port has auto detecting and correcting polarity ability 7 Support MAC address auto-learning and auto-aging 8 Panel lamp monitors the working status and helps to resolve faults easily 9 Highly insure the data integrality and speed matching 10 Highest speed for data transmitting and data filtering 11 Strong compatibility in Ethernet application to keep user lowest cost General Standards IEEE802.3 10BASE-T for Ethernet IEEE802.3u 100BASE-TX for fast Ethernet IEEE802.3af POE Protocol CSMA/CD Ethernet Data Transmit Rate Ethernet:10Mbps(half-duplex)20Mbps(duplex) Fast Ethernet:100Mbps(half-duplex)200Mbps(duplex) Topology Structure Star topology Physical Medium 10BASE-T: CAT3,4,5 UTP(max. length 100m ) EIA/TIA-568 100ohm STP(max. length 100m) 100BASE-TX: CAT 5 or up UTP(max. length 100m) EIA/TIA-568 100ohm STP(max length 100m) The number of Port 32 ports (16 ports in up line are standard net ports,16 ports in down line are POE ports as data and power transfer) TX / RX Any of 32 ports LED Display Power ,UPLINK, Error, ACTIVE ,PSE power Transfer Mode Storage transmit MAC Address Auto Study,Auto Update Package Filter Rate 10BASE-T:14880pps/port; 100BASE-TX:148800pps/port Package Transmit Rate 10BASE-T:14880pps/port; 100BASE-TX:148800pps/port Physical Environment Input AC Adapter(AC100-240V ~50-60HZ,DC48V/6A) Power No Load :2.8W(MAX) Full Load:300W Operating Temperature -20~70°c Storage Temperature -40 ~ 70°c Humidity 5%~95% unfrozen Dimensions 1U Net Weight 5 kg
