Home > Products > POE > 8 Port 802.3at Standard Gigabit Poe Switch Poe Adapter

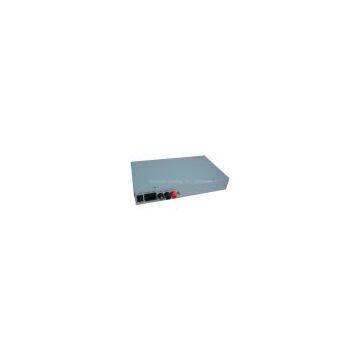

8 Port 802.3at Standard Gigabit Poe Switch Poe Adapter

Name: 8 Port 802.3at Standard Gigabit Poe Switch Poe Adapter
Brand: SinoV
Availability: InStock

FOB Price

US$ 140 - 140 / Piece

5 Pieces(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SinoV		Place of Origin	China
Model Number	sinov-switch-8-g-at

Product Description

SinoV-PSE-8-G-AT is a 8 gigabit port network powered 10/100/1000M self-adapting Ethernet switch. Any of 8 port can be use as UPLINK port to connect to the up level network device, such as common switch and router. It has 8 POE output ports which all match IEEE802.3at standard. Each POE port can offer 30 Watts (max can support 90 watts)power. All ports support Auto MDI/ MDIX function.

SinoV-switch-8-G-AT offers a simple, economical,high performance solution, compatible with gigabit networks. It is very easy to install, and to operate and provides flexibility to improve workgroup performances. All the advantages show that this switch is the best choice to improve the sever efficiency. The 8 PSE ports simultaneously offer data transmit channels and supply power for routers, switches, wireless APs, IP phones, industrial network terminals, IP cameras and other equipments. It provides the power supply to these appliances without the necessity of separate power cables, improves the reliability and simplifies the installation of the Ethernet power system.

1 Comply with IEEE802.3 100BASE-T for Ethernet and IEEE802.3u 1000BASE-TX for fast Ethernet standards.
2 Compliance IEEE802.3at for POE
3 it have 8 ports of half duplex /full duplex self-adapting RJ-45,with gigabit for each ports.8 POE ports,which can automatically identify the power ( 30 watts of each ports,max power as 90 watts of each)
4 Each port supports MDI/MDIX, which can automatically adjust the buffer to balance the Ethernet loading and to avoid data package missing.
5 Each port has auto detecting and correcting polarity ability
6 Support MAC address auto-learning and auto-aging
7 Panel lamp monitors the working status and helps to resolve faults easily
7 Highly insure the data integrality and speed matching
9 Highest speed for data transmitting and data filtering
10 Strong compatibility in Ethernet application to keep user lowest cost

NOTE: Use linear LTC4266 POE chip inside. Full support IEEE802.3 at standard. Support 30 watts /port . max support 90 watts/port.

General
Standards	IEEE802.3 100BASE-T for Ethernet IEEE802.3u 1000BASE-TX for fast Ethernet IEEE802.3at POE
Protocol	CSMA/CD Ethernet
Data Transmit Rate	Ethernet:100Mbps(half-duplex)200Mbps(duplex) Fast Ethernet:1000Mbps(half-duplex)2000Mbps(duplex)
Topology Structure	Star topology
Physical Medium	10BASE-T: CAT3,4,5 UTP(max. length 100m ) EIA/TIA-568 100ohm STP(max. length 100m) 100BASE-TX: CAT 5 or up UTP(max. length 100m) EIA/TIA-568 100ohm STP(max length 100m)
The number of Port	8
TX / RX	8 th
LED Display	Power ,UPLINK, Error, ACTIVE
Transfer Mode	Storage transmit
MAC Address	Auto Study,Auto Update
Package Filter Rate	gigabit
Package Transmit Rate	gigabit
Physical Environment
Input	AC Adapter(AC100-240V ~50-60HZ,DC48V/6A)
Power	No Load :10W(MAX) Full Load:300W
Operating Temperature	-20~70°c
Storage Temperature	-40 ~ 70°c
Humidity	5%~95% unfrozen
Dimensions	28017044.5mm
