| Material: | Stainless Steel | Grade: | 304 |
|---|---|---|---|
| Slot Size: | 0.5mm | Length: | 1219 Mm |
| Width: | 486 | ||
| High Light: | wedge wire sheets, wedge wire panels | ||
Wedge Wire Screen Plate & V Wire Wrapped Sieve Bend – High-Efficiency Filtration Solutions

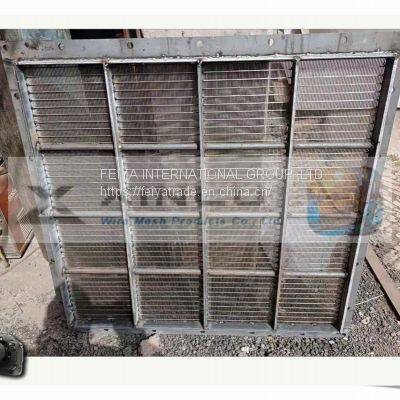

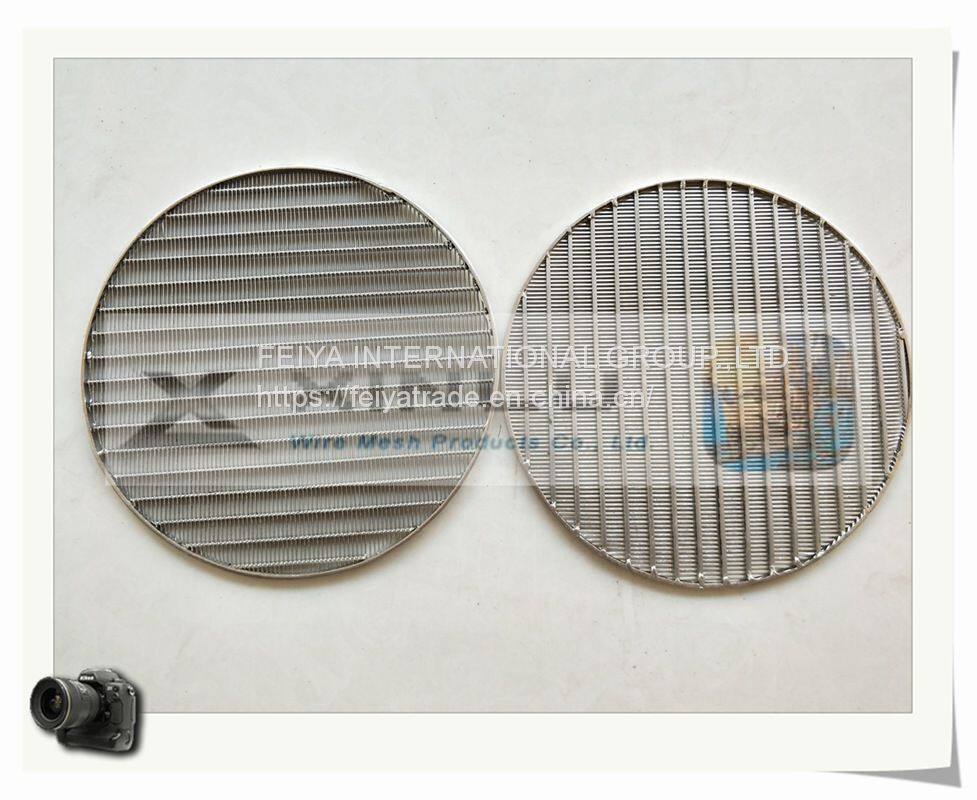

Stainless Steel 304 316 Wedge Wire Screen V Shape Slot Screen Panels
Product Description:

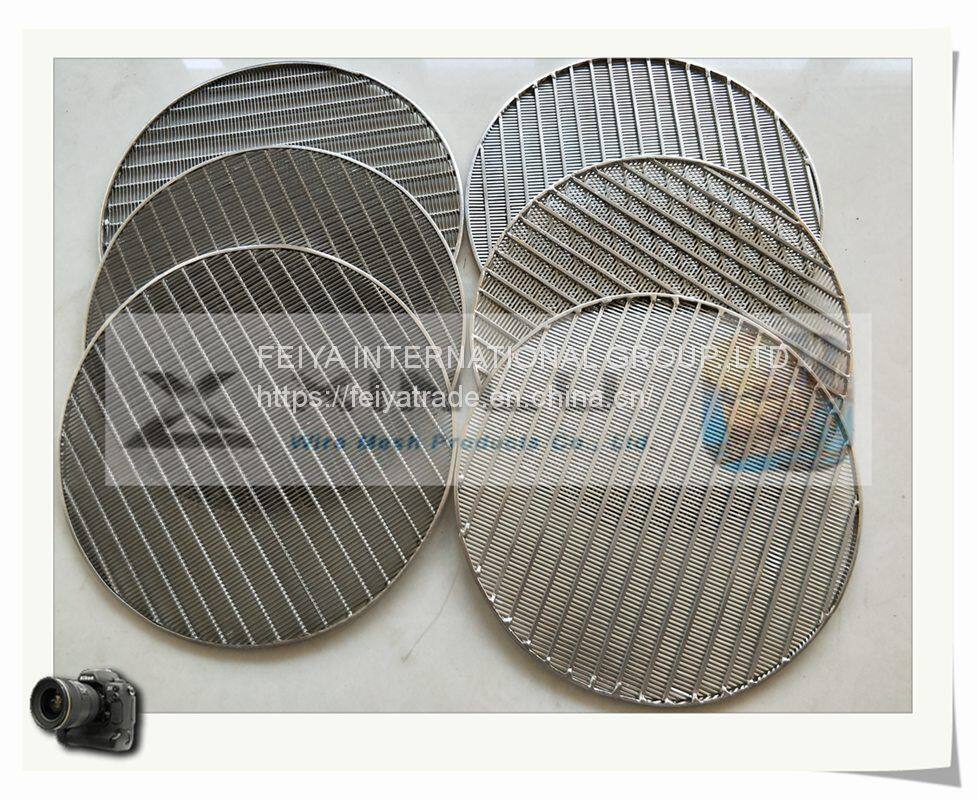

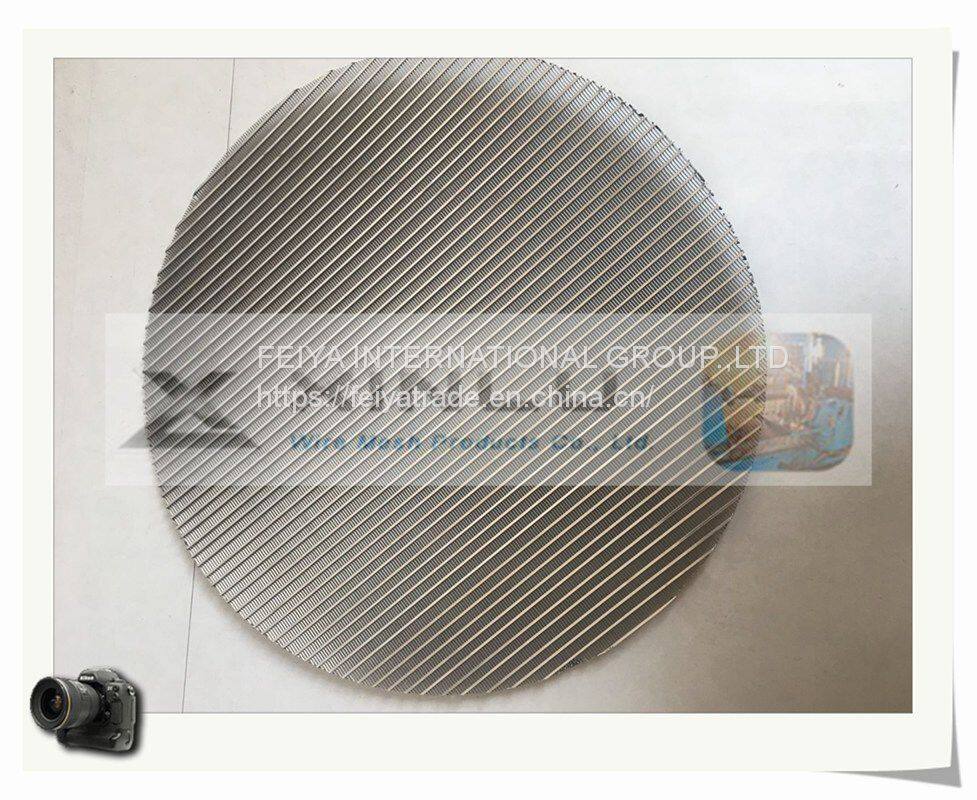

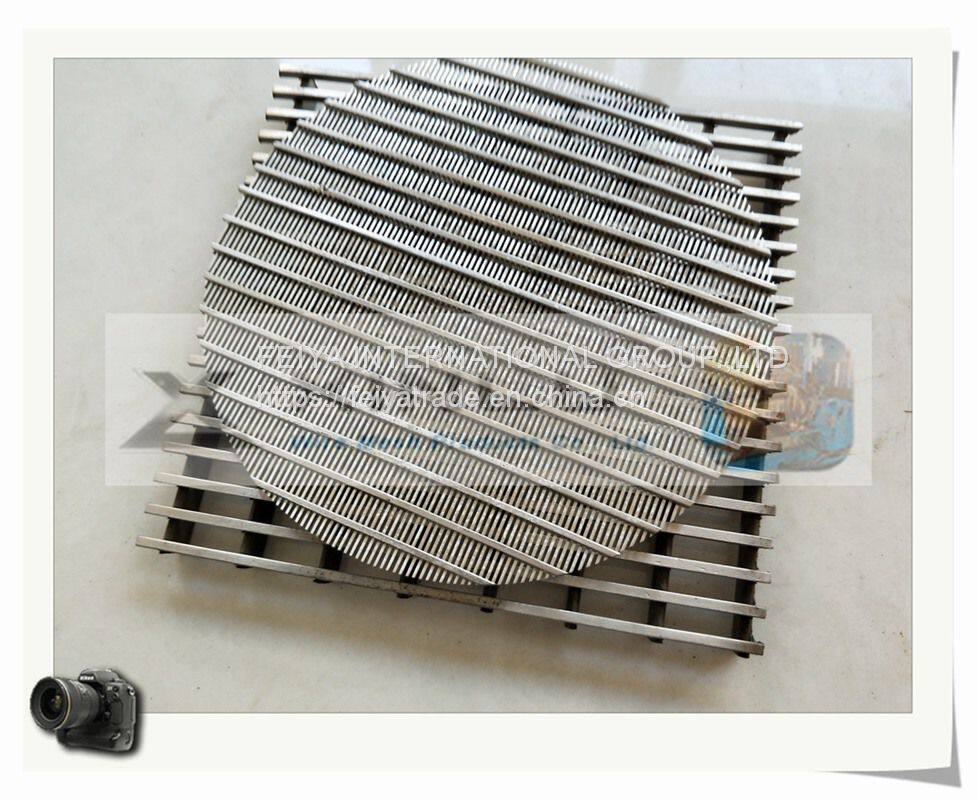

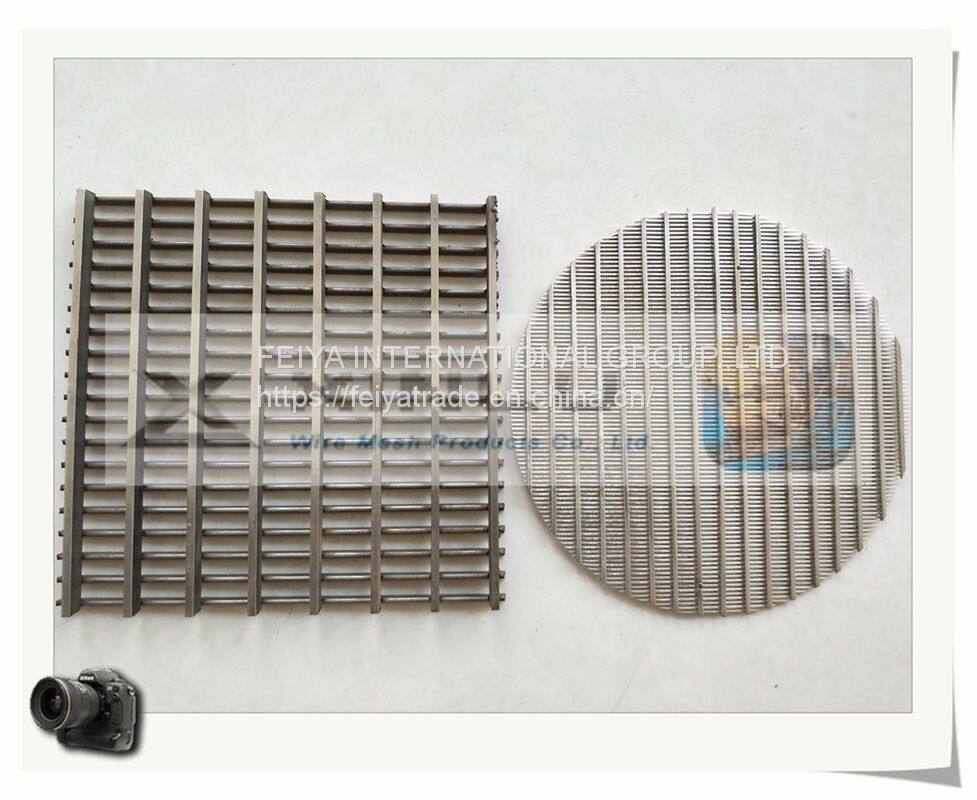

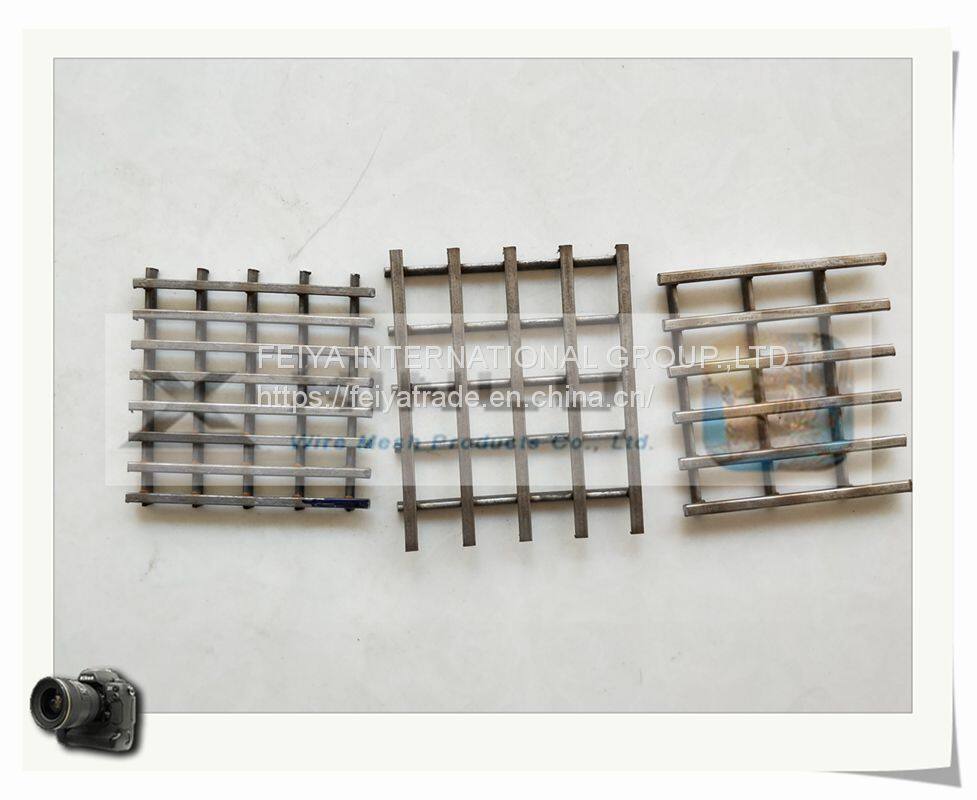

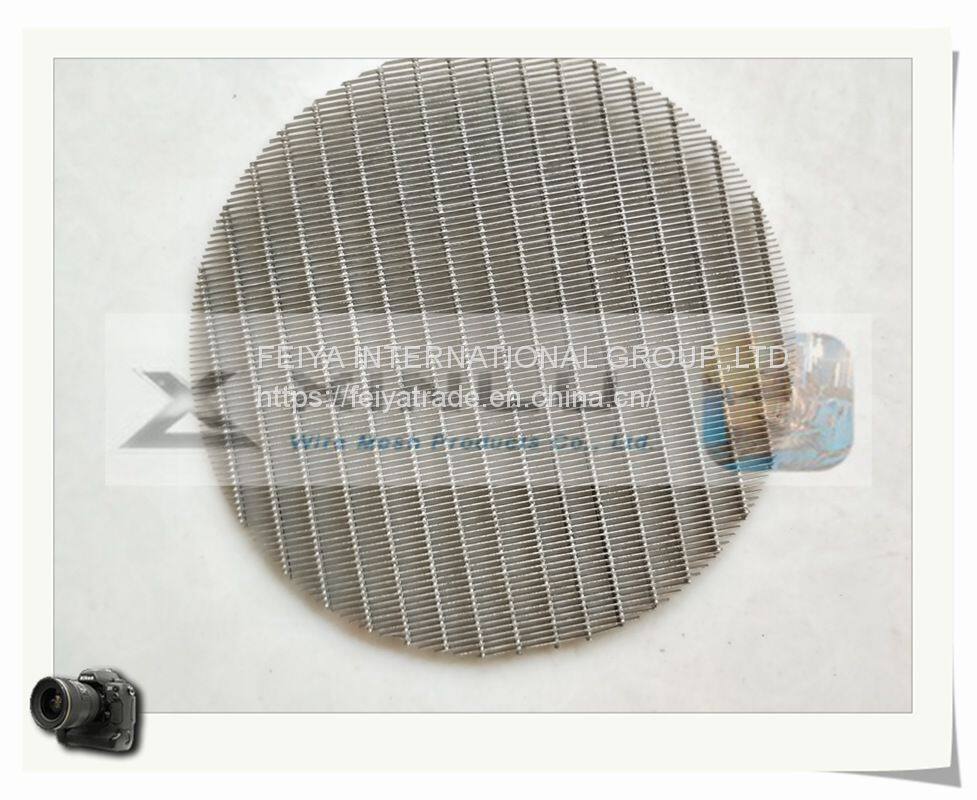

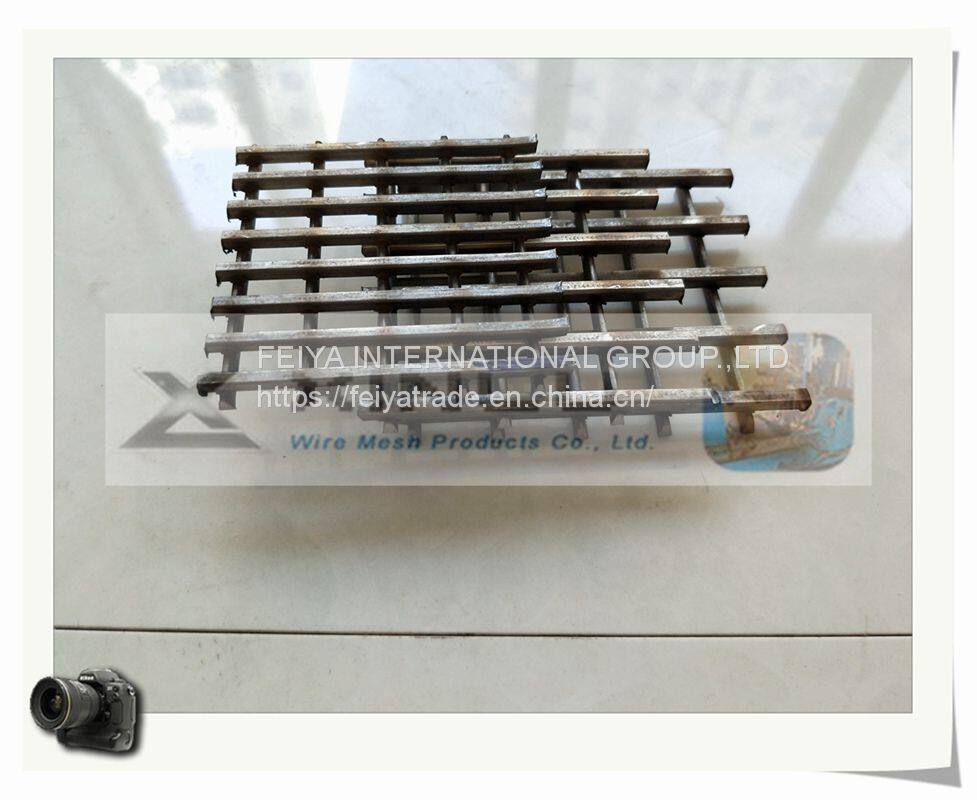

Stainless Steel 304 316 Wedge Wire Screen V Shape Slot Screen Panels is a screen formed by welding a wire and a support rod, and the shape of the wire is a V-shaped wire, and the shape of the support rod may be V Wire or square wire or round wire. There is a certain gap between the screen line and the screen line. The value of the gap is provided by the customer or the manufacturer can recommend it based on the size and viscosity of the particular filter object. The gap of the screen is V-shaped, the welding point is firm, it is not easy to block, the flowability is good, the permeability is good, and it is widely used in the fields of coal washing, screening, filtration and the like.
Specification:
| Material | Stainless steel |
| Grade | 205 304 316 |
| Dimension | 800*800mm, request |
| Slot Size | 0.5 mm, 0.1-50mm,request |
| Width | 800mm, up to 3000mm |
| Length | 800mm, up to 4430mm |
| Type | screen plate |
| Wire size | 2.2*3.5 mm |
| Support rod | 1.8*25 mm |
| Wire shape | V shape |
Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
Slot: 0.1mm - 50mm
Discrepancy: + / - 0.05mm
Dimension: width up to 3000 mm
Length up to 4430mm
| SIZES OF THE WIRE AND ROD | ||||||
| WIRE SHAPE | V | V | V | V | V | V |
| Width(mm) | 1.0 | 1.2 | 1.5 | 2.0 | 2.2 | 3.0 |
| Height(mm) | 2.0 | 2.0 | 2.0 | 3.5 | 4.5 | 4.6 |
| ROD SHAPE | V | V | V | V | V | O |
| Width(mm) | 2.0 | 2.2 | 3.0 | 3.0 | 3.2 | Diameter |
| Height(mm) | 3.0 | 4.5 | 4.6 | 5.0 | 6.0 | 3.0~3.8 |
Industry:
mining machinery: used for desilting and dewatering of coal preparation plants, coal whasher.
wheat tooth machine: it is suitable for use in wheat tooth mill, floater and drying stove.
beer machine: it is suitable for use in the brewery filter tank, with the advantages of high opening rate and long service life.
food industry: the filtration process can be used for food and beverage.
aquaculture: used for farming, cleaning up waste residues from animals
