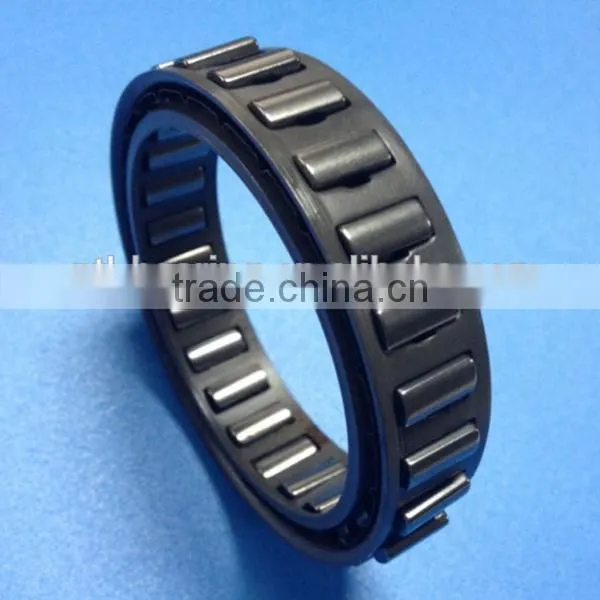

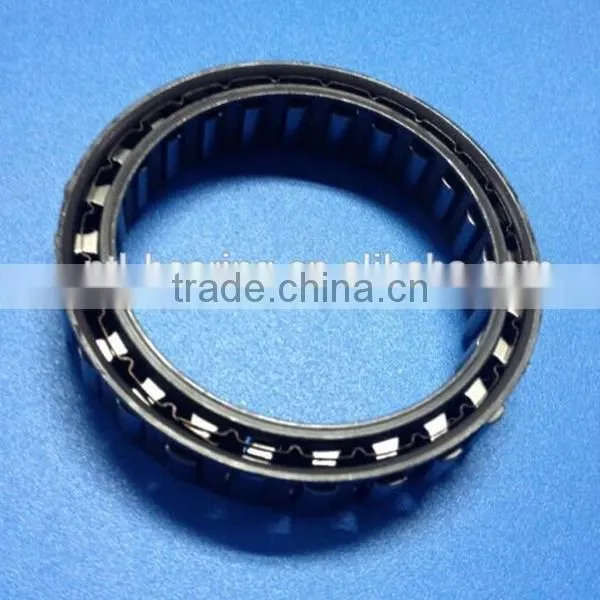

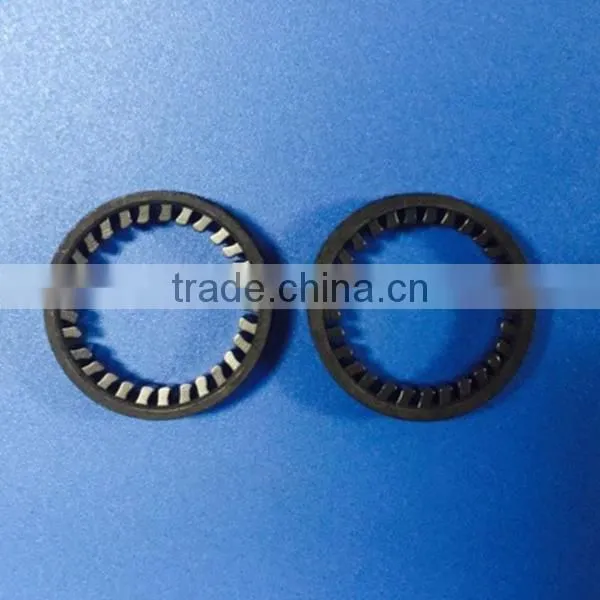

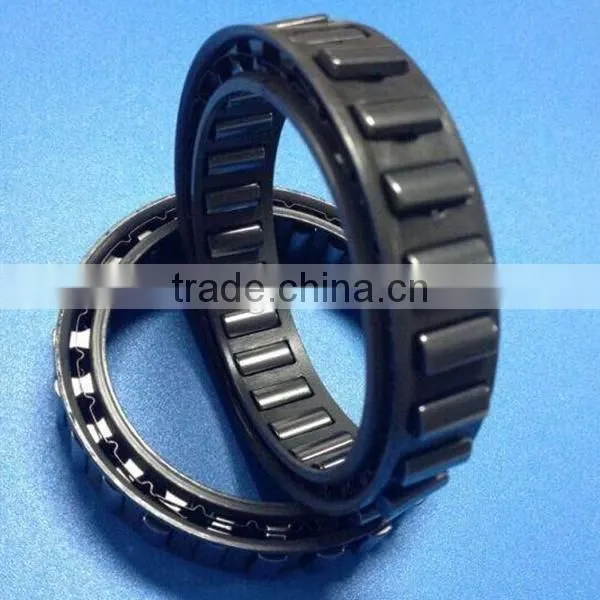

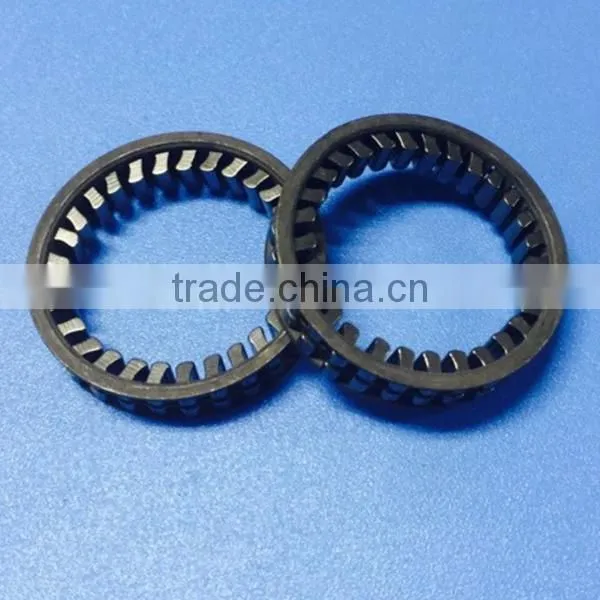

DC5776A One way clutch bearing/ sprag clutch bearing
1.Type DC is a sprag type freewheel cage without inner or outer races.
2.It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. The DC type version -N accepts all types of lubricants currently used in power transmissions including gear oils with EP additives.

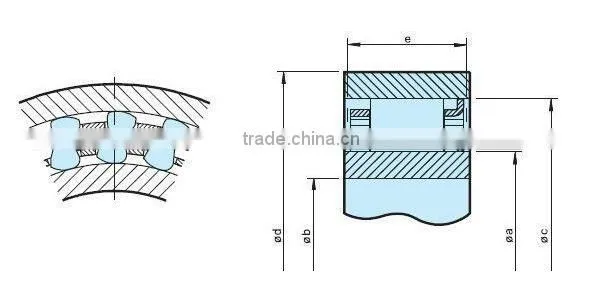

3.The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly as shown on following pages
Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below.
4.Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0,6 mm minimum.
Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between races : 0,007 mm for 25 mm width.
Feature:
1 friction resistance is small, power consumption is small, high mechanical efficiency, easy to start.
2, size standardization, with interchangeability, easy to install disassembly, easy maintenance.
3, compact structure, light weight, axial size is more narrow.
4, high precision, high speed, wear small, long service life.
5, can bear both radial and thrust combined load;
6, in a large load - speed range, the unique design can get excellent performance;
7, bearing performance on the load, speed and speed fluctuations are relatively insensitive.
Application:
The one-way clutch is mainly used for general machinery, packaging machinery, printing machinery, textile machinery, transmission machinery, food machinery, plastic machinery, petrochemical machinery, lifting transport machinery, high pressure switch, fan, reducer
