8.33X57.760X74.420mm one way clutch bearing DC5776A
- 10000000 Piece / Pieces per Month
- Shnghai
- Credit Card
You May Like
-
MZ60-55 One way clutchbearing/ sprag clutch bearing for conveying machinery
-
high quality one way clutch bearing/overrunning clutch CSK30-M-C5
-
FWD series FWD332211CRB FWD332211CRS One way sprag clutch bearing
-
DC series DC12388C(11C) one way overrunning clutch bearing
-
ASNU20 one way clutch bearing
-
high quality one way bearing OW6006 2RS for washing machine
Product Details
| Brand Name | NTL | Bore Size | 57.76, | |
| Outside Diameter | 74.42, | Model Number | DC5776A | |
| Precision Rating | P0 P6 P5 P4 P2 | Seals Type | Open | |
| Number of Row | Single Row | Place of Origin | Jiangsu, China |
Product Description

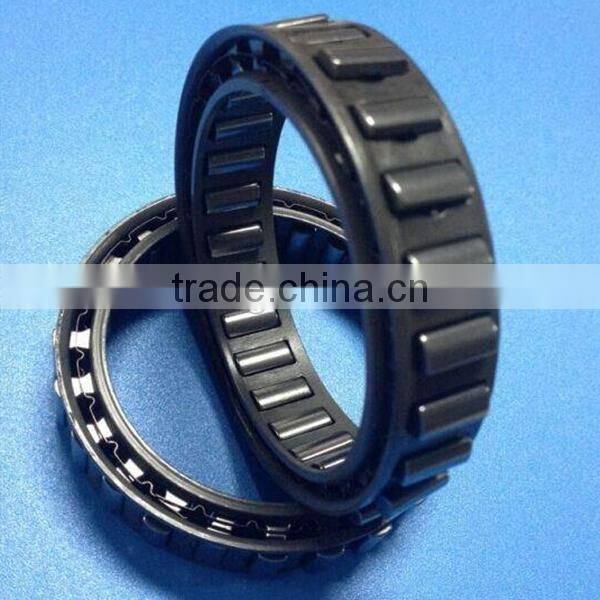

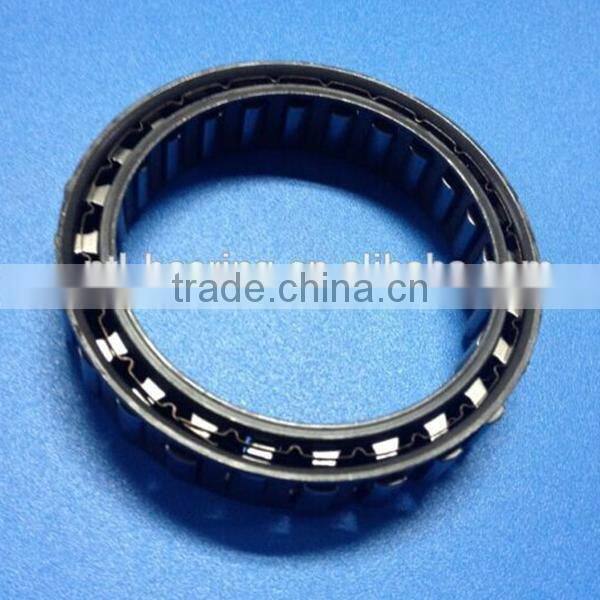

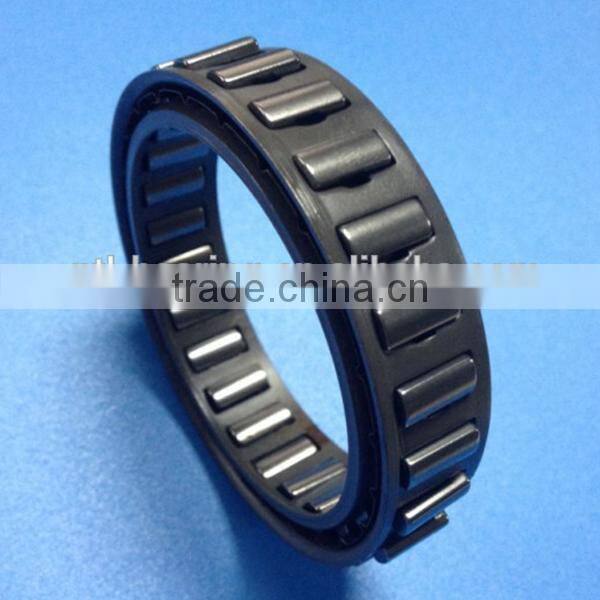

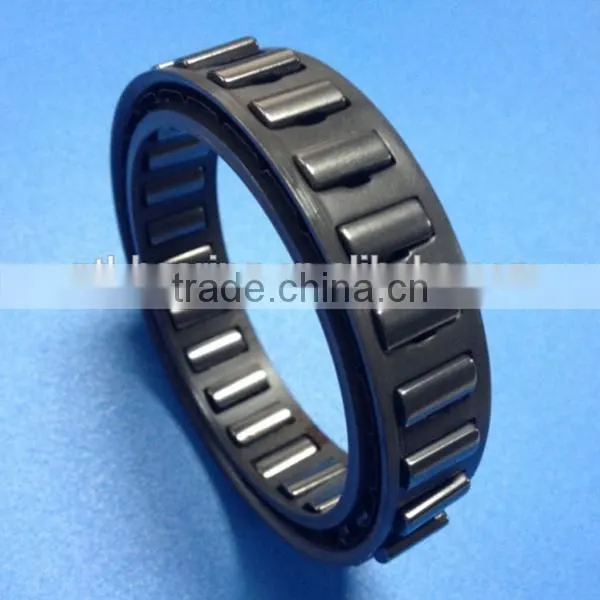

483X57.760X74.420mm one way clutch bearing DC5776A
1.Type DC is a sprag type freewheel cage without inner or outer races.
2.It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. The DC type version -N accepts all types of lubricants currently used in power transmissions including gear oils with EP additives.

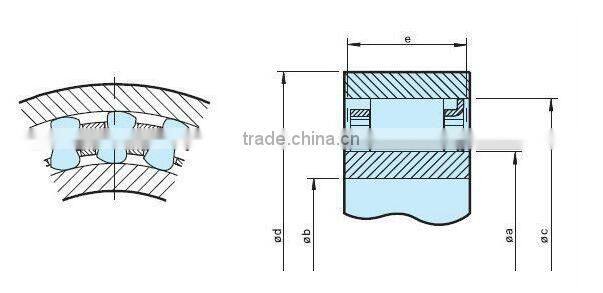

3.The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly as shown on following pages
Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below.
4.Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0,6 mm minimum.
Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between races : 0,007 mm for 25 mm width.
if you are interested in this product, please contact me freely.
Attn:connie
email:connie at
whatsapp:+8615073676619
wechat:empty919
