DC Series DC12388C(11C) One Way Overrunning Clutch Bearing

DC Series DC12388C(11C) One Way Overrunning Clutch Bearing thumbnail-1
DC Series DC12388C(11C) One Way Overrunning Clutch Bearing thumbnail-2
DC Series DC12388C(11C) One Way Overrunning Clutch Bearing thumbnail-3

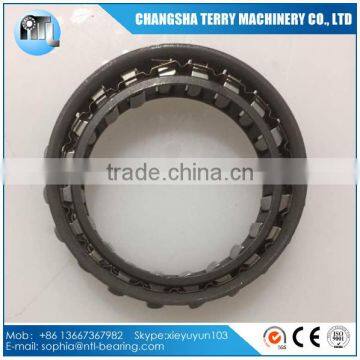

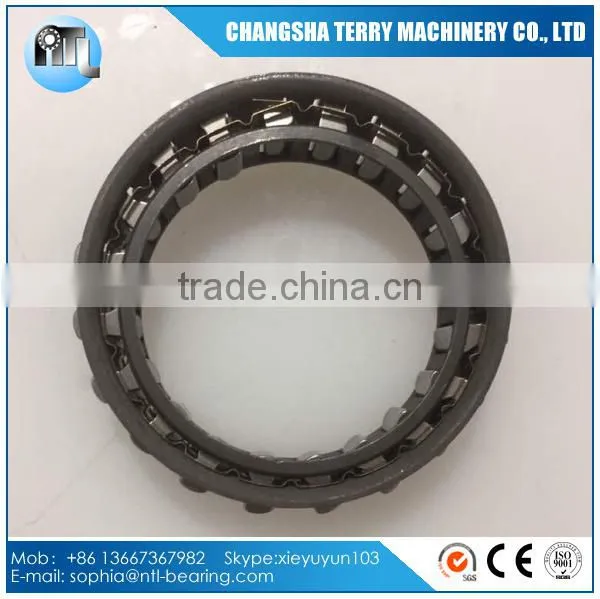

DC Series DC12388C(11C) One Way Overrunning Clutch Bearing photo-1

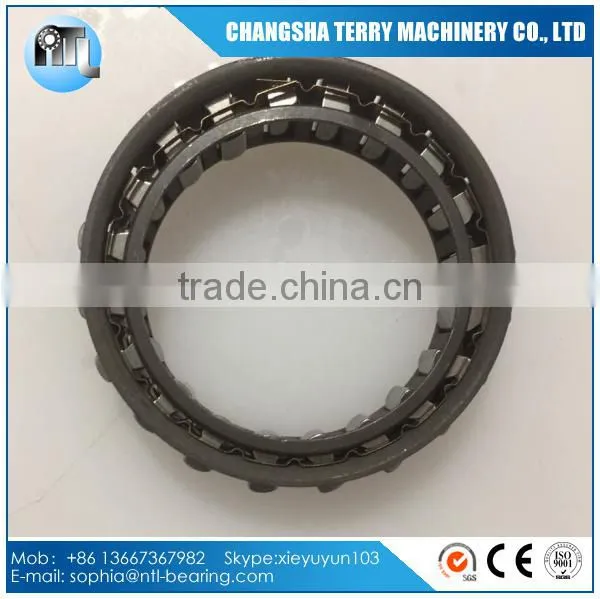

DC Series DC12388C(11C) One Way Overrunning Clutch Bearing photo-2

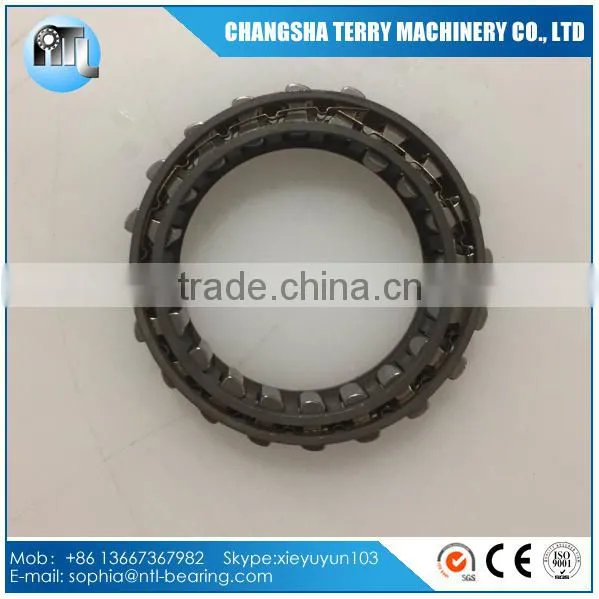

DC Series DC12388C(11C) One Way Overrunning Clutch Bearing photo-3
US$ 15 - 15 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
NTL
Bore Size:
123.881,
Outside Diameter:
142.88,
Contact Supplier Request Quote Chat Now
Changsha Terry Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NTL
Bore Size 123.881,
Outside Diameter 142.88,
Model Number DC12388C(11C)
Precision Rating P0
Seals Type Open
Number of Row Single Row
Place of Origin Jiangsu, China

DC series DC12388C(11C) one way overrunning clutch bearing





1.Type DC is a sprag type freewheel cage without inner or outer races.



2.It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. The DC type version -N accepts all types of lubricants currently used in power transmissions including gear oils with EP additives.



3.The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly as shown on following pages

Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below.



4.Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0,6 mm minimum.

Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between races : 0,007 mm for 25 mm width.





Modle No

TKN1   Φc+0.003mm mm emin Φdmin Φdmax
Nm mm mm mm
DC2222G 50 22.225 38.885 8.33±0.075 10 50 17
DC2776 95 27.762 44.422 8.33±0.075 13.5 58 21
DC3034 99 30.34 47 8.33±0.075 13.5 62 23
DC3175(3G) 127 31.75 48.41 8.33±0.075 13.5 63 24
DC3809A 220 38.092 54.752 8.33±0.075 16 71 29
DC4127(3G) 179 41.275 57.935 8.33±0.075 13.5 75 32
DC4445A 290 44.45 61.11 8.33±0.075 16 79 34
DC4912(4C) 245 49.721 66.381 8.33±0.075 13.5 86 38
DC5476A 420 54.766 71.425 8.33±0.075 16 92 42
DC5476A(4G) 420 54.765 71.425 8.33±0.075 16 92 42
DC5476B(4G) 615 54.765 71.425 8.33±0.075 21 92 42
DC5476C(4G) 792 54.765 71.425 8.33±0.075 25.4 92 42
DC5776A 483 57.76 74.42 8.33±0.075 16 98 44
DC63348 645 63.34 80 8.33±0.075 21 104 50
DC7221(5G) 540 72.217 88.877 8.33±0.075 13.5 115 56
DC7221B 1023 72.217 88.877 8.33±0.075 21 115 56
DC7221B(5G) 1023 72.217 88.877 8.33±0.075 21 115 56
DC7969C(5C) 1630 79.698 96.358 8.33±0.075 25.4 124 61
DC8334C 1645 83.34 100 8.33±0.075 25.4 132 65
DC8729A 1000 87.29 103.96 8.33±0.075 16 134 67
DC10323A(3C)* 1290 103.231** 119.891 8.33±0.075 16 155 80
DC12334C* 3840 123.340** 140 8.33±0.075 25.4 184 96
DC12388C(11C) 3900 123.881 142.88 9.50±0.10 25.4 186 96



 DC series DC12388C(11C) one way overrunning clutch bearing



DC series DC12388C(11C) one way overrunning clutch bearing



DC series DC12388C(11C) one way overrunning clutch bearingDC series DC12388C(11C) one way overrunning clutch bearing

















DC series DC12388C(11C) one way overrunning clutch bearing

If you need,just feel free to contact with us.
