Product Introduction:
JF800 Bimetallic Bearing, Bimetallic Rolled Bushing, Bimetallic Sintered Sliding Bearing, and Bimetallic Seamless Bearing are rolled sliding bearings made by sintering copper-tin alloy on the surface of a steel back as the base and then calendering. The standard alloy materials include: CuPb10Sn10, CuSn6Zn6Pb3, CuPb24Sn4, CuPn30, AISn20Cu, etc. Since the substrate is made of low-carbon steel, the machining accuracy of the outer diameter of the bushing is guaranteed. Moreover, after the product is installed in the seat hole, it does not need to be fixed with screws. The interference fit can prevent the phenomenon of outer circle movement. The change of the chemical composition of the inner surface alloy can meet the requirements of different bearing pressures, different operating temperatures, and different sliding speeds. Oil grooves and oil holes with different structures are designed on the friction surface during production to meet the requirements of different oiling methods and prevent shaft seizure.

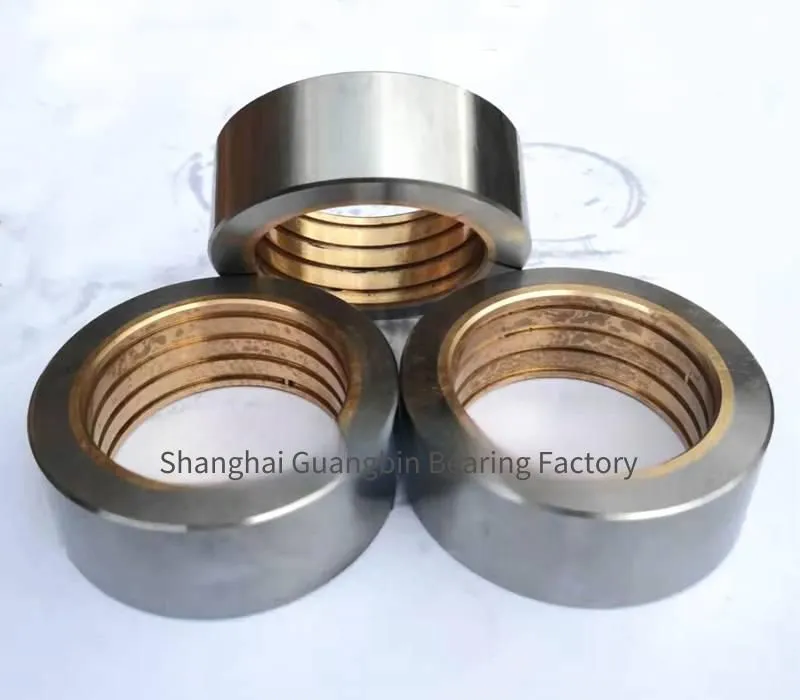

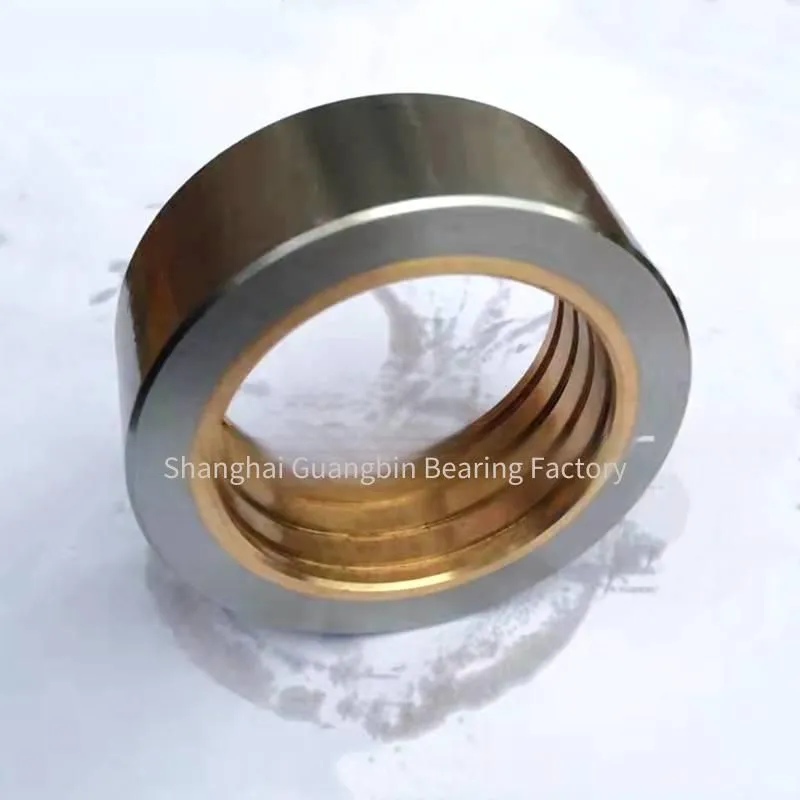

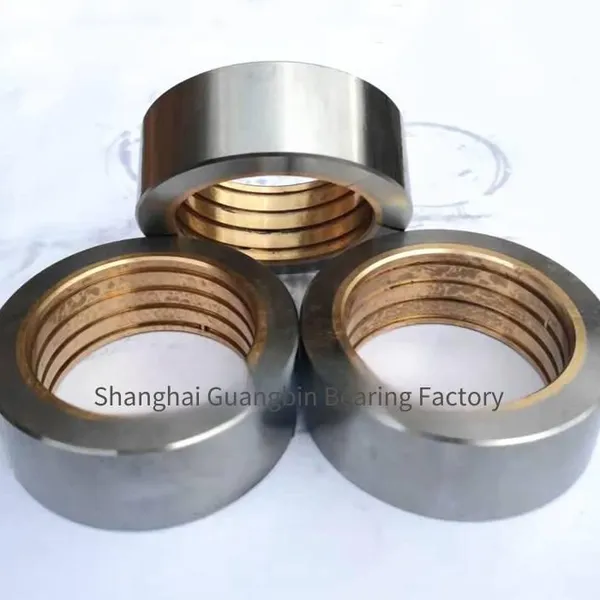

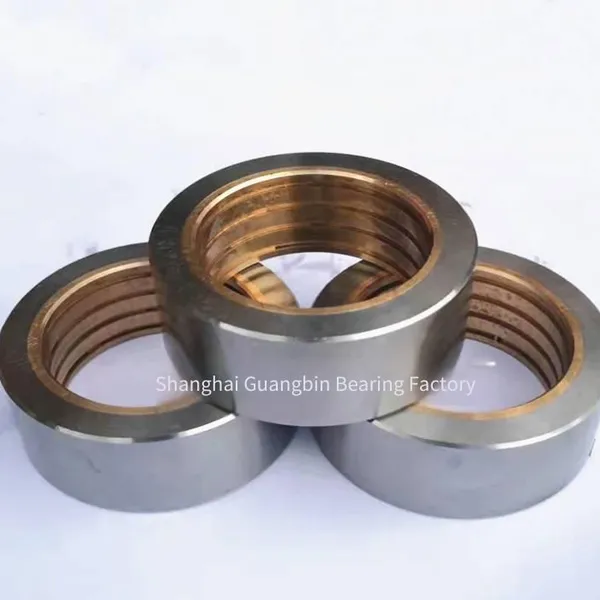

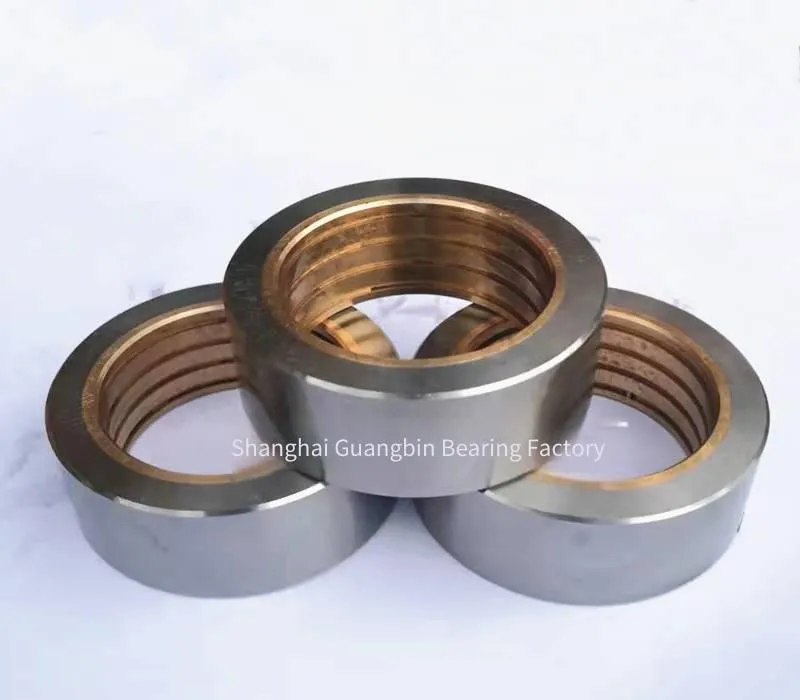

Product Pictures:
Product Advantages:
1. Oil-free or low-oil lubrication, suitable for places where it is impossible or difficult to refuel. It can be used with little or no maintenance.
2. Good wear resistance, low friction coefficient, and long service life.
3. It has appropriate elasticity and plasticity, which can distribute stress on a wider contact surface and improve the bearing capacity of the bimetallic bearing.
4. The static and dynamic friction coefficients are similar, which can eliminate crawling at low speeds and thus ensure the working accuracy of the machine.
5. The bimetallic bearing can reduce vibration, lower noise, prevent pollution, and improve the working conditions of the machine during operation.
6. It can form a transfer oil film during operation, which plays a role in protecting the mechanical spindle and prevents shaft seizure.
7. It has low requirements for the hardness of the spindle, and shafts without quenching and tempering treatment can be used, which reduces the machining difficulty of related parts.
8. Thin-walled structure, light weight, which can reduce the volume of the machine.
9. The steel back can be electroplated with various metals, such as copper, tin, zinc, etc., and can be used in corrosive media. Currently, it has been widely used in various parts of machinery.
Product Application:
JF800 Bimetallic Bearings, Bimetallic Rolled Bearing Bushings, and JF800 Bimetallic Bushings are widely used and suitable for the moving parts of rotating and swinging components under high load and low speed. They are also applied to automotive balance axles, spring steel plate seat holes, brake shoes, steering knuckles, motion connecting rods, punching machine sliding parts, bulldozer supports, heavy-duty wheels, gear boxes, oil pumps, oil cylinders, engines, clutches, etc. They are also widely used in mining machinery, steam turbines, construction machinery, agricultural machinery, steel rolling machinery, etc.
