SK series Linear shaft support bearing SK16
Advantage:
1)Linear bearings is a low-cost production linear motion system for endless stroke used together with linear shaft.
2)The load is small.
3)High friction resistance can get high precision rotating in the smooth movement.
Application:
Linear bearing widely used in electronic equipment, tension tester and digital 3d coordinate measurement equipment and other precision equipment, and multi-axis machine, punch, tool grinding machine, automatic cutting machine, printer, card sorting machine, ShiPinBao installed the sliding parts such as industrial machinery.

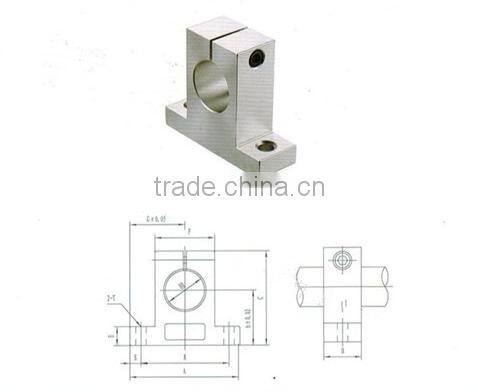

Drawing:

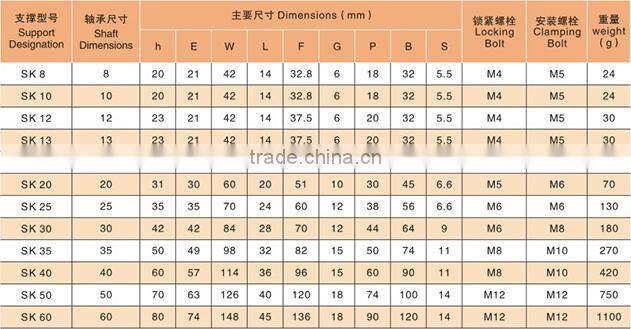

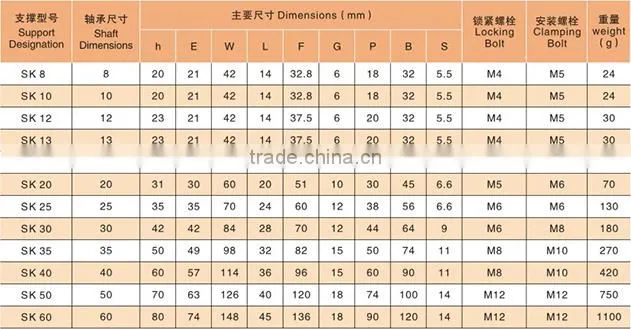

Parameter:
if you are interested in our products, just contact me freely:)
email:connie at
whatsapp:+8615073676619
wechat:empty919
