Linear Motion Ball Bearing Linear Bearing ST35B
Linear bearing is composed of shell, steel ball, retainer and snap ring or seal on both ends.Retainer device within a shell, the snap ring or seal ring fixed on both ends, the steel ball in the retainer in the orbital plane movement repeat cycle.Through full and shell quenching heat treatment in order to achieve considerable hardness, to ensure the precision and stability of the motion and the service life.
Feature:
Linear bearing is used with quenching line shaft.For infinite linear motion system.Load ball and quenching shaft because it is a point contact, the allowable load is small, but the linear motion, the minimum friction resistance, high precision, quick movement.
Classify:
(1) standard, gather linear bearing clearance, open rack linear bearings, linear bearings, linear bearing commonality lengthened
(2) the flange linear bearing can be divided into: round flange type, method type, elliptical flange type, guided round flange, guiding method, guide the elliptical flange type, extended round flange type.

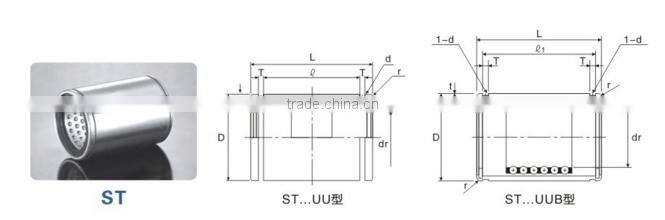

| esignation | Major dimensions mm | Basic loading arting | Weight (g) | |||
| d | D | L | Dynamic Cr/ N | Static Co /N | ||
| ST6 | 6 | 12 | 20 | 216 | 147 | 8.9 |
| ST8 | 8 | 15 | 24 | 343 | 245 | 15.6 |
| ST10 | 10 | 19 | 30 | 637 | 461 | 28.8 |
| ST12 | 12 | 23 | 32 | 1070 | 913 | 42 |
| ST16 | 16 | 28 | 37 | 1180 | 990 | 71 |
| ST20 | 20 | 32 | 45 | 1260 | 1170 | 99 |
| ST25 | 25 | 37 | 45 | 1330 | 1330 | 117 |
| ST30 | 30 | 45 | 65 | 2990 | 3140 | 205 |
| ST35 | 35 | 52 | 70 | 3140 | 3530 | 329 |
| ST40 | 40 | 60 | 80 | 4120 | 4800 | 516 |
| ST50 | 50 | 72 | 100 | 5540 | 6910 | 827 |
| ST60 | 60 | 85 | 100 | 5980 | 8230 | 1240 |
| ST80 | 80 | 110 | 100 | 7840 | 12200 | 2050 |
| ST100 | 100 | 130 | 100 | 8430 | 14700 | 2440 |
