SBR30 30 MM FULLY SUPPORTED LINEAR RAIL SHAFT ROD

SBR30 30 MM FULLY SUPPORTED LINEAR RAIL SHAFT ROD thumbnail-1
SBR30 30 MM FULLY SUPPORTED LINEAR RAIL SHAFT ROD photo-1
US$ 7 - 10 MOQ: 1 Meter
Key Specifications
Get Latest Price
Guide Width or Diameter:
20mm
Guide Length:
1000mm
Model Number:
SBR20
Contact Supplier Request Quote Chat Now
Changsha Terry Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Guide Width or Diameter 20mm
Guide Length 1000mm
Model Number SBR20
Brand Name ntl

 SBR30 30 MM FULLY SUPPORTED LINEAR RAIL SHAFT ROD





We NTL offer full range of SBR series linear guide and linear blocks: SBR10UU, SBR13UU, SBR16UU, SBR20UU, SBR25UU, SBR30UU, SBR35UU, SBR40UU, SBR50UU.



Introduction



1. SBR/TBR Cylindrical linear guide rail is composed of the aluminium case, a rail support, a shaft (rail), and number of blocks.



2. They are provided as a unit or as respective components as well.



3. All components are standardized to be fully interchangable.



4. This is the complete sliding unit systems and can be clamped simply tightening by bolt with high accuracy.



5. Support Rail Unit provides maximum rigidity and stiffness to the shaft throughout the whole stroke, and ensure the performance of the unit.



Application



Linear Guide rail TBR/SBR Series with smooth serface, little friction,low noise,they are widely used in linear motion system.For example, punch, tool grinding machine, automatic cutting machine, printer, card sorting machine, Food Packing Machine, other sliding parts on industrial machinery.

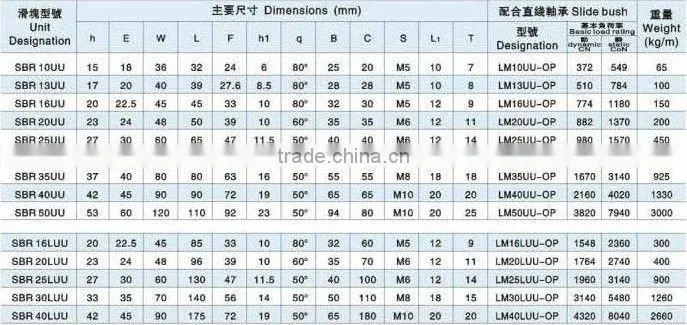

Datasheet



MODEL NO. SHAFT DIAMETER MAIN DIMENSIONS MOUNTING DIMENSION WEIGHT(kg)
H E W L F T K J h1 θ B N M × P S1 S2
SBR10-200 10 18 16 32 200 13.5 4 8.9 12.4 4.7 80° 22 50 1×100 4.5 M4 0.110
SBR10-300 300 50 2×100 0.160
SBR10-400 400 50 3×100 0.220
SBR10-500 500 50 4×100 0.270
SBR10-600 600 50 5×100 0.330
SBR12-200 12 20.46 17 34 200 15 4.5 9.8 15 6 80° 25 50 1×100 4.5 M4 0.140
SBR12-300 300 50 2×100 0.210
SBR12-400 400 50 3×100 0.280
SBR12-500 500 50 4×100 0.350
SBR12-600 600 50 5×100 0.420
SBR13-200 13 21 17 34 200 15 4.5 9.8 15 6 80° 25 50 1×100 4.5 M4 0.140
SBR13-300 300 50 2×100 0.210
SBR13-400 400 50 3×100 0.280
SBR13-500 500 50 4×100 0.350
SBR13-600 600 50 5×100 0.420
SBR16-200 16 25 20 40 200 17.8 5 11.7 18.5 8 80° 30 25 1×100 5.5 M5 0.200
SBR16-300 300 75 1×100 0.300
SBR16-400 400 50 2×100 0.400
SBR16-500 500 25 3×100 0.500
SBR16-600 600 75 3×100 0.600
