Home > Products > Linear bearing and guideway > LMF50UU flange linear motion ball type bearing
LMF50UU flange linear motion ball type bearing
- 500000 Piece / Pieces per Month
- ShangHai
- T/T D/P D/A Credit Card
Product Details
Brand Name: | NTL | Precision Rating: | High precision | Model Number: | LM50UU |
Place of Origin: | Zhejiang, China |
Product Description

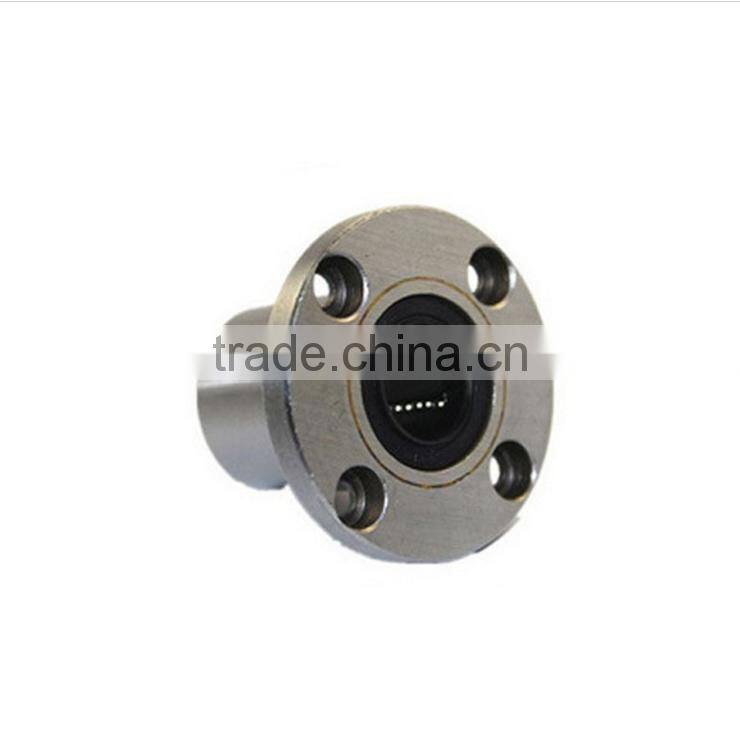

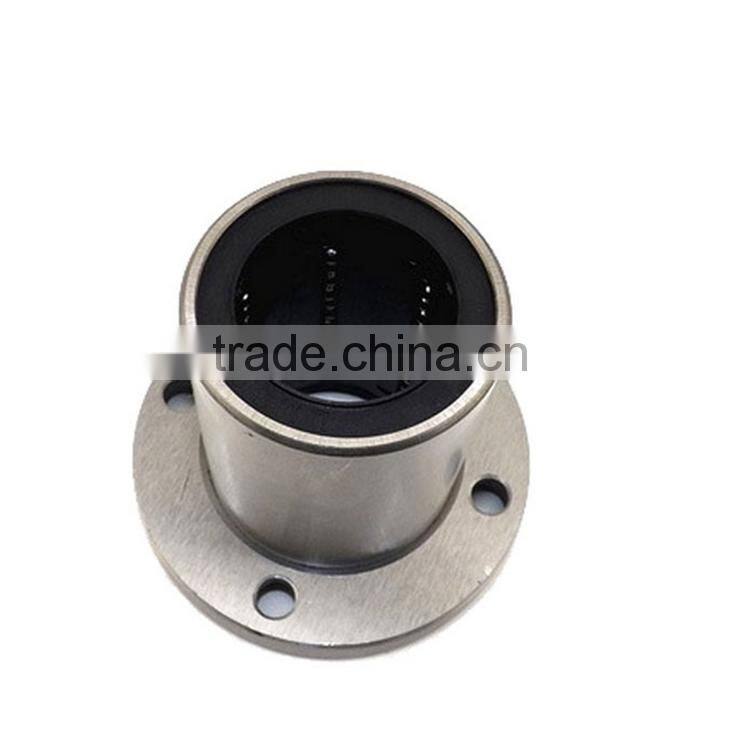

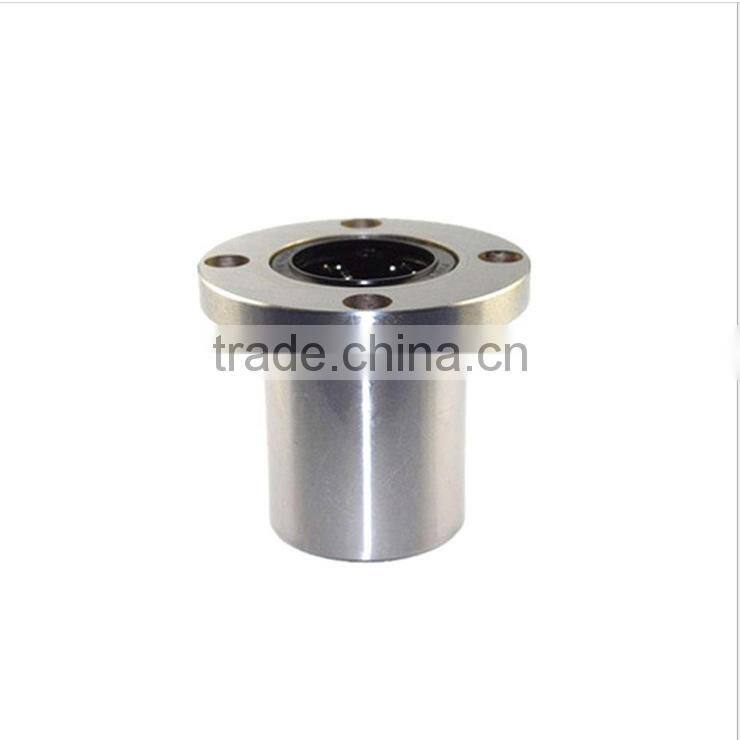

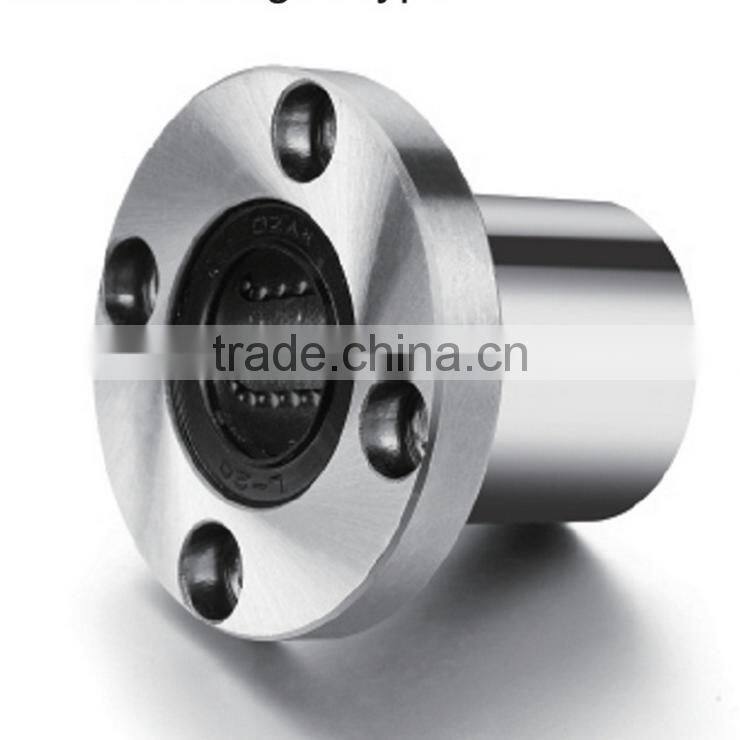

LMF50UU flange linear motion ball type bearing
Flange linear bearing can be divided into: round flange type, method, elliptical flange, round flange type, guidance method orchid type, orientation ellipse flange type, extended type circular flange .
Types
* LMF...UU flanged type linear bearing is with metric dimension, widely used in Asia and other countries.
* LMEF...UU flanged type linear bearing is with metric dimension, generally used in European countries.
* LMBF...UU flanged type linear bearing is with metric dimension, mainly used in American countries.
Application
They are widely used in electronic aid, tension tester, digitized three dimensional coordinate measurement system, and slide unit of multispindle, machine punch, grinders, automatic gas cutting machine, printer, card cull eliminator, food packaging machinery etc.
Datasheet
TYPE | NUMBER OF COLUMNS | MAIN DIMENSIONS | PERPENDICULARITY | CICULAR RUNOUT | LOAD RATING | |||||||||||||
INNER DIAMETER | EXTER DIAMETER | LENGTH | FLANGE | COHERENCE | c | Co | ||||||||||||
dr | tolerance | D | tolerance | L | tolerance | D1 | K | H | Φ | d1 | d2 | h | (kgf) | (kgf) | ||||
LMF6UU | 4 | 6 | 0 | 12 | 0 | 19 | 0 | 28 | 22 | 5 | 20 | 3.5 | 6 | 3.1 | 0.012 | 0.012 | 21 | 27 |
LMF8SUU | 4 | 8 | 15 | 17 | 32 | 25 | 5 | 24 | 3.5 | 6 | 3.1 | 18 | 22 | |||||
LMF8UU | 4 | 8 | -0.009 | 15 | -0.011 | 24 | -0.2 | 32 | 25 | 5 | 24 | 3.5 | 6 | 3.1 | 28 | 40 | ||
LMF10UU | 4 | 10 | 19 | 0 | 29 | 40 | 30 | 6 | 29 | 4.5 | 7.5 | 4.1 | 38 | 56 | ||||
LMF12UU | 4 | 12 | 21 | 30 | 42 | 32 | 6 | 32 | 4.5 | 7.5 | 4.1 | 52 | 80 | |||||
LMF13UU | 4 | 13 | 23 | -0.013 | 32 | 43 | 34 | 6 | 33 | 4.5 | 7.5 | 4.1 | 52 | 80 | ||||
LMF16UU | 5 | 16 | 28 | 37 | 48 | 37 | 6 | 38 | 4.5 | 7.5 | 4.1 | 79 | 120 | |||||
LMF20UU | 5 | 20 | 0 | 32 | 0 | 42 | 54 | 42 | 8 | 43 | 5.5 | 9 | 5.1 | 0.015 | 0.015 | 90 | 140 | |
LMF25UU | 6 | 25 | 40 | 59 | 0 | 62 | 50 | 8 | 51 | 5.5 | 9 | 5.1 | 100 | 160 | ||||
LMF30UU | 6 | 30 | -0.01 | 45 | -0.016 | 64 | 74 | 58 | 10 | 60 | 6.6 | 11 | 6.1 | 160 | 280 | |||
LMF35UU | 6 | 35 | - | 52 | 0 | 70 | -0.3 | 82 | 64 | 10 | 67 | 6.6 | 11 | 6.1 | 0.02 | 0.02 | 170 | 320 |
LMF40UU | 6 | 40 | 60 | 80 | 96 | 75 | 13 | 78 | 9 | 14 | 8.1 | 220 | 410 | |||||
LMF50UU | 6 | 50 | 0-0.012 | 80 | -0.019 | 100 | 116 | 92 | 13 | 98 | 9 | 14 | 8.1 | 390 | 810 | |||
LMF60UU | 6 | 60 | 0 | 90 | 0 | 110 | 134 | 106 | 18 | 112 | 11 | 17.5 | 10.8 | 0.025 | 0.025 | 480 | 1020 | |
-0.015 | -0.022 |
Company introduce
ChangshaTerry Machinery Co.,Ltd is a leading international trading company. The growing economics and convenient transportation of Changsha benefits the development of Terry Machinery.
Our products are utilized in commercial, industrial and custom application. Terry Machinery is specialized in engineering machinery bearing and vehicle industrial bearing. Our products have been exported over 46 countries.
The goal of Terry Machinery is to provide out customers with widest range of bearing at lowest price, backed with the best service.
Our service
Quick reply
We will reply your inquiry within 12 hours , phone, email and skype/ whatsapp/ wechat prompt reply.
Free samples supply
If you need samples, we can provide free samples of small quantity reassure you do business. If you need large quantity samples, you have to pay the samples charges.
After sale
For after-sales problems , we solved promptly and carefully, to make sure you satisfied.
Customized service
OEM&ODM hydraulic hose fitting available. We can make the production as customers’ drawing or samples. We provide OEM custom packaging service to customers in order to produce the strongest support
FAQ
1.What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
2.How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
3. What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by shipping.
4. Can we design packaging?
Yes. Default is regular packing, and we can make customer's own packing.
5. Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
6. Could you tell me the delivery time of your goods?
3-7 days stock goods and other goods according to the quantity about 3-21 days.
7. Can you give me discount on bearing?
Yes, of course. Pls. send me your Email, you’ll get more
.
Contact information
Attn: Emily
E-mail: emily @ntl-bearing.com
Whatsapp:+8618374976461
Skype: emily-xin
Welcome to enquire for more details!
Company Profile
Changsha Terry Machinery Co., Ltd. is located in Changsha. Our company enjoys convenient transportation and advanced economy.
We have been exporting bearings for 8 years. Our main products are Needle Roller bearings, Cylindrical Roller Bearings, Rod end Bearings, Spherical plain bearings, Track roller Bearings for Guideway, Roller Bearings, Combine Bearings for forklifts, Water Pump Bearings, SNR Auto Bearings and all kinds of Spherical Bearings. We have exported our products to Korea, Iran, Turkey, Bulgaria, Romania, Russia, Italy, Norway, the USA, Canada, etc. We offer OEM service. Our products are applied in many fields.
Our Advantages
Products
Big volume in Stock, No MOQ required
We comply with all the international standards, such as ISO9001 and TS16949 standards.
Personnel
Our sales persons are well trained to accommodate your requests and speak English for your convenience.
Our technicians and engineers have 23 years of Experience in the Bearing Industry.
Service & Quality control
We supply detailed drawings and offer whenever necessary.
We inspect every piece of bearing by ourselves before delivery.
Contact Us
- Changsha Terry Machinery Co., Ltd.
- Contact nameMery Zhou
- Phone86-731-85782665
- Address2512, Yunding Building A, No.526 Mid Shaoshan Rd, Changsha .China Changsha,Hunan
