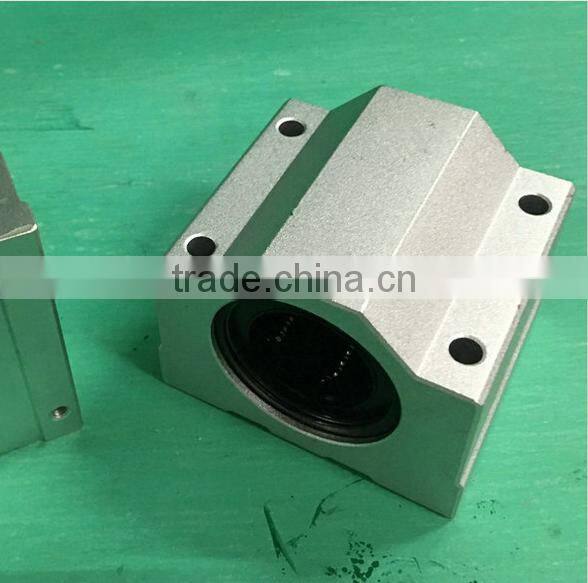

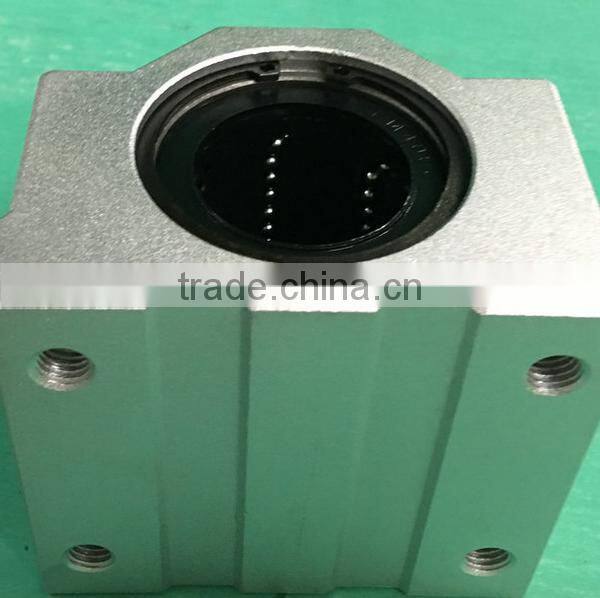

Slide bearing SCE12UU with inner bearing LME12UU
Linear bearing is a low-cost production of linear motion system for unlimited travel in conjunction with the cylinder axis. Since carrying the ball point contact with the shaft, so the use of small loads. With minimal friction ball rotation, which can obtain high-precision smooth movement.Low noise, low friction, high precision, high life.Because of point contact between ball and straight axis, friction small, motion precision is high.
MODEL SIZE
| Standard | Basic load rating | Weight (gf) | Dimensionsmm) | |||
| Designation | Liner Bearing | Dynamic C N | Static Co N | SC...UU | ||
| K | L | |||||
| SC8UU | LM8UU | 260 | 400 | 56 | 18 | 30 |
| SC10UU | LM10UU | 370 | 540 | 90 | 21 | 35 |
| SC12UU | LM12UU | 410 | 590 | 112 | 26 | 36 |
| SC13UU | LM13UU | 500 | 770 | 123 | 26 | 39 |
| SC16UU | LM16UU | 770 | 1170 | 189 | 34 | 44 |
| SC20UU | LM20UU | 860 | 1370 | 237 | 40 | 50 |
| SC25UU | LM25UU | 980 | 1560 | 555 | 50 | 67 |
| SC30UU | LM30UU | 1560 | 2740 | 685 | 58 | 72 |
| SC35UU | LM35UU | 1600 | 3130 | 1100 | 60 | 80 |
| SC40UU | LM40UU | 2150 | 4010 | 1600 | 60 | 90 |
| SC50UU | LM50UU | 3820 | 7930 | 3350 | 80 | 110 |
Application :
Linear motion guide rail and block TBR/SBR Series with smooth serface, little friction,low noise,they are widely used in linear motion system.For example, punch, tool grinding machine,automatic cutting machine, printer, card sorting machine, Food Packing Machine, other sliding parts on industrial machinery.
