Heating Radiator
Usage:
This tube type heating radiator is applicable for water or oil. It is widely used in many industries for drying and other heat exchanging.
Characteristics:
1. This tube type heating radiator adopts carbon steel & aluminum fins.
2. The tube type heating radiator is designed with big heat exchange area as well as big flow of heat medium.
3. Customized services on this heating radiator are provided according to your drawings.
4. We mainly adopt carbon steel and aluminum for tube and fin on this heating radiator. We can also adopt stainless steel, bronze or other materials according to your demands.
Technical parameters:
Dimensions: 1675*1174*280mm
Tubes: Dia.25*2mm seamless tube, material: BG8163-20#

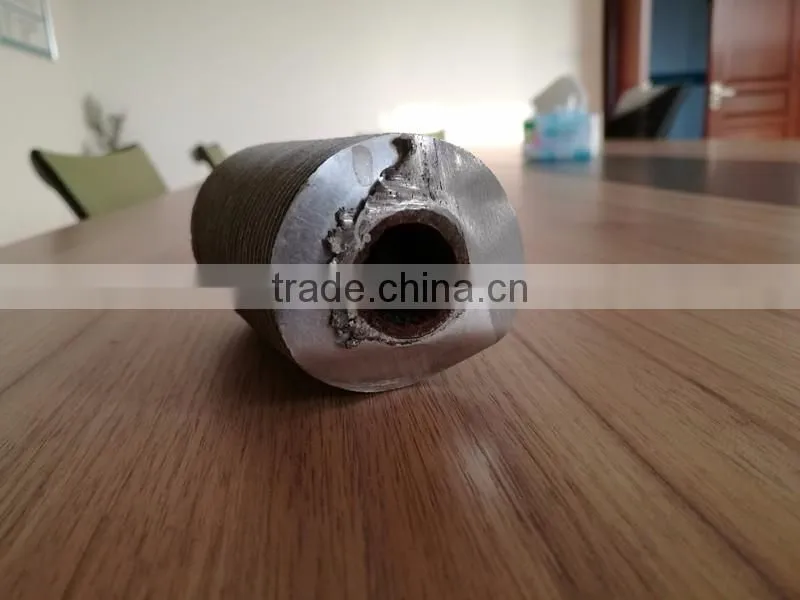

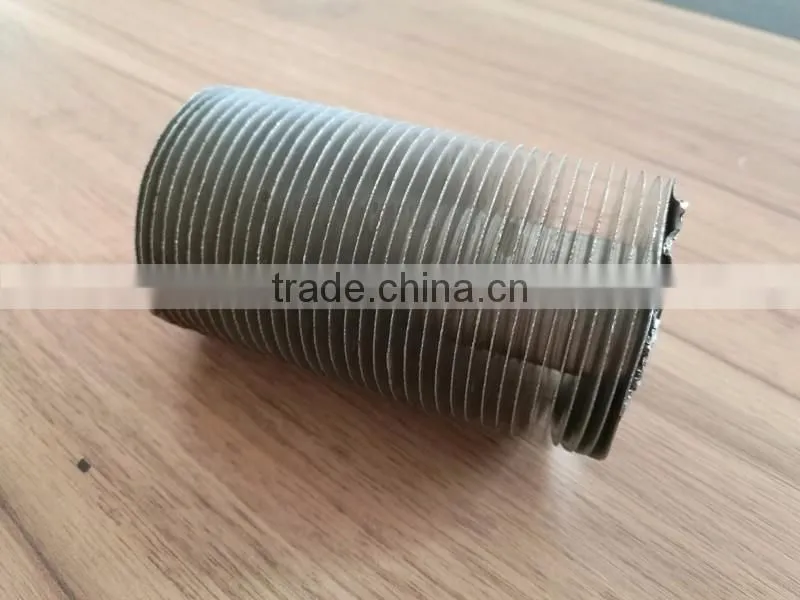

Fins: Aluminum, OD=50mm, distance between fins=2.5mm. Radiating area=1.25m2/m
Tube quantity: 20pcs*4=80pcs
Total radiating area: 150m2/set
Every heat radiator will be finished by silver paint

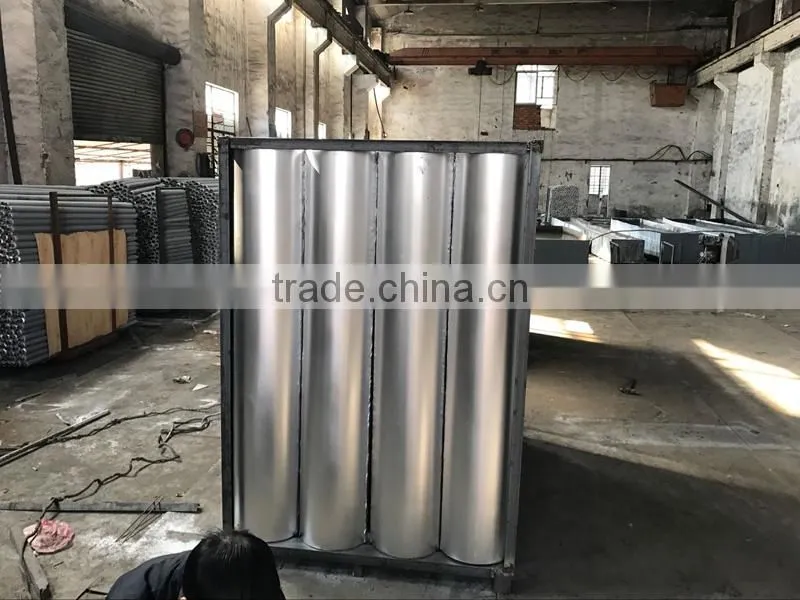

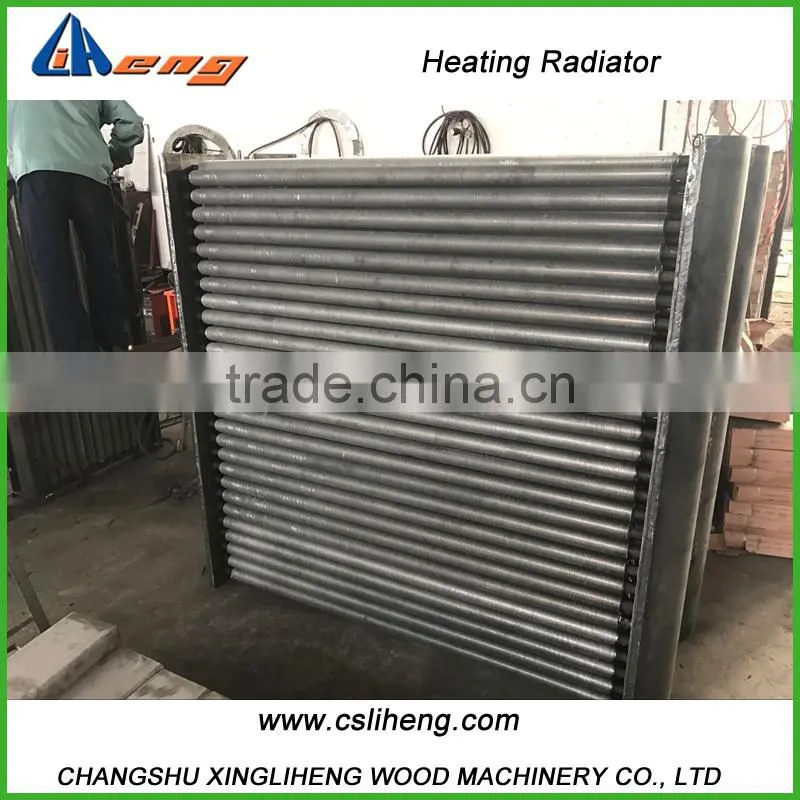

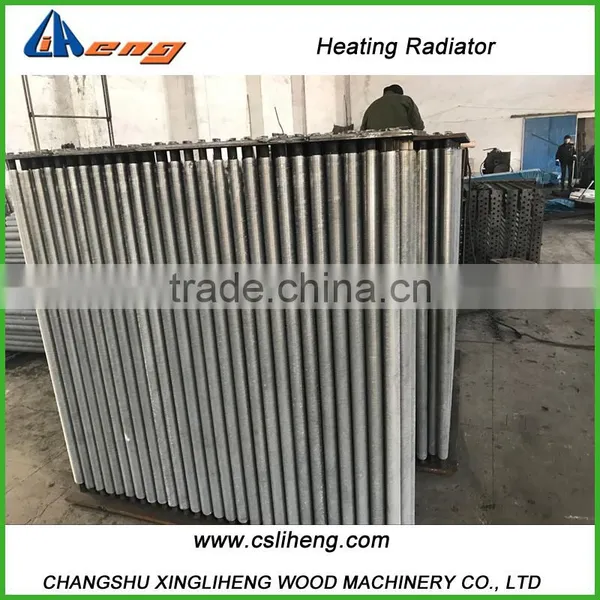

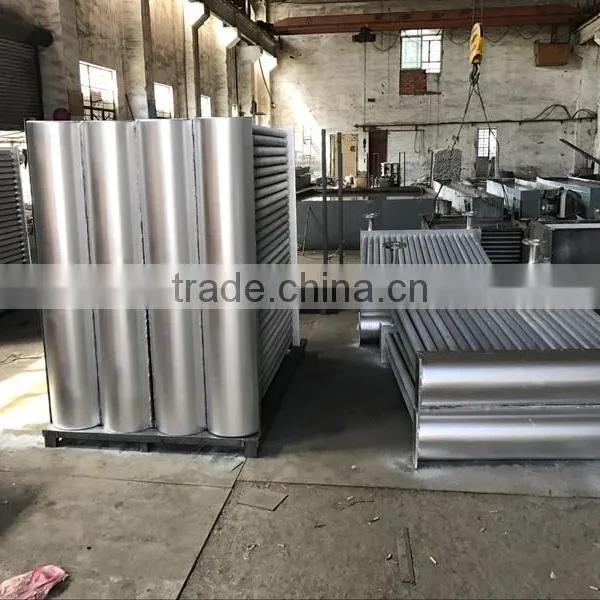

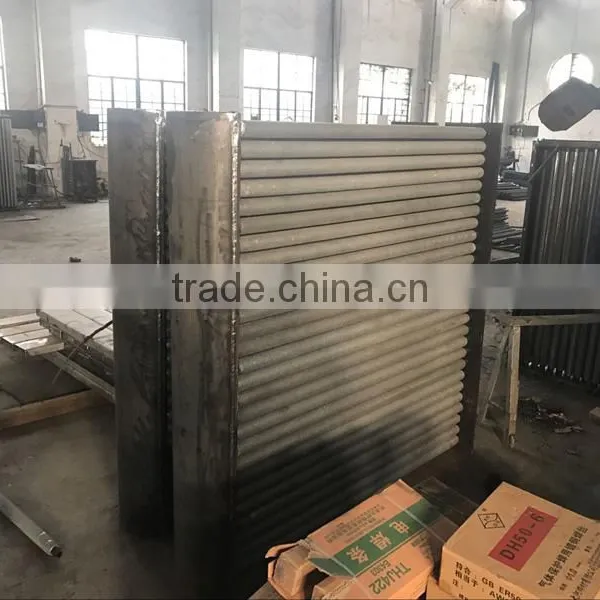

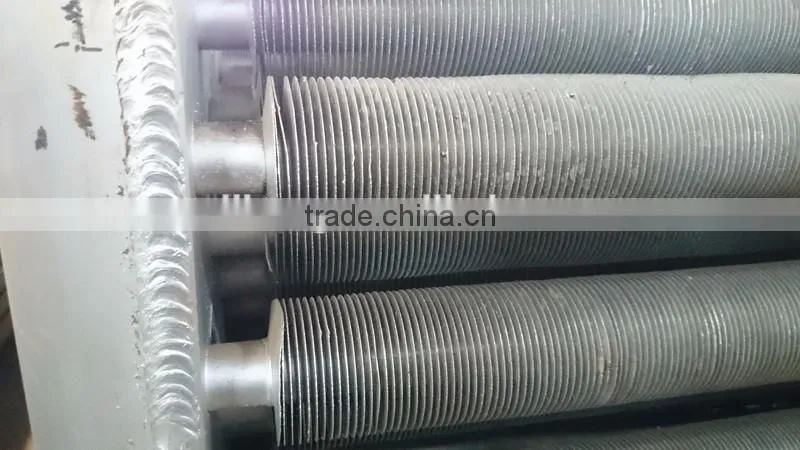

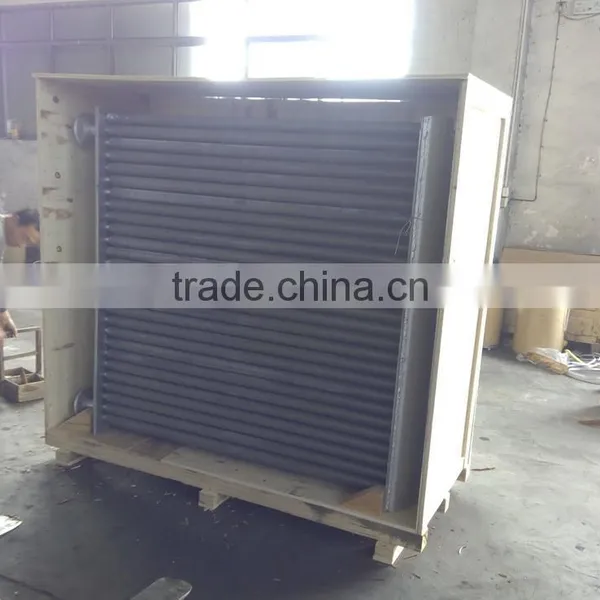

Tube type heating radiator pictures

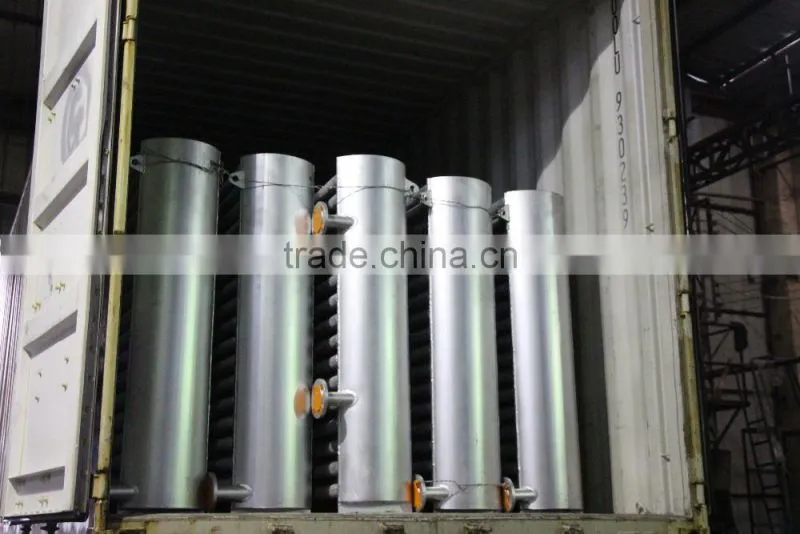

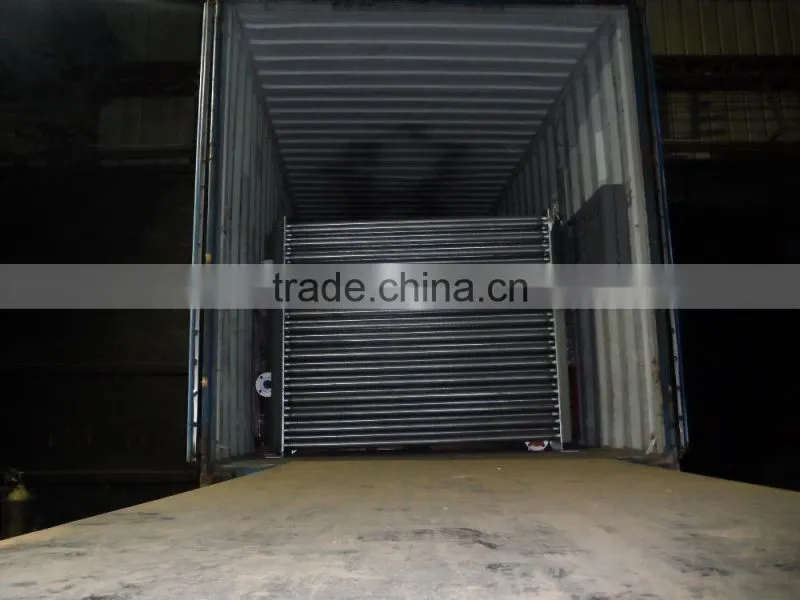

Tube type heat exchanger container loading in our factory
We are one of the first movers in heating radiator industry in China. Clients from Indonesia, Ukraine, Poland, Ghana, Egypt, Vietnam, Sri Lanka, Fiji and so on are using our heating radiators. Please feel free to contact us for more details.
