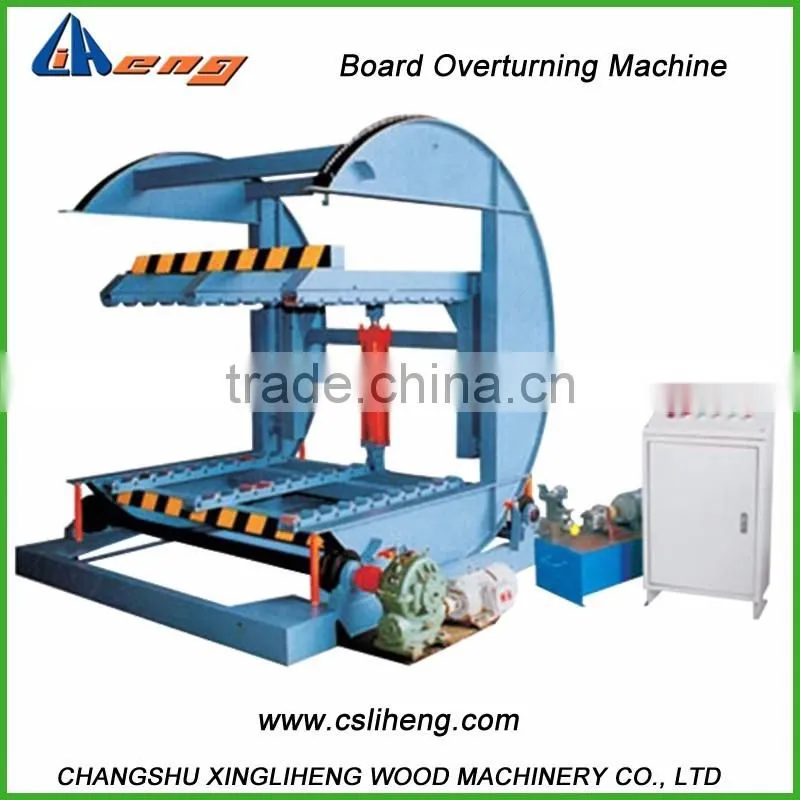

NF-48 Hydraulic Board Overturning Machine
Usage:
This overturning machine is mainly used in the production of plywood and particle board to overturn the plates.
Characteristics:
1. It is new product which saves much and improves the efficiency.
2. The hydraulic cylinder is pressed very steadily and evenly. And it is very easy to control. The pressure can be adjusted;
3. The plate is fed by the rolling bearing without any hurt;
4. The control button and indicator are on the control panel which can be very easily operated.
Technical parameters:
Item | Unit | Parameters |
Dimensions | mm | 2400×2000×2200 |
Weight | T | 2.8 |
Stroke | mm | 500 |
Overturning | Degree | 0~180° |
Hydraulic Station Power | KW | 1.5 |
Overturning Machine | KW | 3 |
Board Overturning Machine Pictures
We have been in this industry for more than 20 years. Rich experiences in manufacturer , ability to export, insalltion, after sales services. This board overturning machine is of top quality in China which is safe in work and easy to operate. Reliable and stable in work makes this board overturning machine be worthy of your investment.
