LJJ901 Plywood Sizer Saw for edge trimming
Usage:
This plywood sizer saw is used to cut plywood into demanded sizes in production. Enjoys the quality of stable working, high efficiency and smooth cross section.
Characteristics:
1. Firm in structure and stable during work by this plywood sizer saw.
2. Very high efficiency by accurate and fast cutting.
Technical parameters:
Item |
Unit |
Parameters |
Sawing Size |
mm |
1830~2440 |
Max. Cutting Thickness |
mm |
20~30 |
Blade Diameter*Nos |
mm*pcs |
Φ305*4 |
Blade Speed |
r/min. |
7000 |
Feeding Speed |
m/min. |
25~70 |
Motors |
Sawing Motor: 5.5KW |
|
Feeding Motor: 4KW | ||
Lifting Motor: 0.75KW | ||
Lengthways Feeding Speed |
m/min. |
70 |
Lengthways Output Speed |
m/min. |
30~100 |
Transversal Feeding Speed |
m/min. |
21~73 |
Transversal Output Speed |
m/min. |
25~85 |

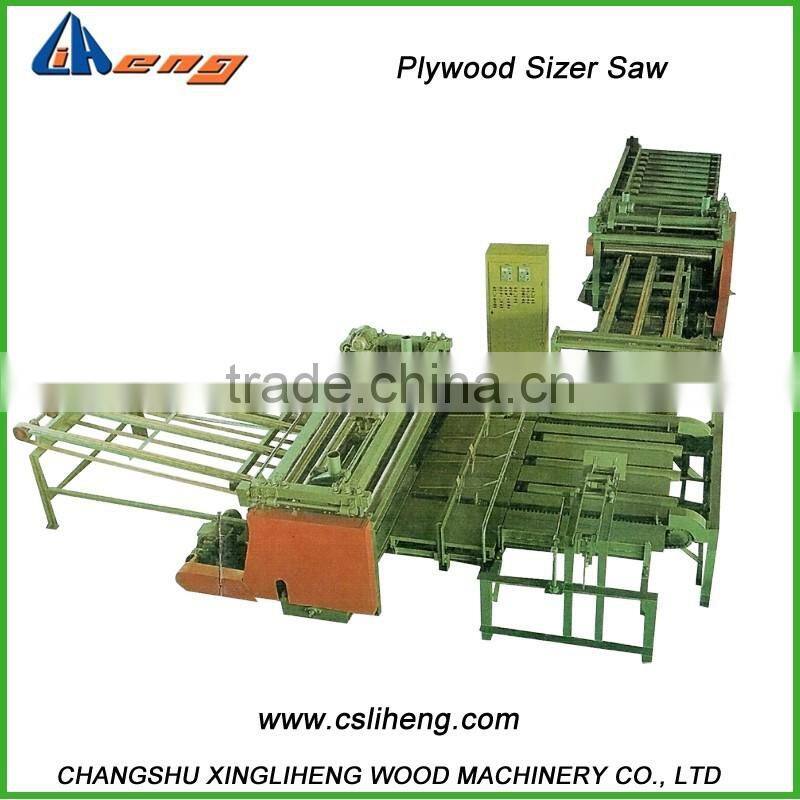

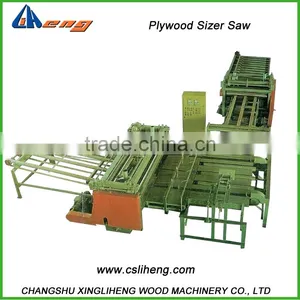

Plywood sizer saw picture
Plywood sizer saw factory views
