Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | XLH |
Model Number: | Refer air heater | Structure: | Tube Heat Exchanger | Liquid Flow Rate: | 2.5m/s |
Maximum Working Pressure: | 3.0MPa | Voltage: | 220V/380V | Weight: | 100kg |
Dimension(L*W*H): | Customized | Power(W): | 0.5~100 Kw | Certification: | Other, NONE |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Air Heater
Usage:
This tube type air heater is applicable for water or oil. It is widely used in many industries for drying and other heat exchanging.
Characteristics:
1. This tube type air heater adopts carbon steel & aluminum fins.
2. The tube type air heater is designed with big heat exchange area as well as big flow of heat medium.
3. Customized services on this air heater are provided according to your drawings.
4. We mainly adopt carbon steel and aluminum for tube and fin on this air heater. We can also adopt stainless steel, bronze or other materials according to your demands.
Technical parameters:
Dimensions: 1675*1174*280mm
Tubes: Dia.25*2mm seamless tube, material: BG8163-20#
Fins: Aluminum, OD=50mm, distance between fins=2.5mm. Radiating area=1.25m2/m
Tube quantity: 20pcs*4=80pcs
Total radiating area: 150m2/set
Every air heater will be finished by silver paint

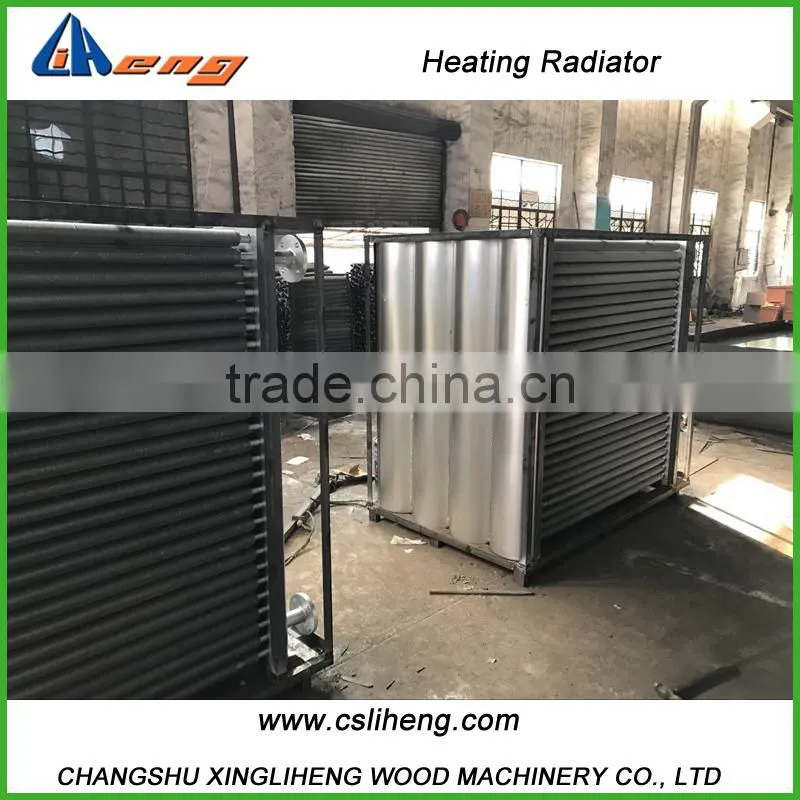

Tube type air heater pictures
Tube type air heater container loading in our factory
We are one of the first movers in air heater industry in China. Clients from Indonesia, Ukraine, Poland, Ghana, Egypt, Vietnam, Sri Lanka, Fiji and so on are using our air heater. Please feel free to contact us for more details.
