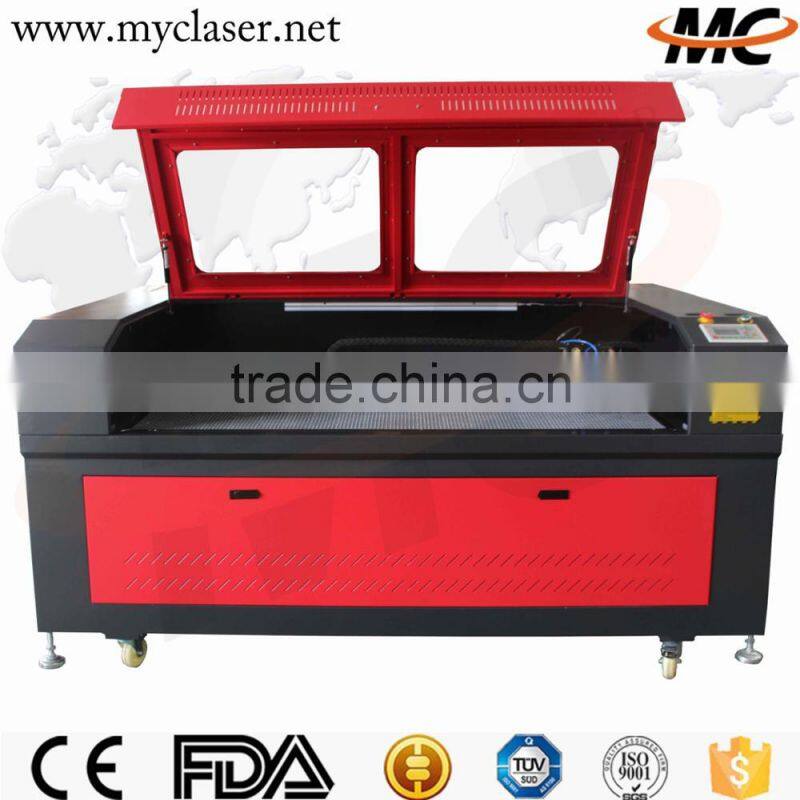

MC 1610 plywood / acrylic laser cutting equipment
- 500 Set / Sets per Month
- any port in china
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Laser Type: | CO2 | Applicable Material: | Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood |
Cutting Thickness: | due to materials | Cutting Area: | 1600*1000mm | Cutting Speed: | 0-40000mm/min |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Control Software: | laser cut |
Graphic Format Supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | Place of Origin: | Shandong, China | Brand Name: | MC |
Model Number: | MC1610 | Certification: | CCC, CE, GS, ISO, SGS, UL, Other, CCC, CE, GS, ISO, SGS, UL, FDA | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
MC 1610 laser cutting engraving machine best discount
1. Details of cutting machine picture frame wood cutter :
More specialize in manufacturing and exporting laser machine and cnc router for 7 years. We can offer various of laser cutting &engraving machines for both metal and non metal materials.
2. advantages of cutting machine picture frame wood cutter :.
1) Our three unique protection functions, i.e. anti-interference function, water-protective function and power cut-off function ensure longer working life, safety and effectiveness.
2) Exhausting, absorbing and assistant blowing systems solve the problem that troubles the laser equipments
manufacturing industry for years, extending the life of the laser tube.
3) This machine uses USB port to transmit data, equipped with large capacity internal memory, improving working speed and efficiency greatly.
3.Technical Parameter of cutting machine picture frame wood cutter :
Model | MC1610 | Option |
Working area | 1600*1000 mm | According to demands |
Laser power | 40w/50w/60w/80w/100w/130w/150w/180w for option | |
Laser type | CO2 Sealed laser tube , 10.6μm | |
Cooling type | Water cooling | |
Engraving speed | 0-60000mm/min | |
Cutting speed | 0-40000mm/min | |
Laser output control | 0-100% set by software | |
Min. engraving size | English letter:1.0mm*1.0mm | |
Highest scanning precision | 4000DPI | |
Locating accuracy | ≤+0.01mm | |
Controlling software: | DSP control system | |
Graphic format supported | DST PLT BMP DXF DWG AI LAS,etc | |
Compatible software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. | |
Drive system | High-precision 3-phase stepper motor | |
Auxiliary equipment | Exhaust fan, air exhaust pipe/water pump/water chiller | |
Power supply | AC110V/220V±10%,50HZ/60HZ | |
Working environment | Temperature:0-45℃,Humidity 5-95%(No condensate water) | |
Option configuration | up&down table, honeycomb worktable,rotary device , red dot position system,auto-focus device |
4. cutting machine picture frame wood cutter samples:
5.Quaity text of cutting machine picture frame wood cutter :
6.Our service of laser carving machine :
1. 24 months for machine,and 8 months for laser tube long life span of laser tube:1500-3000 hours.
2. 24 hours technical support by e-mail, calling or door-to-door service
3 .English software, user manual and detailed Videos CD
4.International quality certificate:CE,FDA,SGS,ISO9001:2008
5. professional laser machine supplier with 10 years experiences in China
6.We offer training in our factory.Welcome to our factory . Sample provided
7.Packaging and Shipping of laser carving machine :
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea or by train. We can transport machine by boat or by training, according to your req
Our company :
Jinan Maidun CNC Equipment Co., Ltd. is well-known manufacturer of Laser machines in China, located in Jinan city that is famous for its fountains.
We continually devote to developing, manufacturing and selling of laser engraving machine, laser cutting machine, cloth laser cutting machine, laser marking machine, Advertising laser engraving machine, woodworking laser machine, stone laser machine, glass laser machine, etc.
