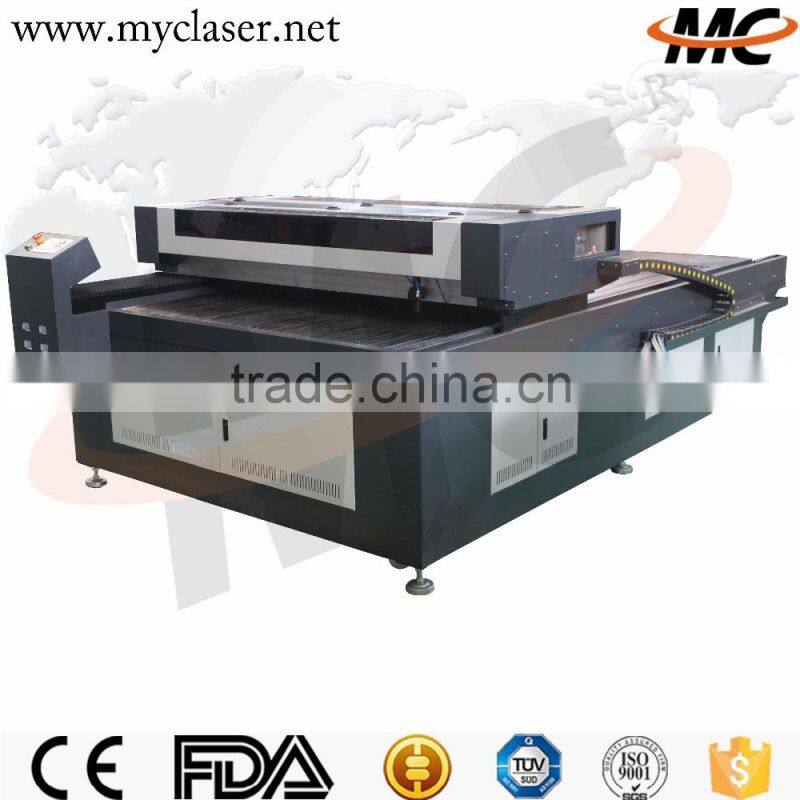

MC1325 600W CO2 wood acrylic laser cutting machine with factory price
Features of 1325 laser cutting machine :
1) Advanced RUIDA Control System .
2) Original Imported HIWIN Straight Linear Guide Rail X. Y axis Makes the Machine Running on a high Speed and Precision.
3) Imported Reflected Lens and focus lens in the Optical System Can greatly Reduce the heat loss
4) High Quality CO2 Glass Sealed Laser tube Provides Strong Stable Laser beam mode and Longer Service Life.
5) The Laser tube adopts Compulsive Water Cooling System, Water Pump Can Control the temperature Automatically,
6) High Compatibility, Applicable for the Models Like PLT,BMP,DXF,DST,etc.
7) LEETRO Control Panel in English.
8) Equipped with Hydraulic protection,Exhaust dust and smoke device,the huff protection.
9) Optional Up & down adjustable worktable can Engrave and Cut Different Height Materials .
Technical parameter
MC1325 |
|
Working Area |
1300*2500mm |
Laser Power |
RECI 80W/100W/150W OR SLW300W/400W/600W |
Laser Type |
CO2 Sealed Laser Tube , 10.6μm |
Drive System |
Leadshine mix servo Motor |
Transmission |
HIWIN Guild and Fulong belt. |
Cooling Type |
Water Cooling |
Cooling tools |
CW6000 Chiller |
Engraving Speed |
0-600mm/S |
Cutting Speed |
0-360mm/S |
Laser Output Control |
0-100% Set by Software |
Min. Engraving Size |
Chinese: 2.0mm*2.0mm,English Letter:1.0mm*1.0mm |
Highest Scanning Precision |
2500DPI |
Locating Accuracy |
≤±0.01mm |
Controlling Software |
DSP Control System |
Graphic Format Supported |
DST. PLT. BMP. DXF. DWG .AI. LAS,etc |
Compatible Software |
CORELDRAW,PHOTOSHOP, AUTOCAD, TAJIMA ,etc. |
Color Separation |
Yes |
Auxiliary Equipment |
Exhaust Fan ,Air pump,water pump,tool box |
Power Supply |
AC110V/220V+10%,50HZ/60HZ |
Working Environment |
Temperature:0-45C,Humidity 5-95%(No Condensate Water) |
Features
Application
Arts and crafts industry: Paper cutting, wood, bamboo, leather, shell, ivory and other materials engraving and cutting.
Model industry: Building models, aviation and maritime models, wooden toys engraving cutting etc;
Leather garment processing industry: Leather, fabric carve or hollow out patterns .
Advertising industry: Acrylic lor board and other advertising materials engraving and cutting.
Decoration industries: Electrical and electronic industry materials’ engraving and cutting.
Packaging industry: Rubber printing plate engraving cutting, bilayer plate, knife model cutter board etc.

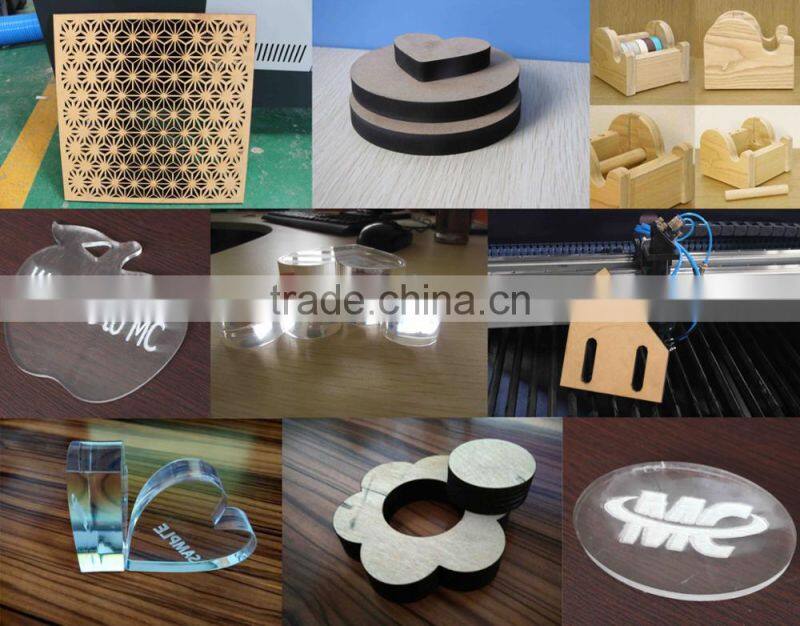

Some samples:
About our company
Jinan Maidun CNC Equipment Co., Ltd., since 2002, specializing in producing CNC laser machinery, and has rich experience! Maidun CNC is comprehensive in the production, design, manufacturing, trade and service of CNC machine enterprises. Maidun CNC provide quality and efficient CNC machines worldwide. With strength solid financial and university staff, "Brand Maichuang"(MC) success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment, especially the development and expansion of production facilities occupy China's forefront.
Welcome to inquiry details
