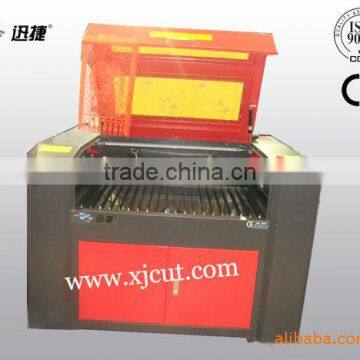

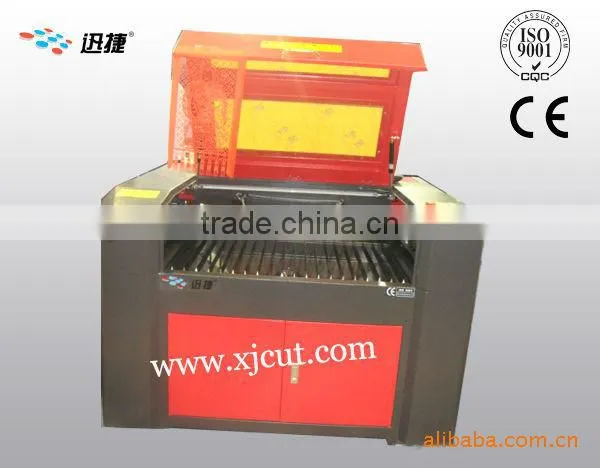

XJ-6090 apparel laser cutting machinery CE

FOB Price

USD $1,500 - $3,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	CO2
Engraving Area	600*900mm	Engraving Speed	1000mm/s
CNC or Not	Yes	Cooling Mode	Water Cooling
Applicable Material	Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood	Graphic Format Supported	AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Place of Origin	Shandong, China	Brand Name	XYZ-TECH
Model Number	6090	Dimension(LWH)	136010601020mm
Certification	CE, ISO	After-sales Service Provided	Overseas service center available

apparel laser cutting machinery CE
1)DSP control system
2)easy to move
3)Liquid crystal display panel
4)with CE

XJ-6090 apparel laser cutting machinery CE

Features :

1. Configure high power and quality laser tube, can work over 10000 hours.

2. DSP control system, rich function, can approach engraving on plane, gradient engraving by 360 degrees, cutting and drilling holes etc.

3. With function of restoring from power off, continuation function from break point.

4. Transmit files directly from Corel draw and Auto CAD, Photoshop, Tajima directly.

5. Adopt imported linear rail, high precision.

6. LCD screen monitor and USB interface support offline working from pen driver.

Technical Parameters :

	Model	XJ-6090
1	Working area	600*900mm
2	Laser power	60w/80w
3	Engraving speed	0–24000 mm/min
4	Reposition accuracy	±0.1mm
5	Working voltage	AC110- 220V±10%,50-60Hz
6	Consuming power	<1,000W
7	Working temperature	0 - 45°C
8	Working humidity	5 - 95%
9	Minimum letter size	English :1 x 1mm Chinese:2 x 2mm
10	Supported file format	BMP, HPGL, PLT, DST, DXP, and AI
11	Driving system	Stepper motors
12	Laser tube cooling type	Water-cooling and protection system
13	Other auxiliary equipment	Exhaust-fans and air-exhaust pipe
14	Compatible software	CorelDraw AutoCAD Photoshop
15	Laser tube type	Sealed CO2 glass laser tube:
16	N.W/G.W	320kg/400kg
17	Packing Dimension	210015001200mm
18	Optional parts	1.Motorized up and down worktable
		2.Rotary attachment with roller/clip
		3 Water Chiller
		4 Red dot pointer
		5.Auto focus
19	Consumable parts(Recommended)	1.Extra laser tube
19	Consumable parts(Recommended)	2.Extra 1 lens and 3 mirrors
All parameters above subject to change without prior notice

Applications :

This kind laser engraving machine is suitable

for advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging,

paper industry.

Guarantee&Aftersales service:

guarantee for one year

24 hour technical support by email or calling

user friendly english manual and Video CD for manchine using and maintaining

For more informations, please contact us directly !
