Specifications
buy acrylic laser cutting machine with CE1)DSP control system
2)easy to move
3)Liquid crystal display panel
4)with CE
buy factory laser cutting machine in china with CE
Features :
1. Configure high power and quality laser tube, can work over 10000 hours.
2. DSP control system, rich function, can approach engraving on plane, gradient engraving by 360 degrees, cutting and drilling holes etc.
3. With function of restoring from power off, continuation function from break point.
4. Transmit files directly from Corel draw and Auto CAD, Photoshop, Tajima directly.
5. Adopt imported linear rail, high precision.
6. LCD screen monitor and USB interface support offline working from pen driver.
Technical Parameters :
|

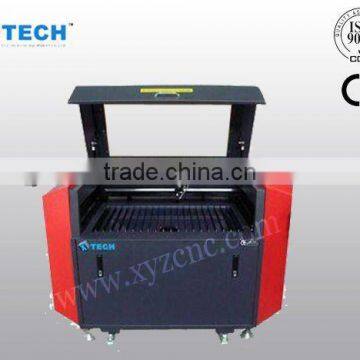

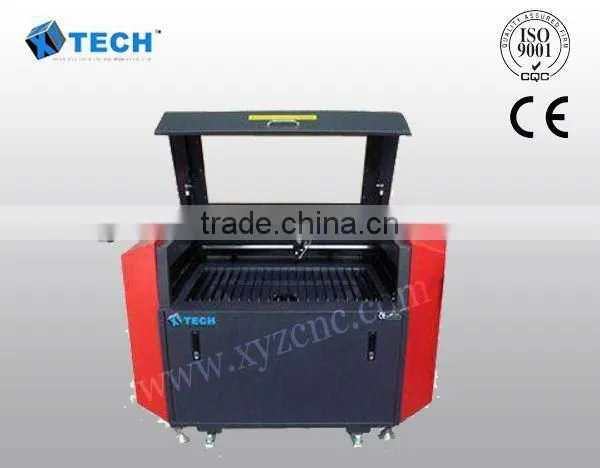

Model |
XJ-6090 |
1 |
Working area |
600*900mm |
2 |
Laser power |
60w/80w |
3 |
Engraving speed |
0–24000 mm/min |
4 |
Reposition accuracy |
±0.1mm |
5 |
Working voltage |
AC110- 220V±10%,50-60Hz |
6 |
Consuming power |
<1,000W |
7 |
Working temperature |
0 - 45°C |
8 |
Working humidity |
5 - 95% |
9 |
Minimum letter size |
English :1 x 1mm Chinese:2 x 2mm |
10 |
Supported file format |
BMP, HPGL, PLT, DST, DXP, and AI |
11 |
Driving system |
Stepper motors |
12 |
Laser tube cooling type |
Water-cooling and protection system |
13 |
Other auxiliary equipment |
Exhaust-fans and air-exhaust pipe |
14 |
Compatible software |
CorelDraw AutoCAD Photoshop |
15 |
Laser tube type |
Sealed CO2 glass laser tube: |
16 |
N.W/G.W |
320kg/400kg |
17 |
Packing Dimension |
2100*1500*1200mm |
18 |

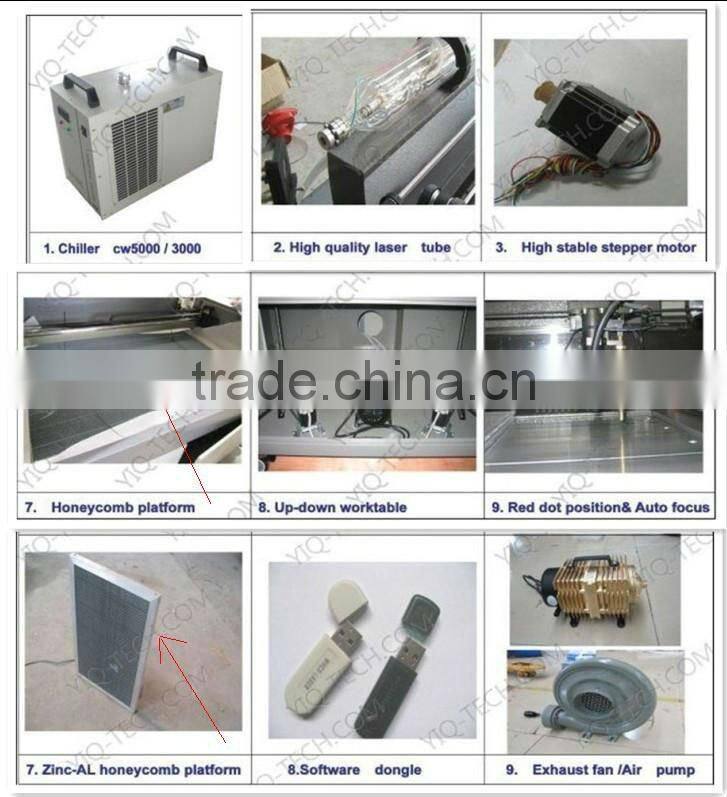

Optional parts |
1.Motorized up and down worktable |
2.Rotary attachment with roller/clip | ||
3 Water Chiller | ||
4 Red dot pointer | ||
5.Auto focus | ||
19 |
Consumable parts(Recommended) |
1.Extra laser tube |
2.Extra 1 lens and 3 mirrors | ||
All parameters above subject to change without prior notice | ||
Applications :
This kind laser engraving machine is suitable
for advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging,
paper industry.
Guarantee&Aftersales service:
guarantee for one year |
24 hour technical support by email or calling |
user friendly english manual and Video CD for manchine using and maintaining |
sample

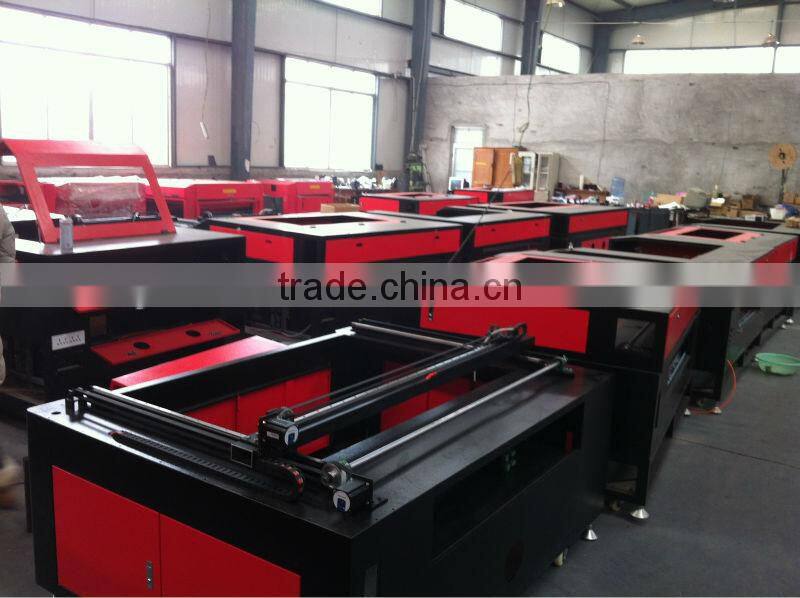

Factory tour
spare parts
For more informations, please contact us directly !
