Specifications
pcb drilling machine1.Rotary CNC Router machine
2.Professional rotary engraving
3.Rotary clamp fir 3D engraving

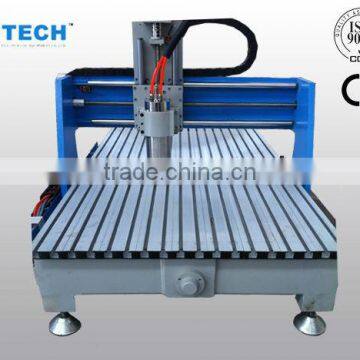

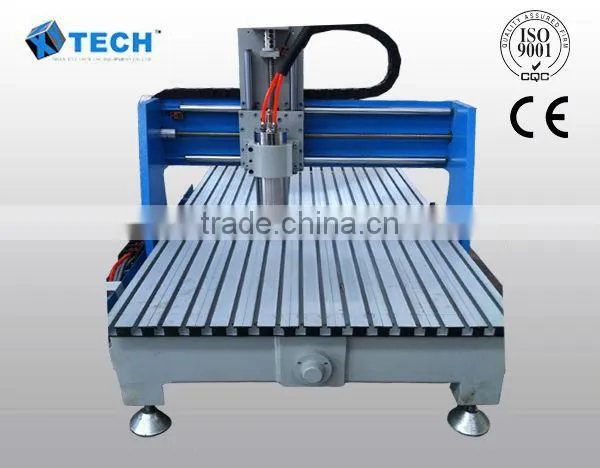

pcb drilling machine 600x900mm
Place of Origin Shandong, China (Mainland)
1. Technical parameter:
number | Description | parameter |
1 | XYZ working area | 600*900*80mm |
2 | Table size | 740*1120mm |
3 | XYZ travel positioning accuracy | ±0.05mm |
4 | XYZ repositioning positioning accuracy | ±0.05mm |
5 | Gantry | Cast-iron |
6 | lathe structure | Casting iron |
7 | drive system X-Y axis | Ball screw |
8 | drive system Z axis | Ball screw |
9 | Spindle power | 1.5KW |
10 | Drive system | China YAKO |
11 | Max velocity | 8m/min |
12 | Max working speed | 6m/min |
13 | Spindle speed | 0-60000rmp |
14 | work mode | Stepper |
15 | Working voltage | AC220V |
16 | Command language | G code |
18 | Operating system | Ncstudio(weihong) |
20 | X-Y resolution | 0.025mm |
21 | Software environment | Wentai type3 artcam |
22 | Running environment | Temperature:0-45°C |
23 | Packing size | 1550*1140*1450mm |
24 | Net weight | 100kg |
25 | Gross weight | 130kg |
2.Application:

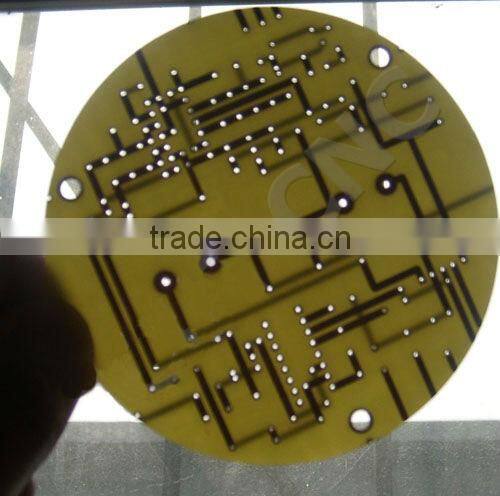

can work with MDF board ,double-color board ,PCB board ,copper, iron, plastic and wooden materials of stone and metal processing industries

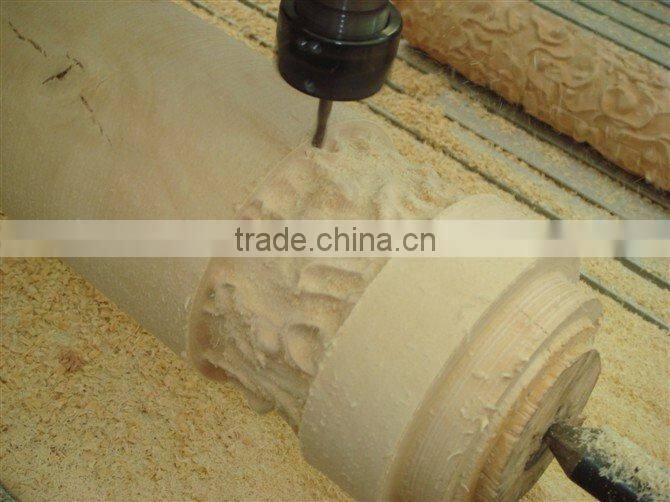

Can make relievo, shadow carving.
3.Guarantee for one year
24-hour technical support by email or calling
User-friendly English manual for machine using and maintaining.
