Specifications

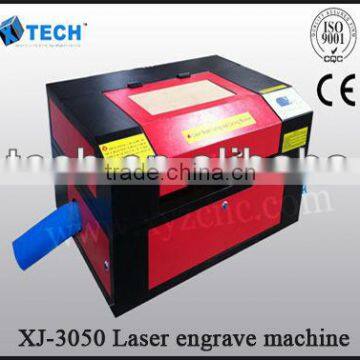

Laser Cutting and Engraving Machine for Wood MDF Acrylic 1.300*5002.DSP control system,stepper motor
3.High speed driver
High-speed Mini Laser Engraving Cutting Machine 300x500mm Features:
1.300*500 working area.
2.Configure higher power laser tube.
3.DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc..
4.Owns functions of restoring from power off, continuation on break point.
5.Transmit files directly in CorelDraw, AutoCAD etc.
6.Adopt international linear rail, more precision.
Parameters:
Model | XJ3050 |
Working area | 300mm*500mm |
Laser power | 40w(50w/60w optional) |
Laser type | Co2 laser tube |
Resetting positioning accuracy | ±0.01mm |
Whole machine size | 1020* 950* 1040mm |
Engraving speed | 1200mm/s |
Cutting speed | 500mm/s |
Cutting thickness | 0-25mm acrylic (others determined by materials) |
Resolution | 1000dpi |
Position system | Red dot |
Interface | USB |
Driving mode | stepper motor |
Cooling mode | Circulation water cooling |
Working voltage | 110-220V, 50 - 60Hz |
Operating temperature | 0-45C |
Operating humidity | 5-95% |
Driving system | stepper |
Option | Up and down table, rotary attachment |
Rotary attachment for column materials | |
Net weight | 150kg |
Applicable materials:
Nonmetal materials such as double color board, Plexiglas, glass, acrylic, bamboo and wood, rubber, marble, granite and tiles, leather, cloth etc.
Applicable industry:
Billboards, artistic gifts, crystal ornaments, papercut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry.
Guarantee&Aftersales service:
| guarantee for one year. | |
| 24 hour technical support by email or calling . | |
| user friendly English manual and Video CD for machine using and maintaining. |

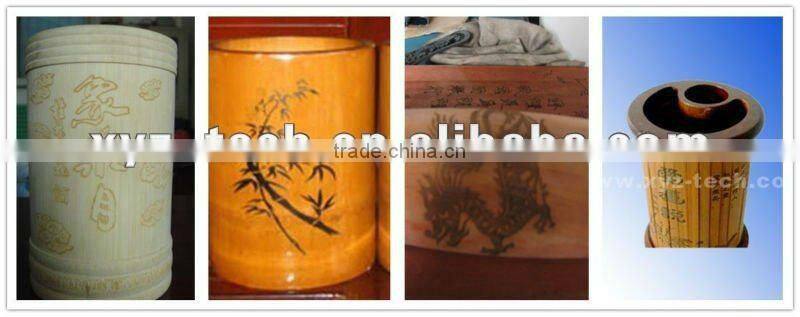

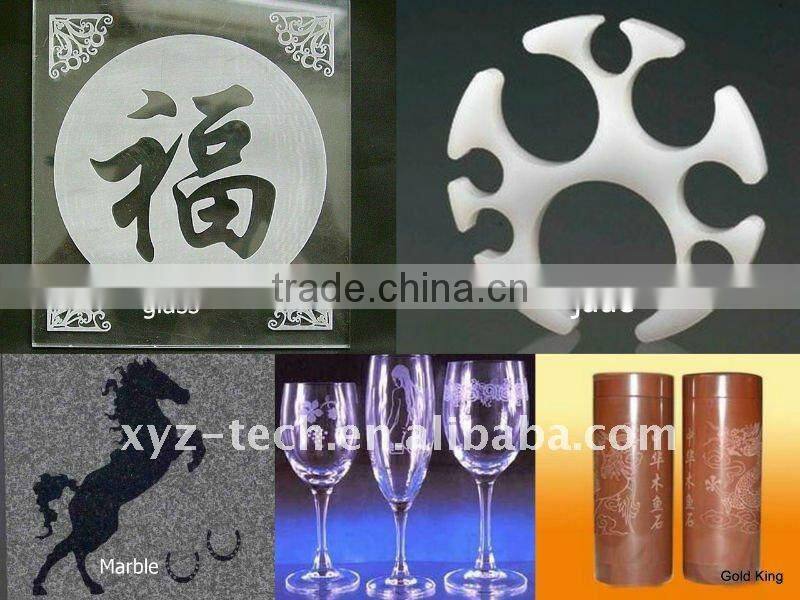

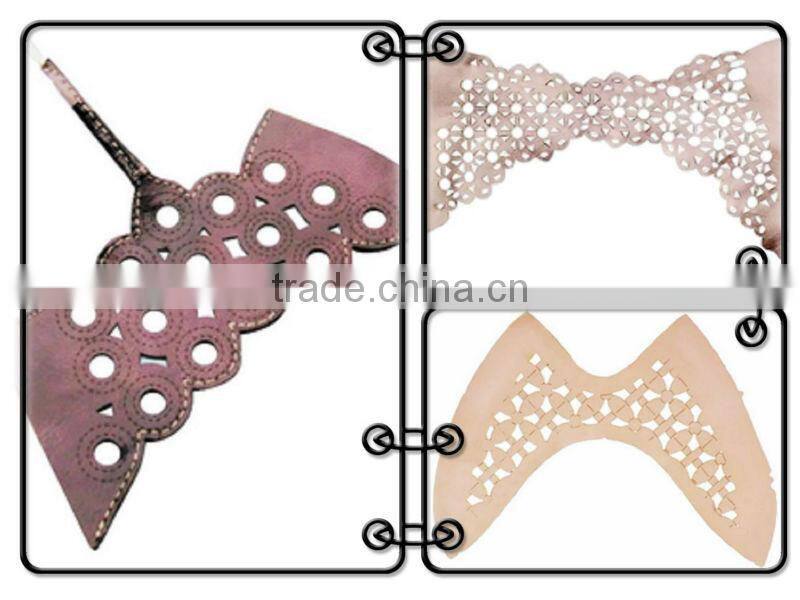

Samples:
Offer follow speed up your progress:
1.What kind of material do you want to process?
2.What is the dimension of your working material?
Based on the above analysis, we will recommend the most suitable machine and best solution for you.
Our company:Jinan XYZ-Tech CNC Equipment Co., Ltd
We have always been devoted to the research and manufacture of Laser Engraving machine ,Laesr cutting machine ,CNC Router. We have R & D Production Department, Quality Control Department, and Sales & Service Department.

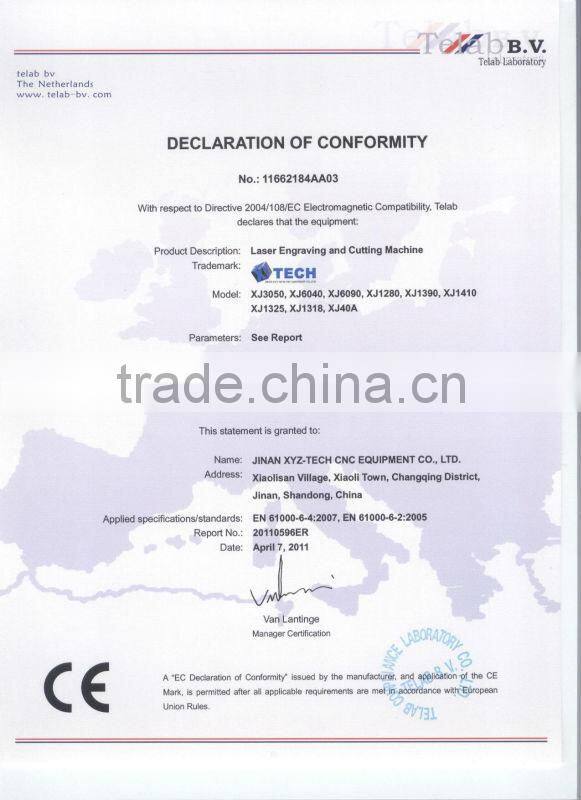

Our enterprise license: Our products got the CE certificate. We can offer you high quality products with the competitive price.
Package:
Welcome to visit our factory. We can show you our best laser machine and
hope to conclude some business with you.
Please contact me if you have any need or question
